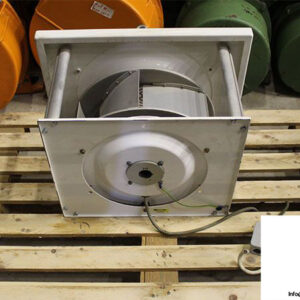

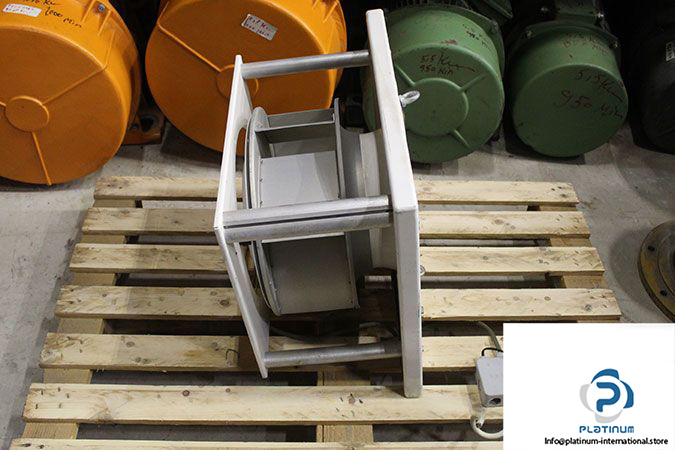

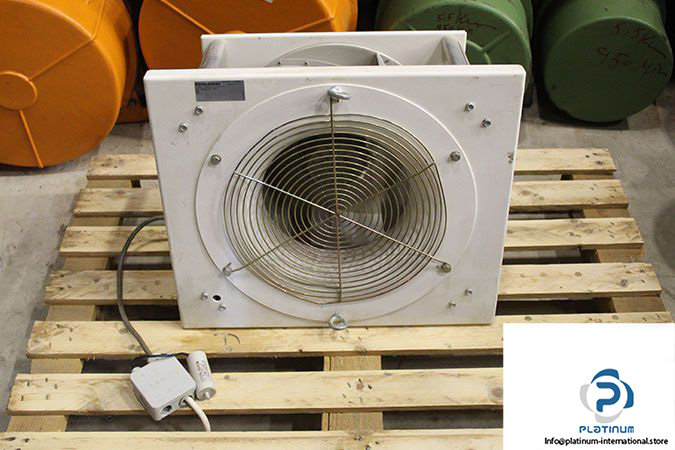

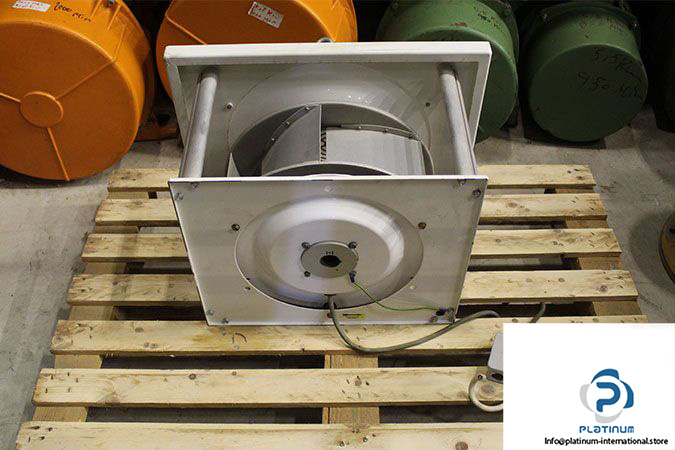

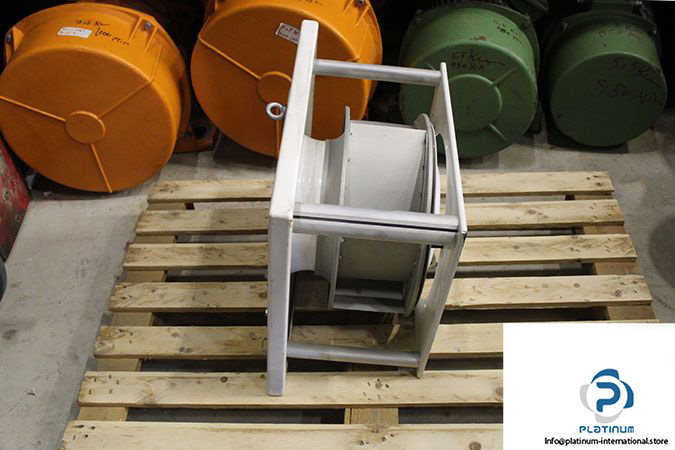

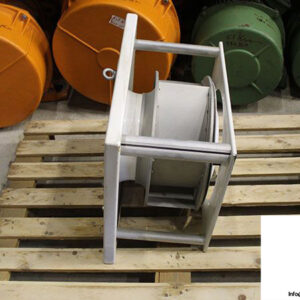

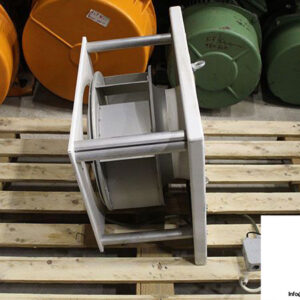

Manufacturer: Ziehl-Abegg

Type: Centrifugal Fans

Model: GR40M-4EK.4F.1R

Applications:

Duct, Tube and Roof Fans, Air Conditioning Units, Heat Pumps, Cleanrooms, And for Cooling and Ventilation Purposes

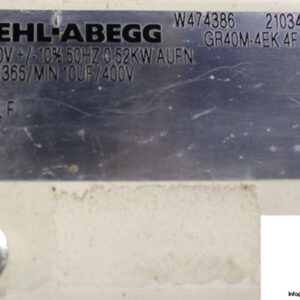

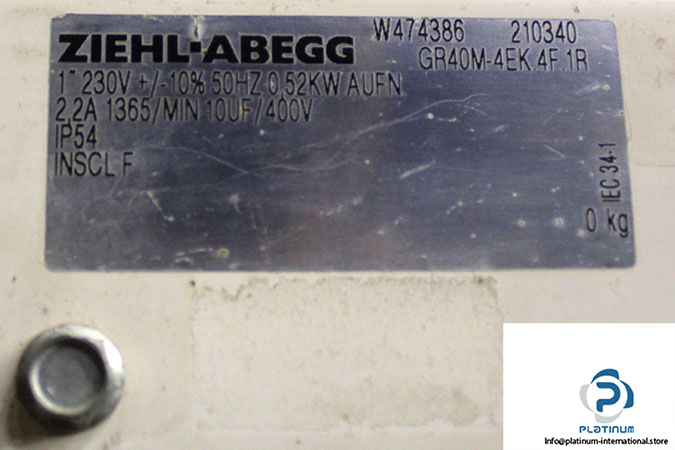

Motor Size: MK106

Phase: 1~

Rated Voltage [V]: 230 ± 10%

Rated Current [A]: 2.2

Power Input [kW]: 0.52

Frequency [Hz]: 50

Rated Speed [min^-1]: 1365

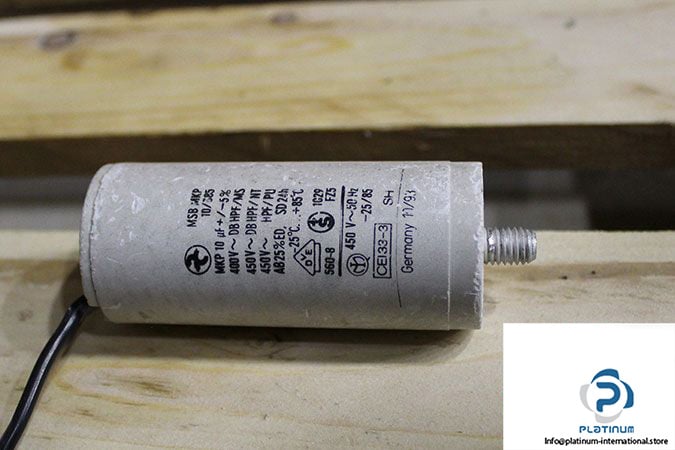

Capacity [UF]: 10/400V

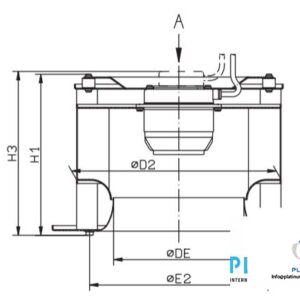

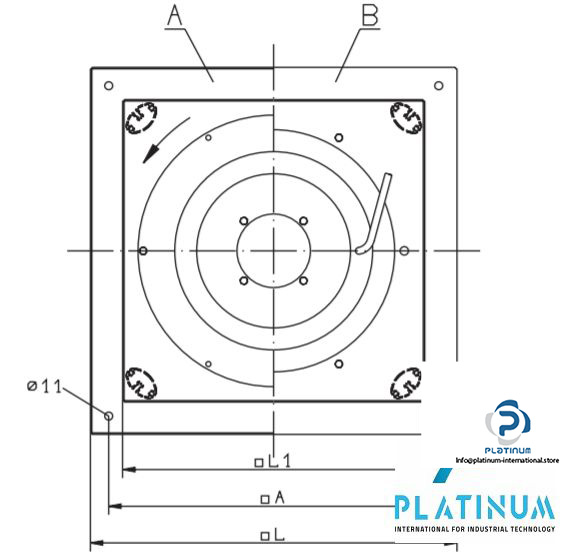

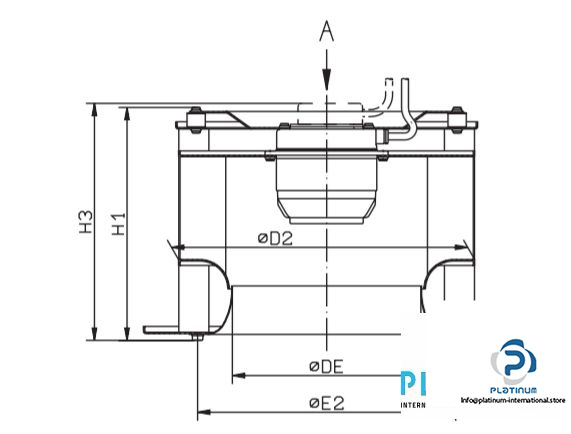

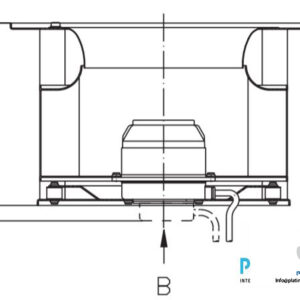

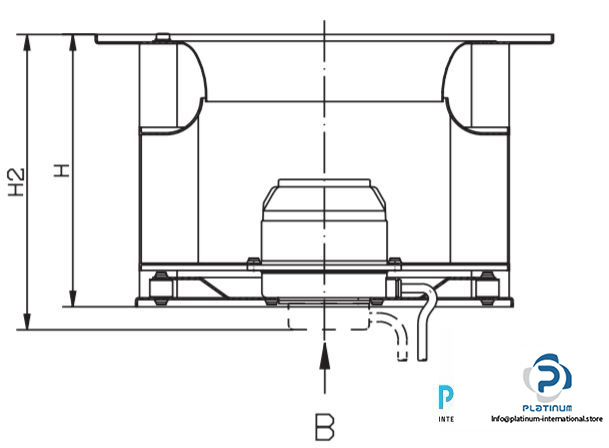

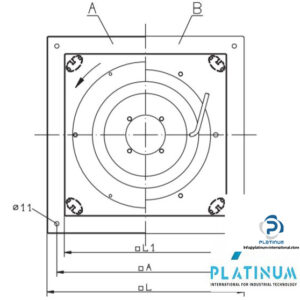

Fan Dimensions:

L: 500 mm

A: 450 mm

L1: 412 mm

H: 309 mm

H1: 330 mm

H2: 335 mm

H3: 336 mm

E2: 438 mm

D2: 404 mm

DE: 245 mm

Protection Class [IP]: 54

Insulation Class: F

Weight [kg]: 22.4
