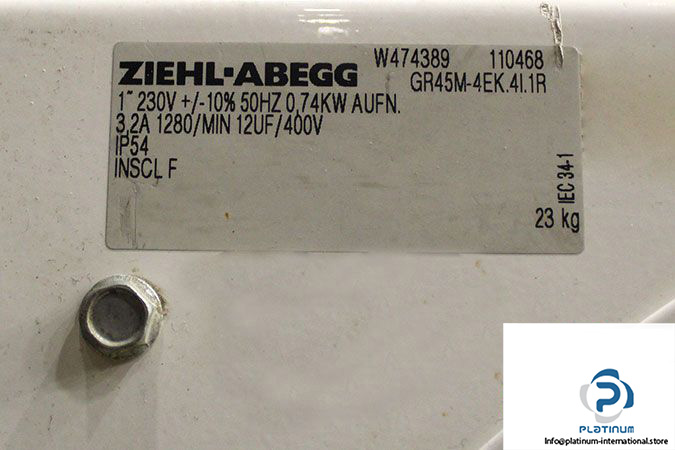

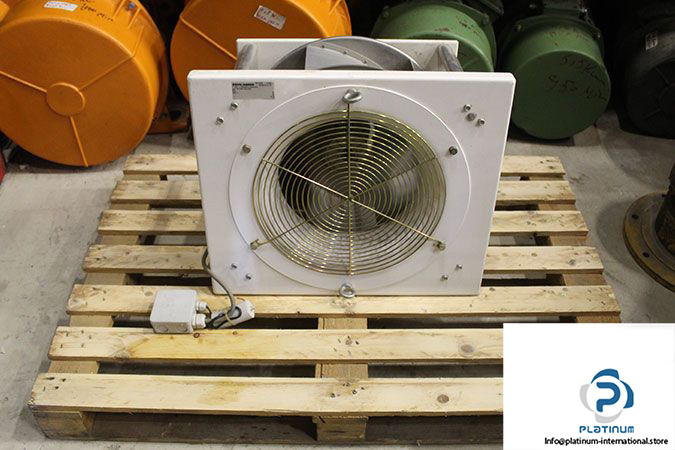

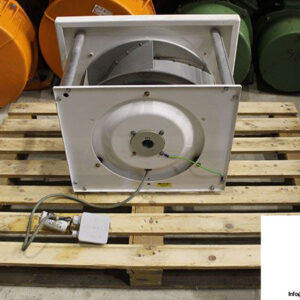

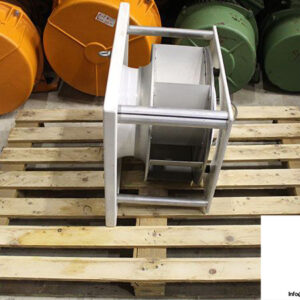

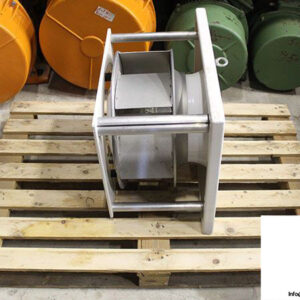

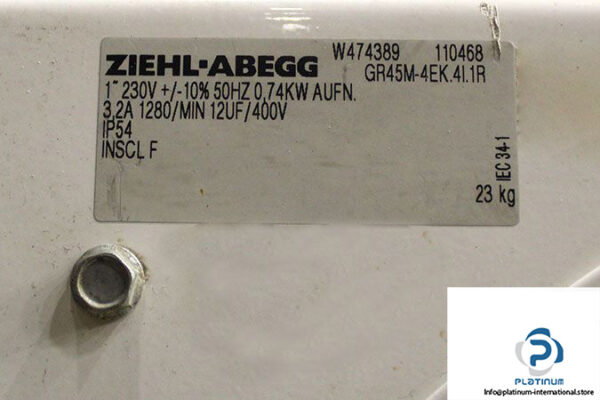

Manufacturer: Ziehl-Abegg

Type: Centrifugal Fans

Model: GR45M-4EK.4I.1R

Applications:

Duct, Tube and Roof Fans, Air Conditioning Units, Heat Pumps, Cleanrooms, And for Cooling and Ventilation Purposes

Motor Size: MK106

Phase: 1~

Rated Voltage [V]: 230 ± 10%

Rated Current [A]: 3.2

Power Input [kW]: 0.74

Frequency [Hz]: 50

Rated Speed [min^-1]: 1280

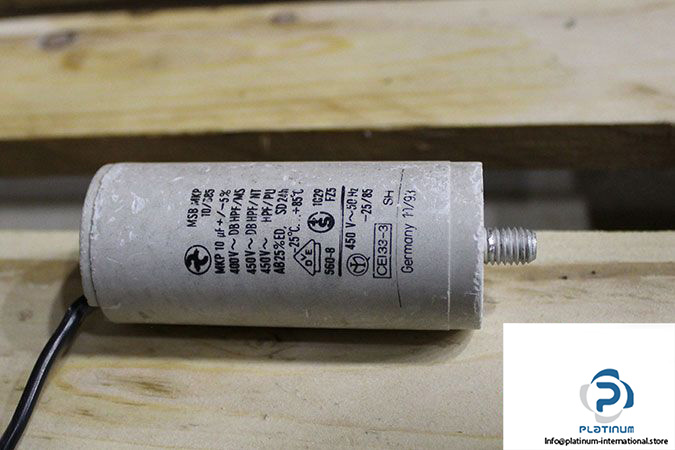

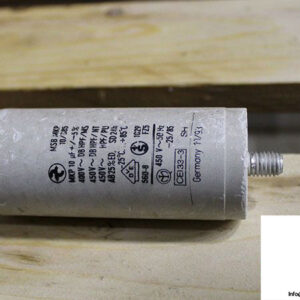

Capacity [UF]: 12/400V

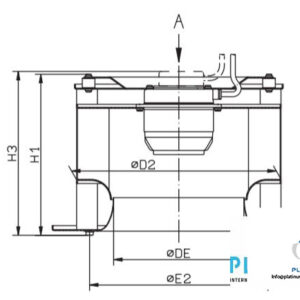

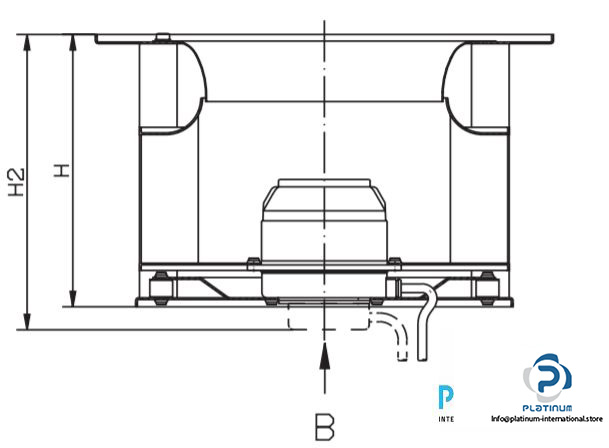

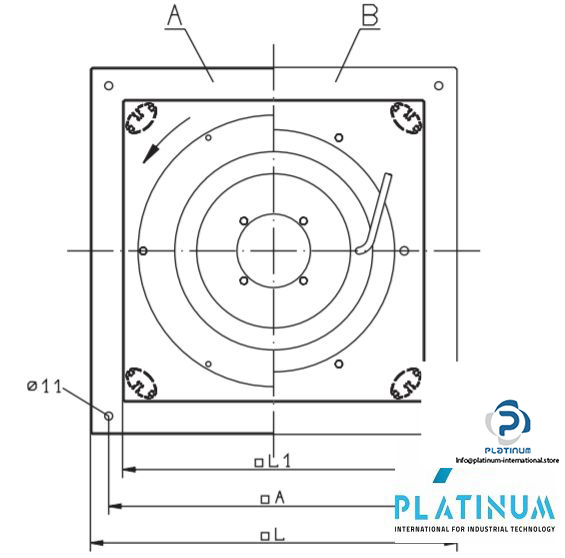

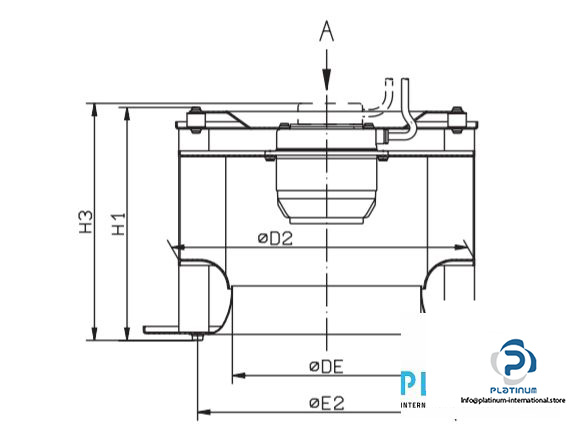

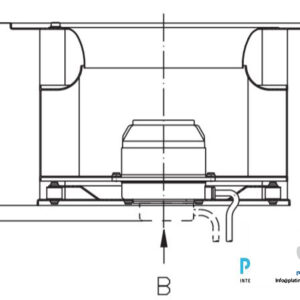

Fan Dimensions:

L: 630 mm

A: 580 mm

L1: 455 mm

H: 341 mm

H1: 363 mm

H2: 368 mm

H3: 369 mm

E2: 487 mm

D2: 455 mm

DE: 285 mm

Protection Class [IP]: 54

Insulation Class: F

Weight [kg]: 25.2
