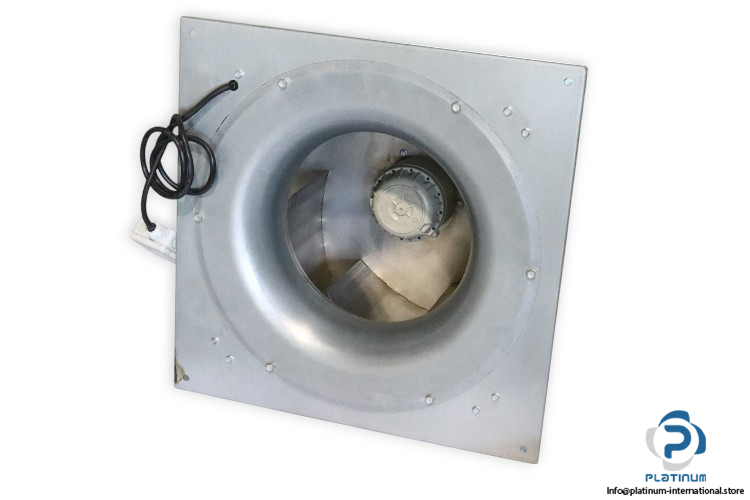

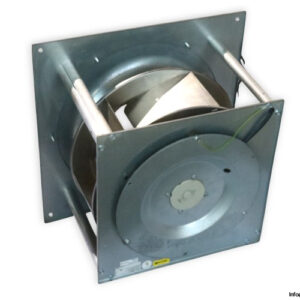

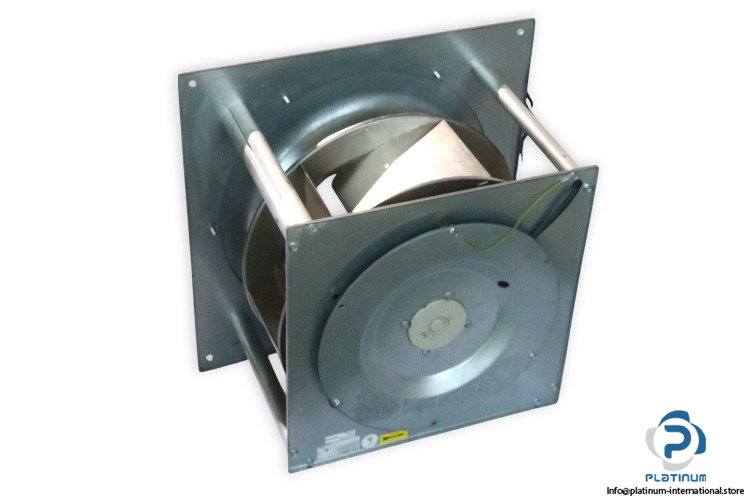

ZIEHL ABEGG GR50M-6DK.4I.1R CENTRIFUGAL FAN

This high-performance centrifugal fan from Ziehl Abegg is built for industrial ventilation systems requiring reliable air movement under demanding conditions. With a robust metal housing and 6-blade circular frame, it supports multi-voltage operation and delivers efficient airflow at varying speeds.

Manufacturer: Ziehl Abegg
Type: Centrifugal Fan
Model: GR50M-6DK.4I.1R
Part No.: 31177036 / 129968

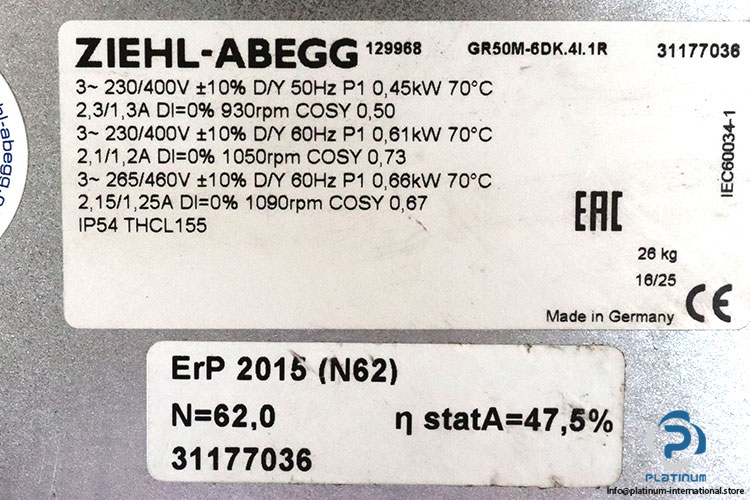

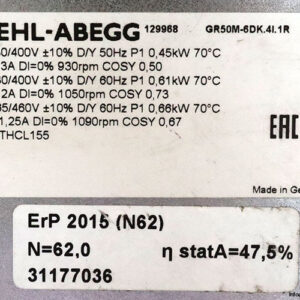

Technical Information

• Number of Blades: 6
• Frame Shape: Circular Frame
• Dimensions: 500×200 mm
• Frame Dimension: 630x630x370 mm
• Frequency: 50/60 Hz
• Nominal Voltage: 230 to 400 / 230 to 400 / 265 to 460 V
• Rated Speed: 930 / 1050 / 1090 rpm
• Power: 0.45 / 0.61 / 0.66 kW
• Current: 2.3 to 1.3 / 2.1 to 1.2 / 2.15 to 1.25 A
• Protection Class: IP54
• Power Factor (cos φ): 0.50 / 0.73 / 0.67
• Efficiency: 47.5%
• Efficiency Grade: 62
• Efficiency Category: Static
• Inverter: Without
• Blade / Housing Material: Metal
• Temperature Resistance: 70¯°C
