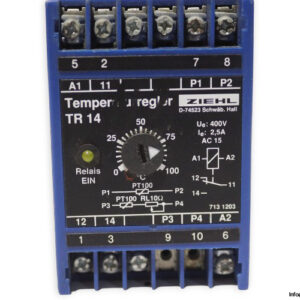

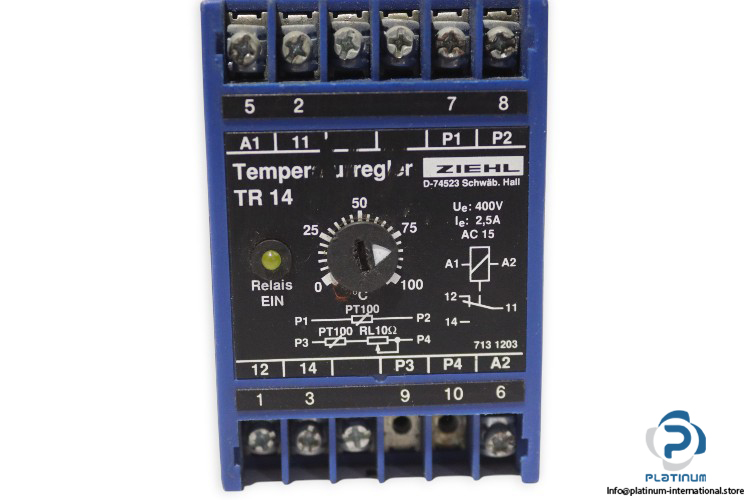

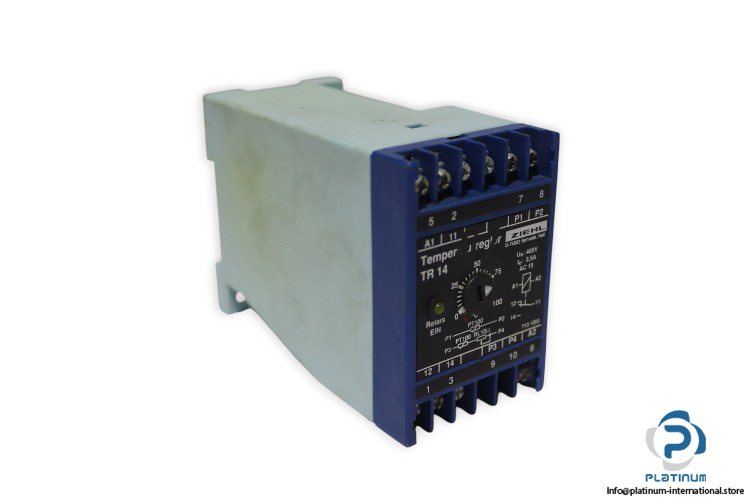

ZIEHL TR14 Temperature Relay

The ZIEHL TR14 is a precision temperature relay designed for monitoring and control in industrial applications. With Pt100 RTD input, adjustable setpoint, and reliable relay output, it ensures accurate temperature management and dependable operation.

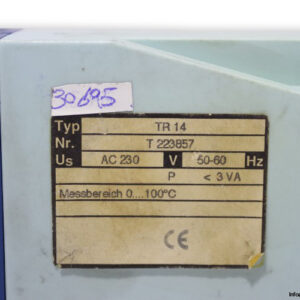

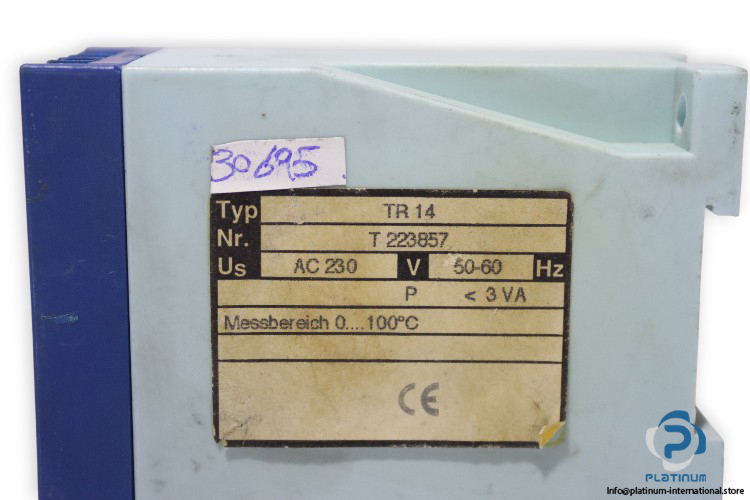

Manufacturer: ZIEHL
Type: Temperature Relay
Model: TR14
Part / Nr.: T 223857
REF NO: 713 1203
Series: TR

Technical Information

• Temperature Sensor: Pt100 (RTD)
• Measurement Range: 0 / 100 °C
• Power Supply: AC 230 V, 50/60 Hz
• Power Consumption: 3 VA
• Output: Relay (contact rating AC15, 400 V, Ie = 2.5 A)
• Control Function: Adjustable setpoint with analog dial (0“100 °C)
• Indicators: Relay ON LED
• Contact: 1 Change-Over (CO)
• Housing: Modular, panel/DIN rail mountable
• Ambient Temperature: 0 / 50 °C
• Dimensions: 75 x 50 x 110 mm
