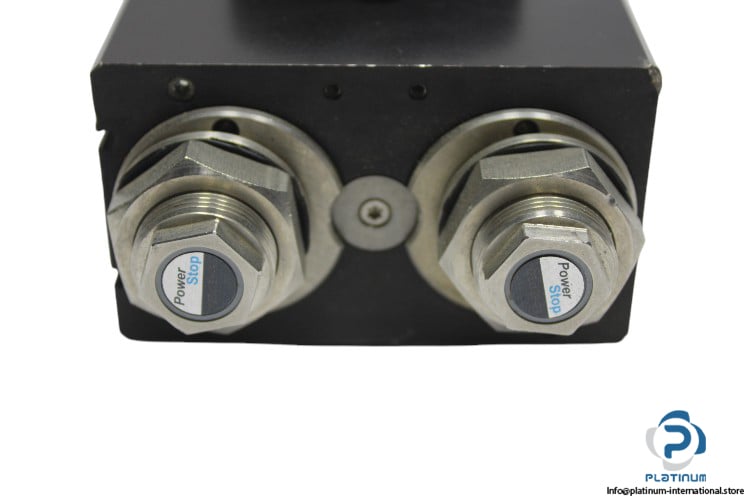

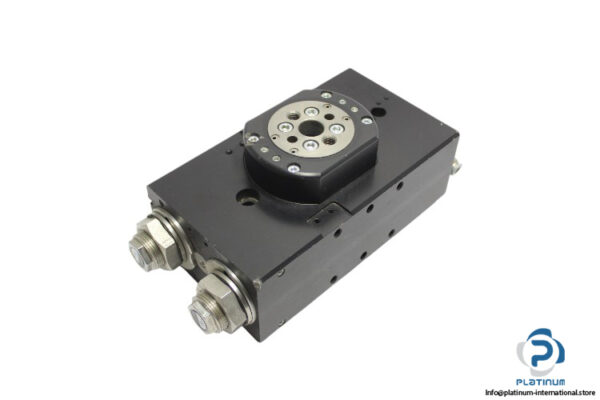

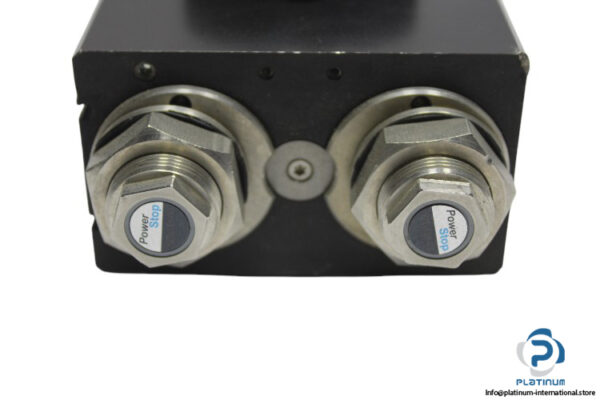

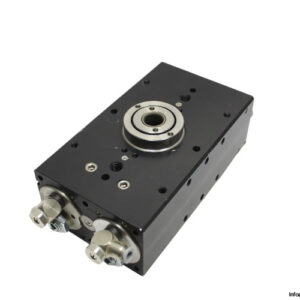

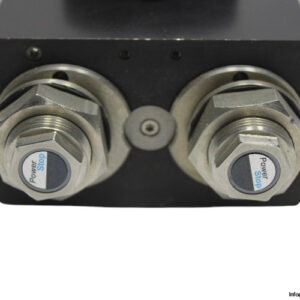

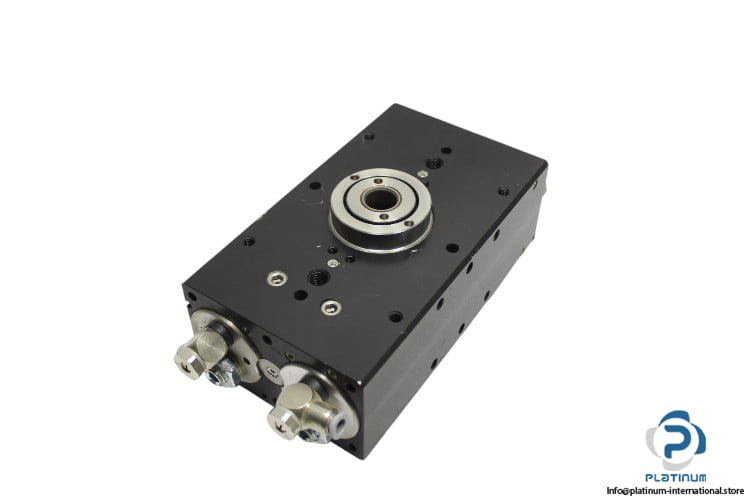

ZIMMER Flat Swivel Unit SF100-180D4-C

The ZIMMER Flat Swivel Unit SF100180D4C is designed for efficient energy transfer with a swivel angle of 180° and pneumatic energy transfer capabilities. With high torque and reliable bearing loads, this swivel unit is ideal for a variety of industrial applications, offering durable performance and precise movement.

Manufacturer: ZIMMER

Type: Flat Swivel Unit

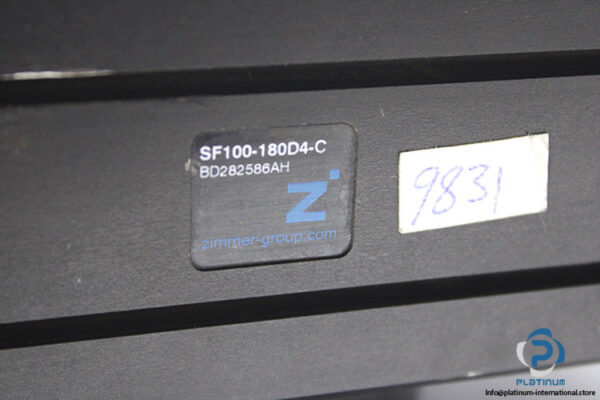

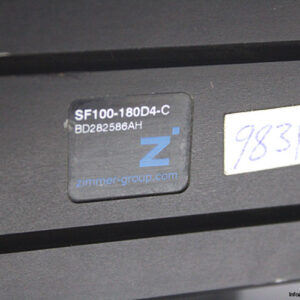

Model: SF100-180D4-C

Part No.: BD282586AH

Technical Specifications

• Swivel Angle: 180°
• Torque: 15 Nm
• Pneumatic Energy Transfer: 4-Way
• Operating Pressure: 3 / 8 bar
• Passage Bore Diameter: 15 mm
• Axial Bearing Load: 2500 N
• Radial Bearing Load: 155 N
• Air Volume Per Cycle: 206 cm³
• Connection: 6 mm
• Protection Class: IP64
• Operating Temperature: 5 / 80 °C
• Dimensions: 100 x 51.5 x 174 mm
