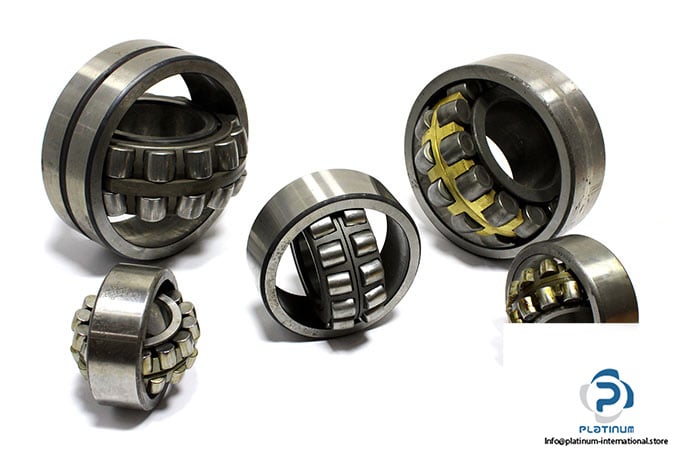

ZKL 23126MW33 Double Row Spherical Roller Bearing
The ZKL 23126MW33 is a durable double row spherical roller bearing engineered to handle heavy radial and axial loads in demanding industrial environments. With a brass cage and optimized lubrication system, it ensures long service life and reliable rotation under high load conditions.
Manufacturer: ZKL
Type: Double Row Spherical Roller Bearing
Model: 23126MW33
Technical Information
- Bore Diameter (d): 130 mm
- Outer Diameter (D): 210 mm
- Width (B): 64 mm
- Lubrication (W33): 3 lubrication holes (equally spaced) and a lubrication groove on the outer ring
- Basic Load Rating “ Dynamic Cr: 474 kN
- Basic Load Rating “ Static C0r: 752 kN
- Fatigue Load Limit: 78.21 kN
- Limiting Speed: 1400 r/min (Grease), 1700 r/min (Oil)
- Cage Material (M): Brass
