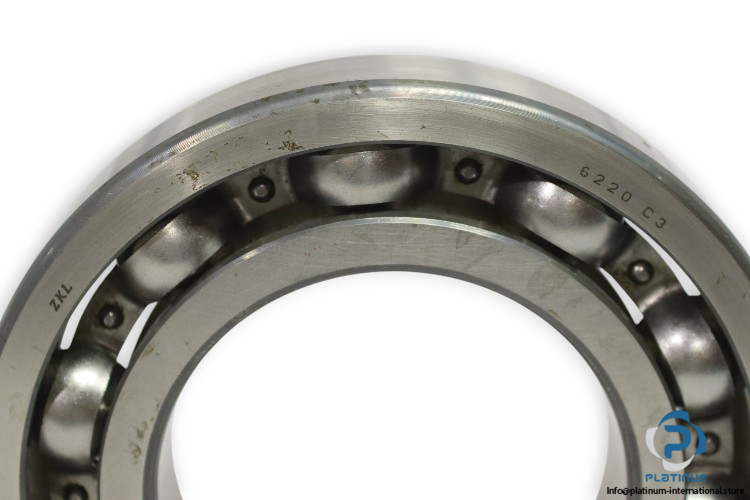

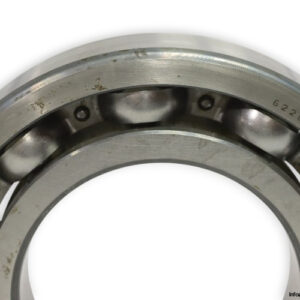

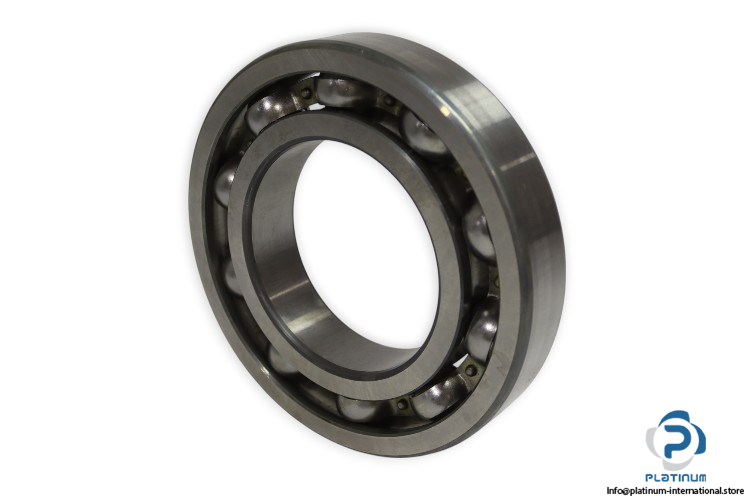

ZKL 6220/C3 DEEP GROOVE BALL BEARING
The ZKL 6220/C3 Deep Groove Ball Bearing is designed for high load capacity and durability, making it suitable for demanding industrial applications. With precision clearance and high-speed limits, it ensures reliable performance and long service life.
Manufacturer: ZKL
Type: Deep Groove Ball Bearing
Model: 6220/C3
Technical Information
- Bore Diameter (d): 100 mm
- Outer Diameter (D): 180 mm
- Width (B): 34 mm
- Dynamic Load Rating (Cr): 108.537 kN
- Static Load Rating (C0r): 83.358 kN
- Fatigue Limit Load: 3.57 kN
- Grease Lubrication Limit Speed: 3500 rpm
- Oil Lubrication Limit Speed: 4200 rpm
- Clearance: C3
