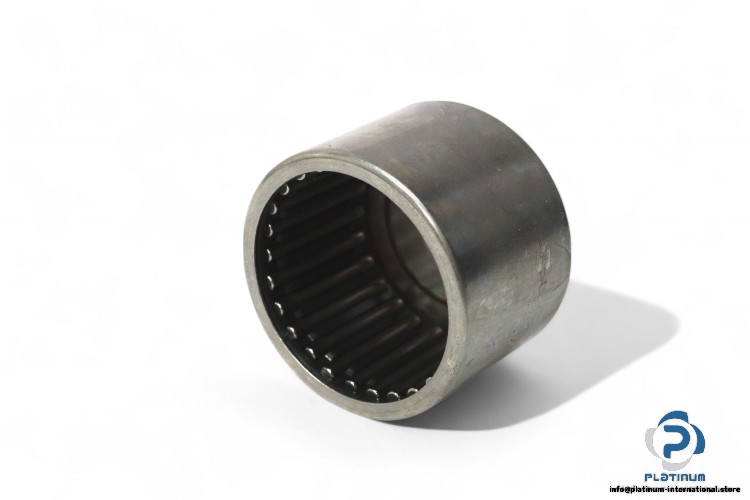

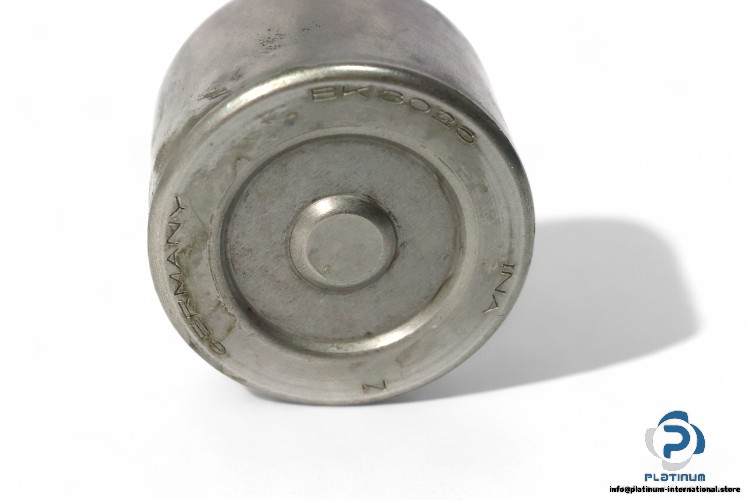

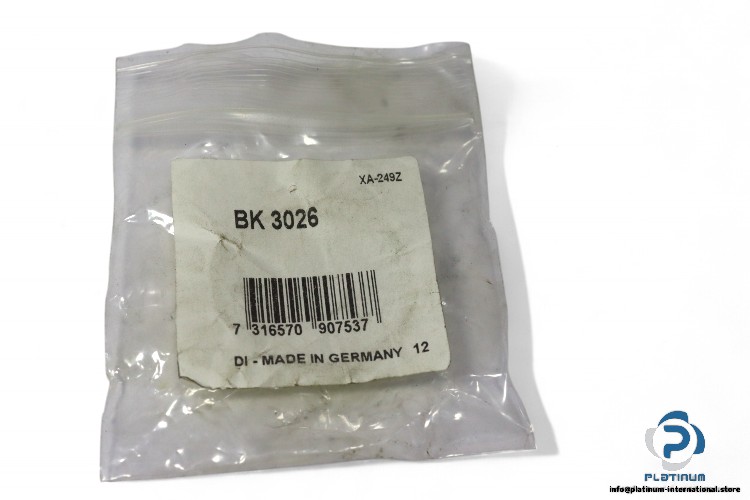

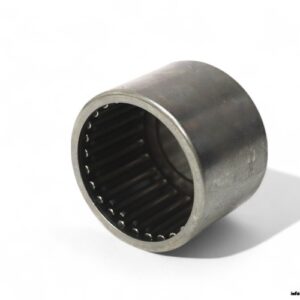

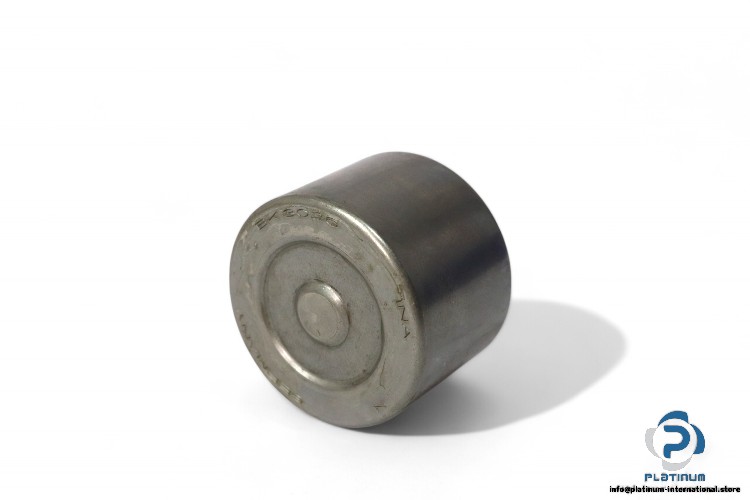

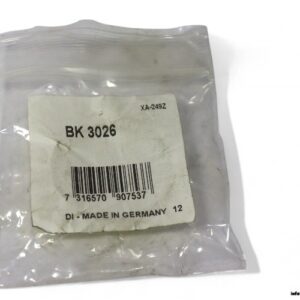

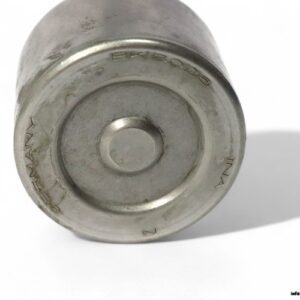

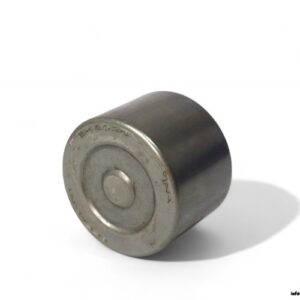

Drawn Cup Needle Roller Bearing (Model: BK-3026)

Manufacturer: INA

Type: Drawn Cup Needle Roller Bearing

Model: BK-3026

The INA Drawn Cup Needle Roller Bearing (Model: BK-3026) is designed for use in high-load applications. It is optimized for applications requiring compact and high-performance bearings with excellent load capacity, high limiting speeds, and operating temperature range. The bearing provides an effective solution for handling high radial loads.

• Manufacturer: INA
• Type: Drawn Cup Needle Roller Bearing
• Model: BK-3026
• Under roller diameter (Fw): 30 mm
• Outer diameter (D): 37 mm
• Width, outer ring (C): 26 mm
• Minimum chamfer dimension (rmin): 0.8 mm
• Basic load ratings:
• Dynamic (C): 28,000 N
• Static (C0): 54,000 N
• Fatigue load limit (Pu): 7,600 N
• Limiting speed: 8,600 1/min
• Limiting speed for grease lubrication: 5,200 1/min
• Reference speed: 6,200 1/min
• Operating temperature: -30 / 140 °C
