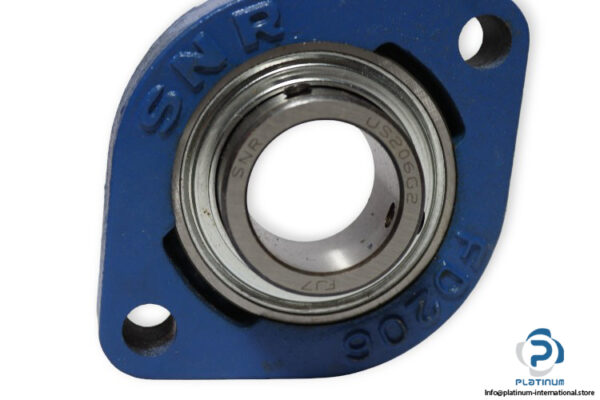

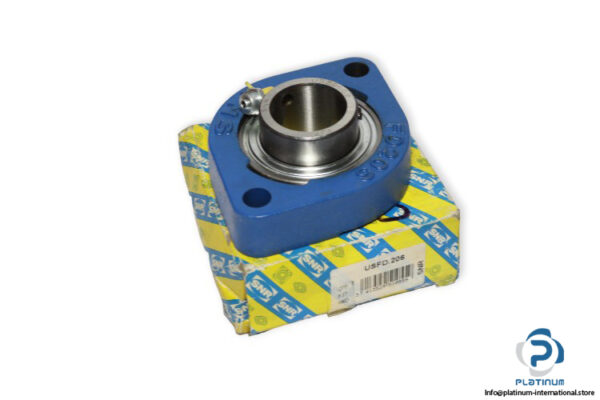

Manufacturer: SNR
Type: Flanged housing unit
Model: USFD206
Housing: FD206
Bearing designation: US206G2

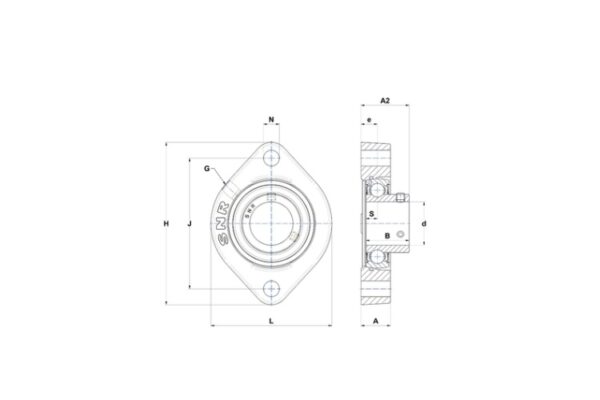

Dimensions
Shaft Diameter d: 30 mm
Overall Length L: 84 mm
Overall Height H: 112.5 mm
Width of inner ring B1: 30 mm
Distance Between Attachment Bolts J: 90.5 mm
Overall unit width A2: 33.4 mm
Basic dynamic load rating: 19500 N
Basic static load rating: 11200 N
Temperature range: -20 °C…100°C
Material: Grey cast iron
Locking Device: socket set screw
