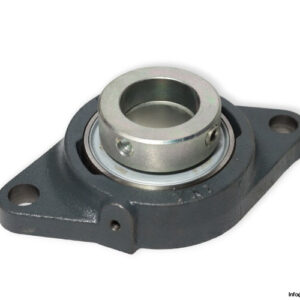

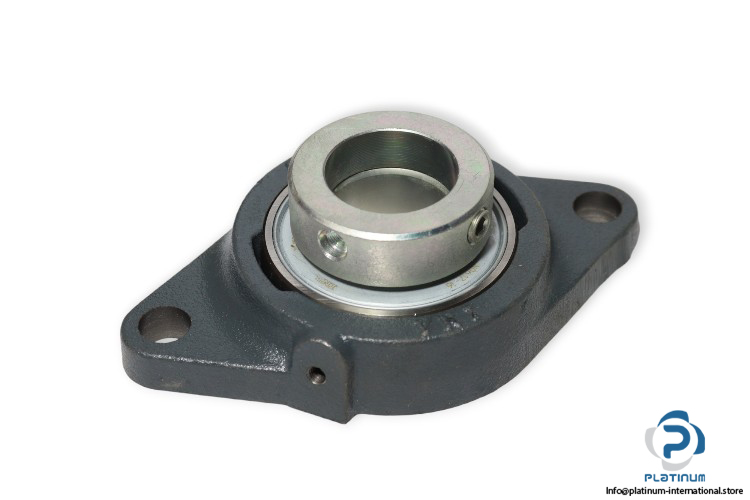

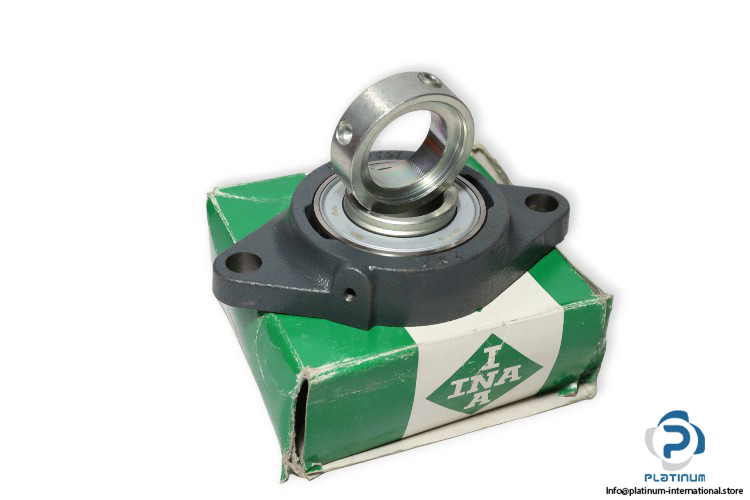

INA PCFT35-XL Flanged Housing Unit

Manufacturer: INA
Type: two-bolt flanged housing units
Model: PCFT 35 XL
Replaces: PCFT35
Housing: GG.CFT07

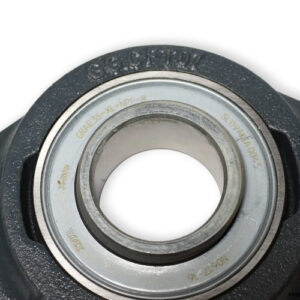

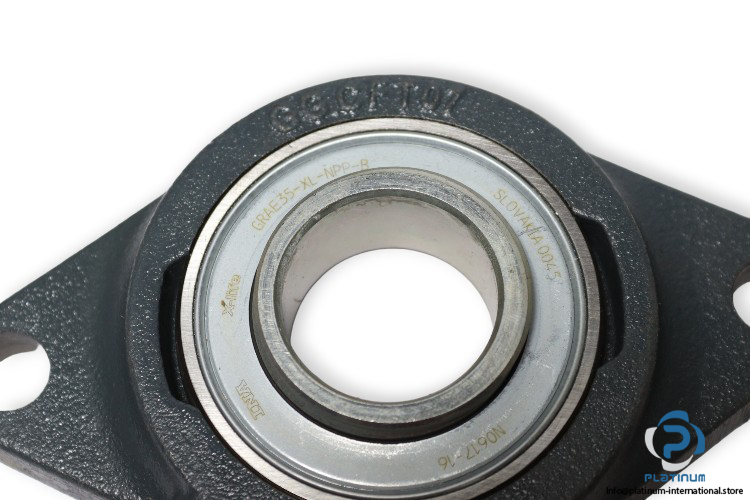

Bearing designation: GRAE35-XL-NPP-B

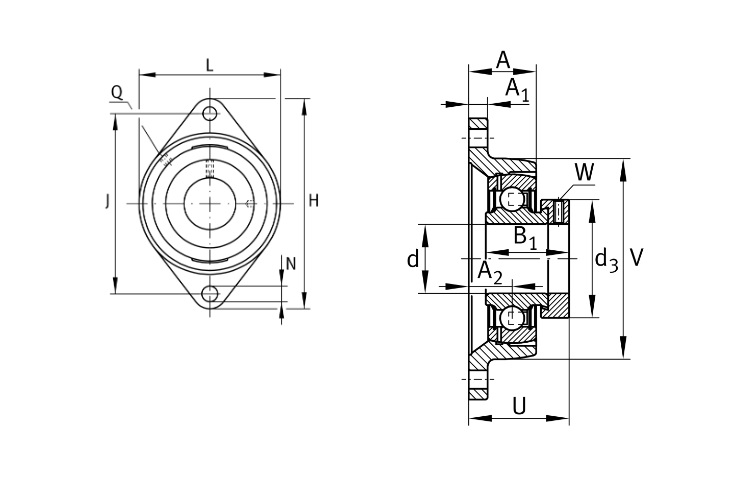

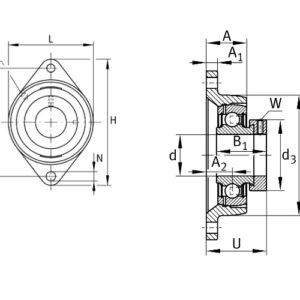

Bore Diameter d: 35 mm
Flange width L: 92 mm
Height flange H: 155 mm
Total height unit U: 44.9 mm
Distance fixing bore J: 130 mm
Fixing bore N: 14 mm
Basic dynamic load rating: 25500 N
Basic static load rating: 15300 N
Fatigue load limit: 650 N
Temperature range: -20 °C…120°C
Material: GG, Grey cast iron
