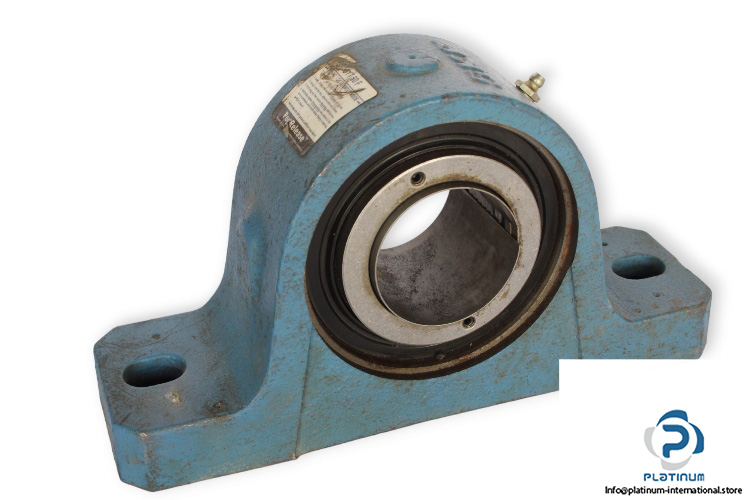

SKF SYT 60 F Pillow Block Roller Bearing Unit

Manufacturer: SKF
Type: Pillow Block Ball Bearing Unit For Metric Shafts
Model: SYT60 F

Bearing type: Spherical Roller bearing
Mounting: Two-Bolt Base
Bearing position: Locating unit
Locking device: SKF ConCentra
Included Bearing: 22212
Dimensions
Bore Diameter: 60 mm
Housing Overall width: 80 mm
Inner ring width B: 65.5 mm
Housing height H: 150 mm
Centre height (pillow block) H1: 80 mm
Housing foot height (H2): 30 mm
Distance of attachment bolts J: 230 mm
Housing length L: 275 mm
Width foot slot width N: 24 mm
Basic dynamic load rating: 156 kN
Basic static load rating: 166 kN
Fatigue load limit: 18.6 kN
Limiting Speed: 3000 rpm
Reference Speed: 5600 rpm
