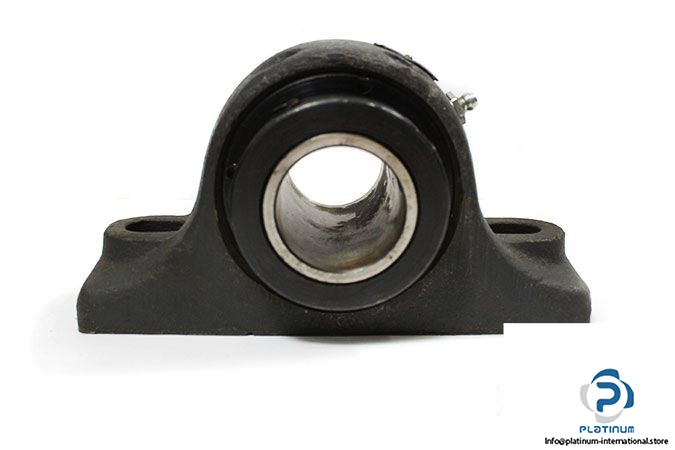

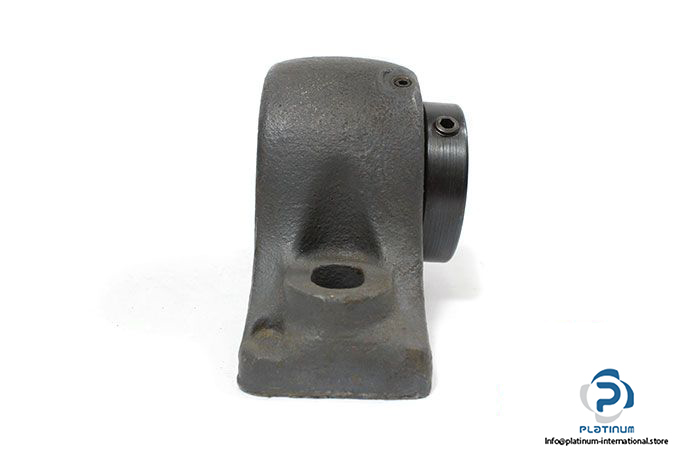

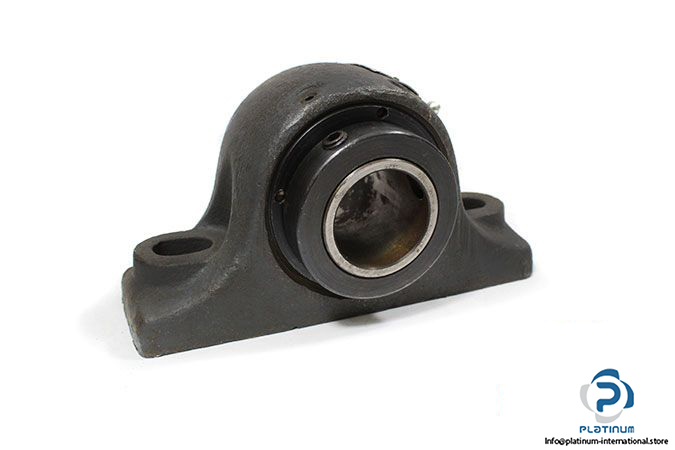

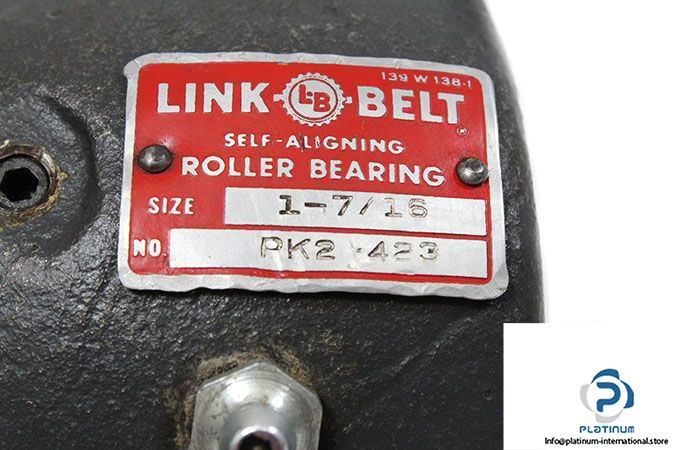

Link-Belt PK2-423 TWO-Bolt Spherical Roller Bearing Pillow Block Unit

Manufacturer: REXNORD LINK-BELT

Type: TWO-BOLT SPHERICAL ROLLER BEARING PILLOW BLOCK UNIT

Series: PKB22400

Part No.: PKB22423H

Features:

• Corrosion-resistant powder coating
• Misalignment capabilities – total of 4°
• Broad range of sealing options
• Factory set clearance & lubrication
• Hardened spring locking collar
• Field interchangeable seals
• Fixed or Expansion – total of 3/8” expansion

Housing material: Steel

Bore type: Round

Bearing type: Spherical Roller

mounting: Two-Bolt Base

Housing construction: Solid Pillow Block

Locking device: Concentric Collar

Bore diameter: 1⁷⁄₁₆ in

Bolt center-to-center length ( B ): 5 in

Overall length ( C ): 6.8750 in

Overall Height ( L ): 3.6875 in

Base width: 2¼ in

Overall Width: 2⅞ in

Radial dynamic load capacity: 14600 lb

Radial static load capacity: 20900 lb

Max. Speed: 3600 rpm

Weight: 3.20 kg
