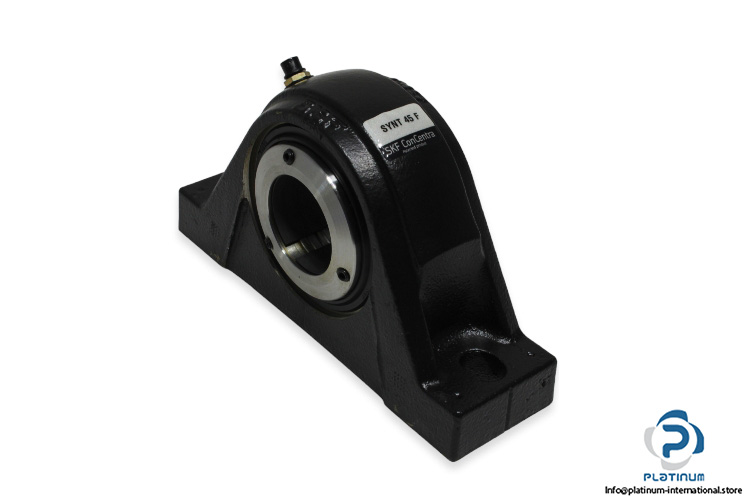

SKF Synt 45 F Pillow Block Roller Bearing Unit

Manufacturer: SKF

Type: Two-Bolt Pillow Block Roller Bearing Unit For Metric Shafts

Series: SYNT

Model: SYNT45F

Bore type: Cylindrical

Bearing type: Spherical Roller

mounting: Two-Bolt Base

Bearing position: locating

Locking device: SKF ConCentra

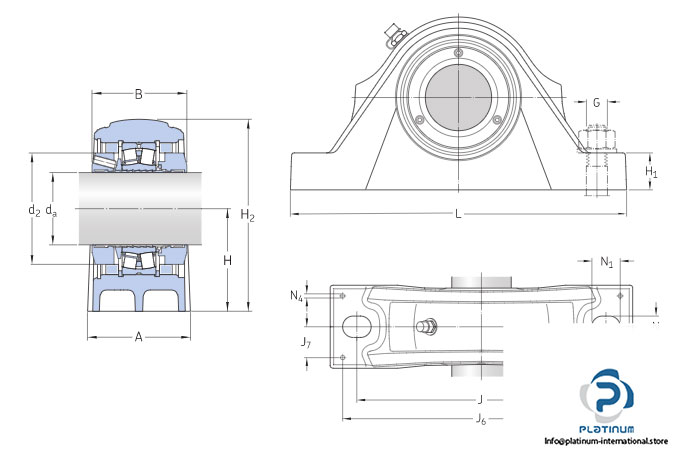

Dimensions

Shaft diameter d_a: 45 mm

Housing length L: 205 mm

Housing foot width A: 60 mm

Housing height H₂: 118 mm

Distance of attachment bolts J: 170 mm

Basic dynamic load rating C: 102 kN

Basic static load rating C₀: 98 kN

Fatigue load limit P_u: 10.8 kN

Limiting Speed: 3500 r/min

Bearing housing seal type: Radial lip seal
