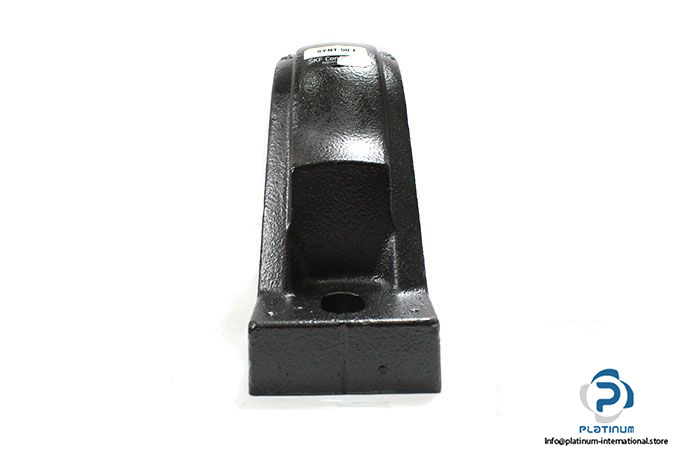

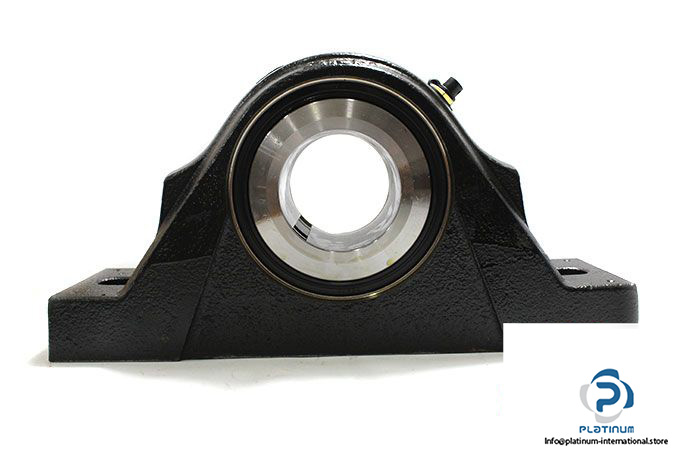

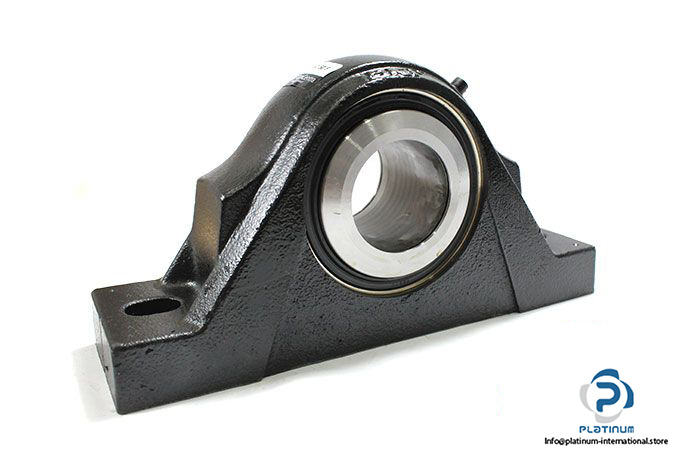

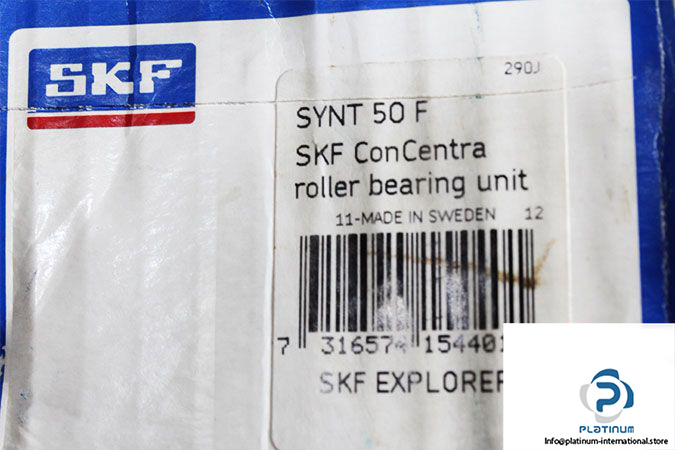

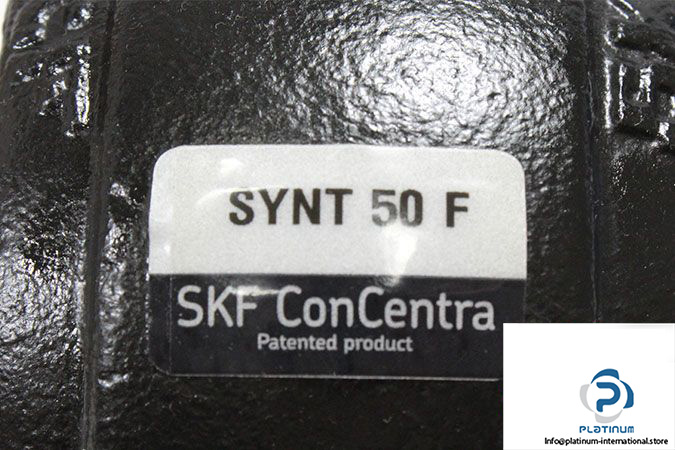

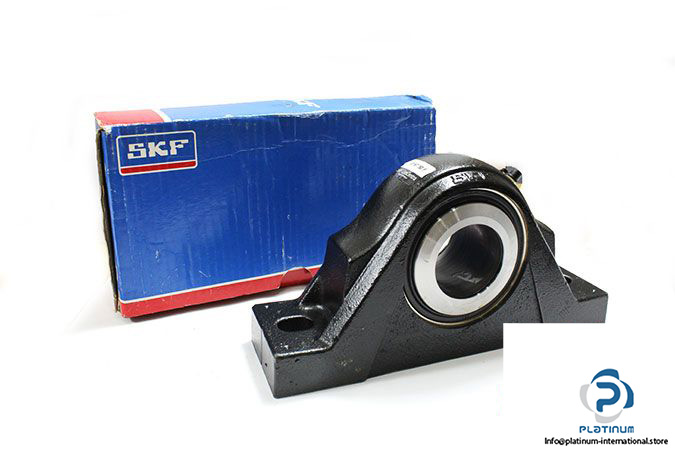

SKF Synt 50 F Pillow Block Roller Bearing Unit

Manufacturer: SKF

Type: TWO-BOLT PILLOW BLOCK ROLLER BEARING UNIT FOR METRIC SHAFTS

Series: SYNT

Model: SYNT 50 F

Bore type: Round

Bearing type: Spherical Roller

mounting: Two-Bolt Base

Housing construction: Split Pillow Block

Locking device: Concentric Collar

Bore diameter: 50 mm

Bolt center-to-center length: 210 mm

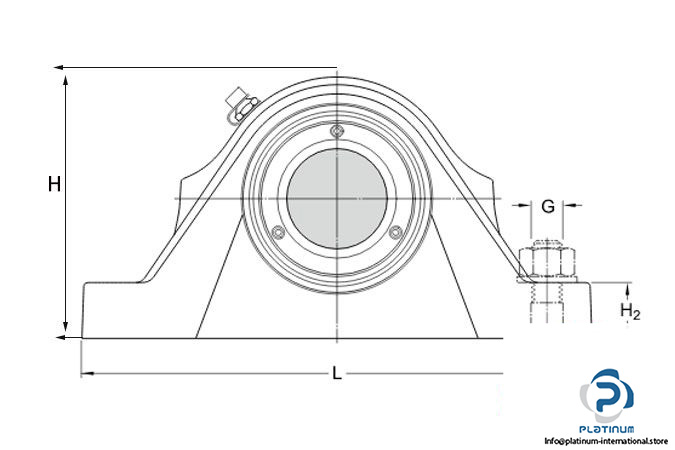

Overall length ( L ): 255 mm

Height ( H2 ): 28 mm

Overall Height ( H ): 130 mm

Overall Width: 70 mm

Basic dynamic load rating: 104 kN

Basic static load rating: 108 kN

Limiting Speed: 3300 r/min

Operating temperature: 55 … 120 °F

Weight: 6 kg
