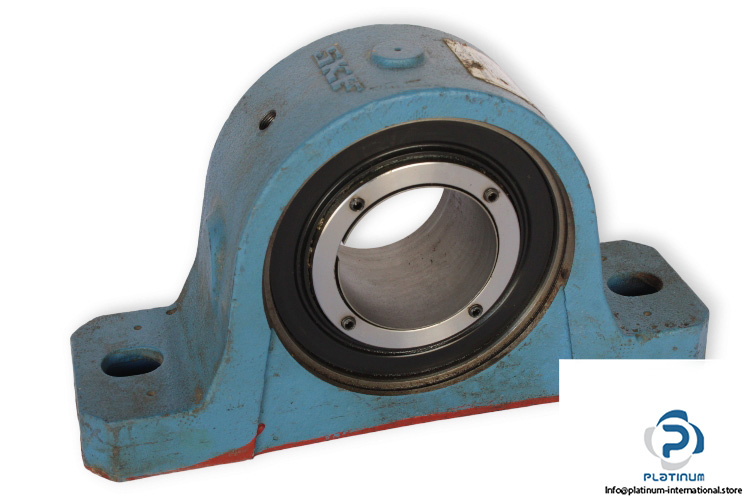

SKF SYT 65 L Pillow Block Roller Bearing Unit

Manufacturer: SKF
Type: Pillow Block Ball Bearing Unit For Metric Shafts
Model: SYT65 L

Bore type: Cylindrical
Bearing type: Spherical Roller bearing
Mounting: Two-Bolt Base
Bearing position: Non-locating
Locking device: SKF ConCentra
Included Bearing: 22213

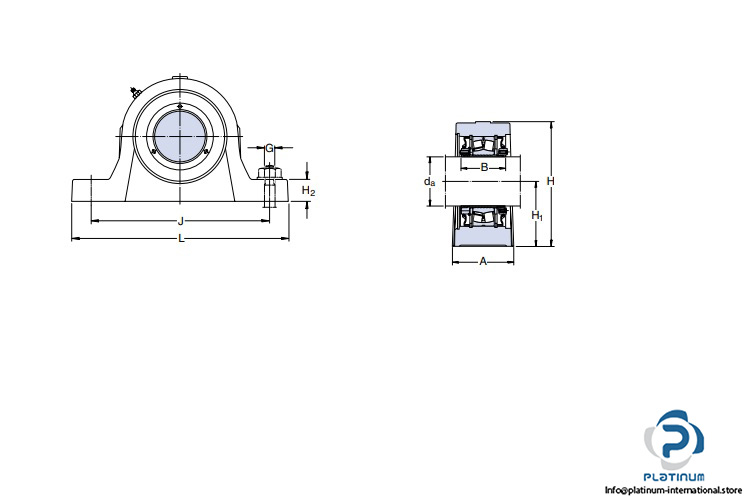

Dimensions
Bore Diameter: 65 mm
Housing Overall width: 80 mm
Inner ring width B: 65.5 mm
Housing height H: 157 mm
Centre height (pillow block) H1: 80 mm
Housing foot height (H2): 30 mm
Distance of attachment bolts J: 230 mm
Housing length L: 280 mm
Width foot slot width N: 24 mm
Basic dynamic load rating: 193 kN
Basic static load rating: 216 kN
Fatigue load limit: 24 kN
Limiting Speed: 2900 rpm
Reference Speed: 5300 rpm
