Manufacturer: SKF

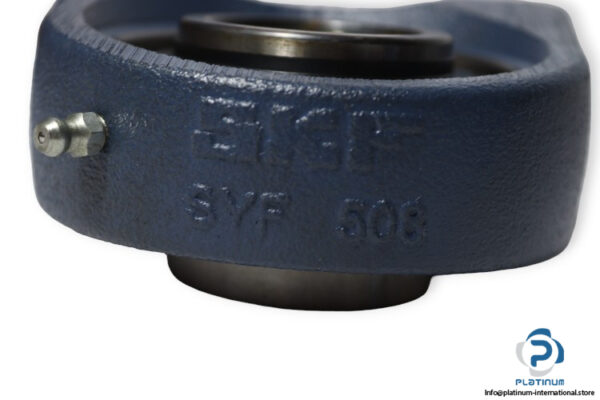

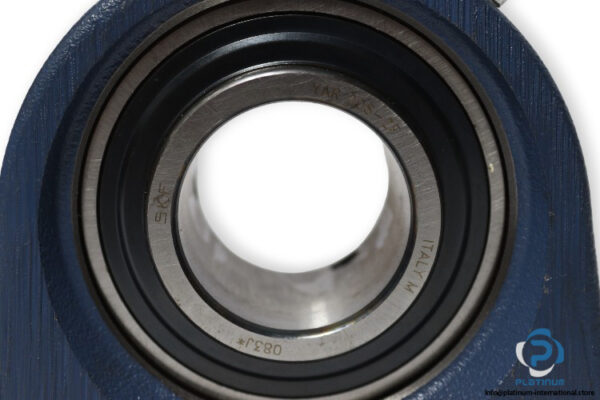

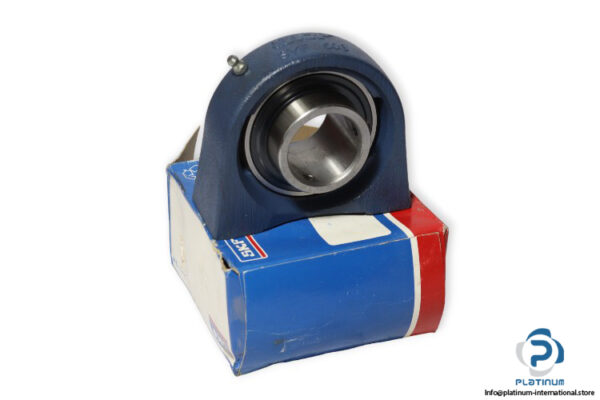

Type: Short base pillow block ball bearing unit
Model: SYF40 TF

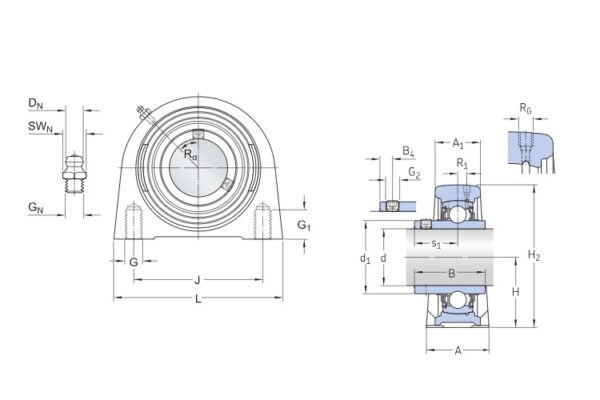

Dimensions
Bore Diameter d: 40 mm
Base width A: 48 mm
Inner ring width B: 49.2 mm
Height of spherical seat center H: 49.2 mm
Distance of attachment bolts J: 88.9 mm
Overall length L: 116 mm
Basic dynamic load rating: 30.7 kN
Basic static load rating: 19 kN
Fatigue load limit: 0.8 kN
Limiting Speed: 4800 rpm
Material, housing: Cast iron
Sealing, bearing: Seal and flinger on both sides
Retaining feature, inner ring: Set screws
