FAG UCPA204-J7 Plummer Block Housing Unit

Name: FAG UCPA204-J7 PLUMMER BLOCK HOUSING UNIT
SKU: 1030907
Availability: LimitedAvailability

fag-UCPA204-J7-plummer-block-housing-unit-(new)-(carton)

fag-UCPA204-J7-plummer-block-housing-unit-(new)-(carton)-1

fag-UCPA204-J7-plummer-block-housing-unit-(new)-(carton)-2

fag-UCPA204-J7-plummer-block-housing-unit-(new)-(carton)-3

fag-UCPA204-J7-plummer-block-housing-unit-(new)-(carton)-4

New

In stock1 unitReady to ship

Manufacturer:

Schaeffler FAG

Type:

Plummer block housing unit

Model:

UCPA 204 J7

Housing:

PA204

Bearing designation:

UC204

Manufacturer

FAG

SKU

1030907

Category

Plummer Block Housing Units

Condition

New

20 Ball Base bearing bearings Block Cast Fag grub Housing in Inner insert Iron mm plummer radial Ring RSR Screws Seals Short Ucpa Units With

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: Schaeffler FAG
Type: Plummer block housing unit
Model: UCPA 204 J7
Housing: PA204
Bearing designation: UC204

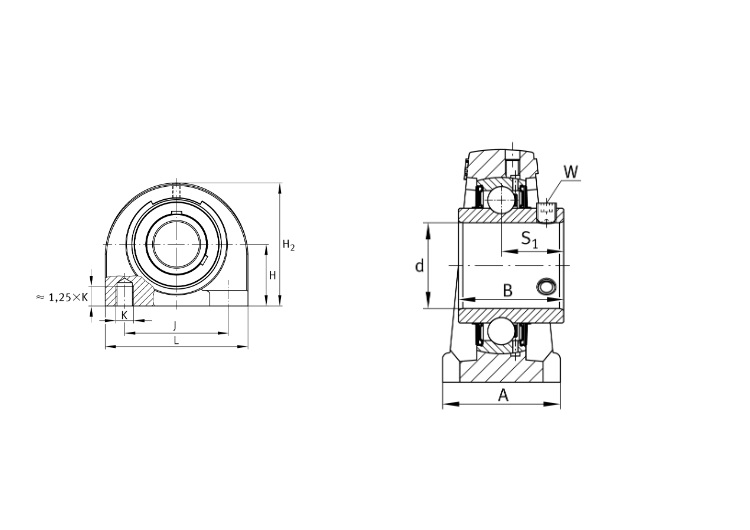

Dimensions
Bore Diameter d: 20 mm
length Total L: 76 mm
Hight H2: 62 mm
Distance fixing bore J: 52 mm
Distance shaft axis H: 30.2 mm
Width (base) A: 38 mm
Width of inner ring B: 31 mm
Connection thread for lubrication: M6
Distance of raceway to locking collar S₁: 18.3 mm
Housing clearance: J7, Normal swivel torque
Material: GG, Grey cast iron
