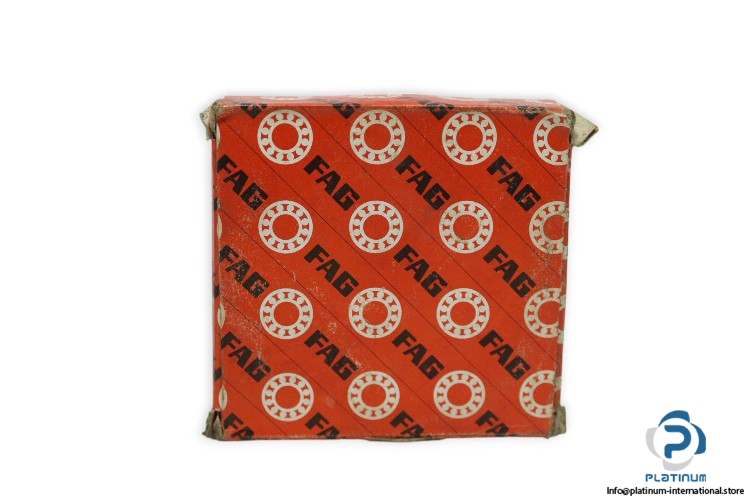

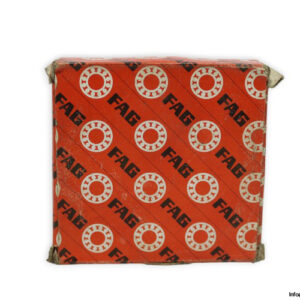

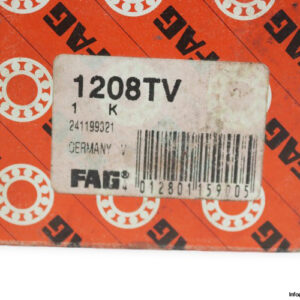

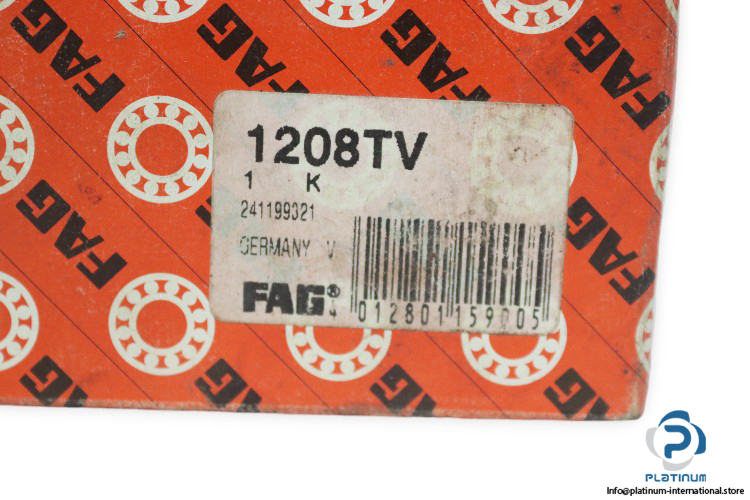

FAG 1208TV Self-Aligning Ball Bearing

The FAG 1208TV Self-Aligning Ball Bearing is designed to compensate for misalignment, making it ideal for applications requiring smooth and precise operation. With a solid glass-fiber reinforced polyamide cage, this bearing ensures durability and high performance under demanding conditions.

Manufacturer: FAG

Type: SELF-ALIGNING BALL BEARING

Model: 1208TV

Technical Information:

• Bore Diameter (d): 40 mm
• Outer Diameter (D): 80 mm
• Width (B): 18 mm
• Dynamic Load Rating (Cr): 19400 N
• Static Load Rating (C0r): 6500 N
• Fatigue Load Rating: 415 N
• Limiting Speed: 10100 rpm
• Reference Speed: 8600 rpm
• Cage: TV, solid cage made of glass-fiber reinforced polyamide PA66
