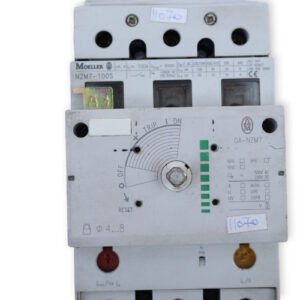

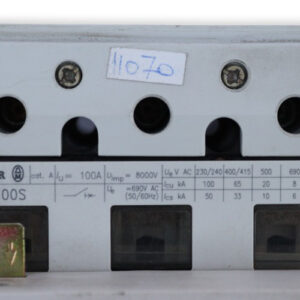

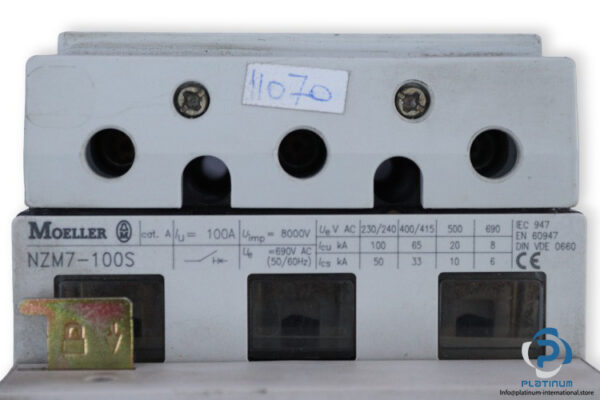

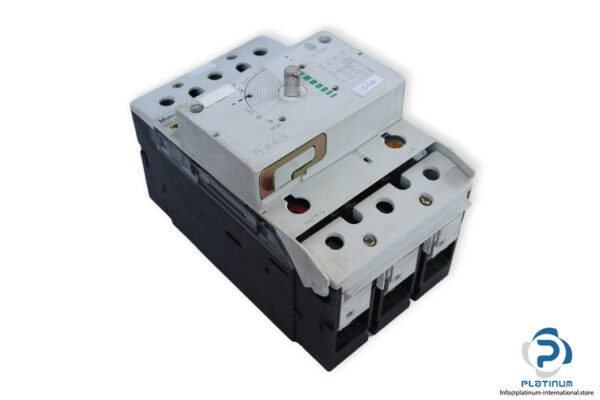

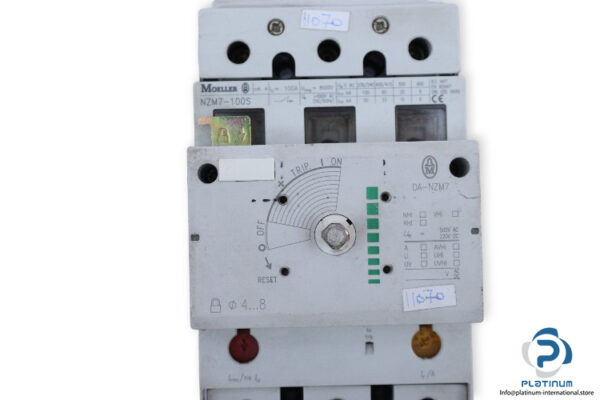

Manufacturer: MOELLER
Type: Circuit Breaker
Model: NZM7100S

Rated Operational Voltage: 690 V AC
Rated Continuous Current: 100 A
Operating Frequency: 50 … 60 Hz
Adjustable Setting Range: 80 … 100 A
No. of Poles: 3-Pole
Rated Impulse Voltage (Uimp): 8 kV
Rated Service Short-Circuit Breaking Capacity (Ics):
230/240 V AC: 100 kA
400/415 V AC: 65 kA
500 V AC: 20 kA
690 V AC: 8 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
230/240 V AC: 50 kA
400/415 V AC: 33 kA
500 V AC: 10 kA
690 V AC: 6 kA
Protection Class: IP20
Temperature: -25 … 70 °C
Dimensions: 184 x 105 x 105 mm
