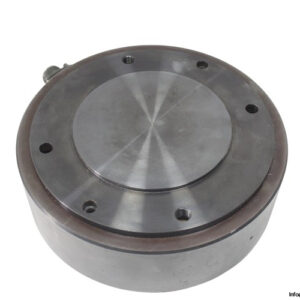

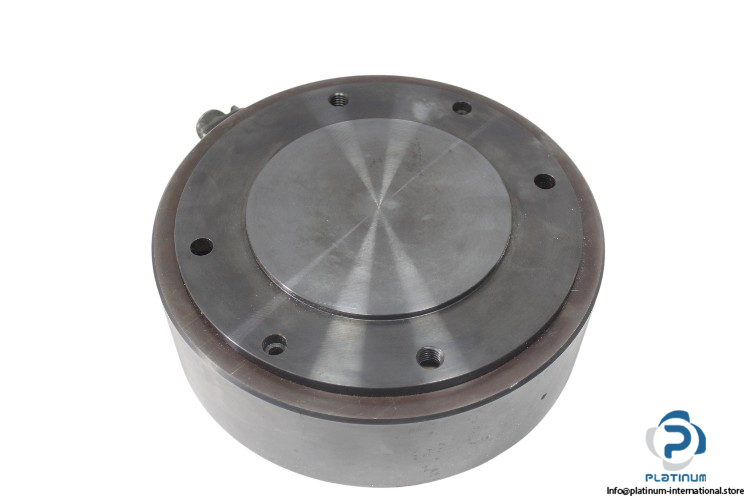

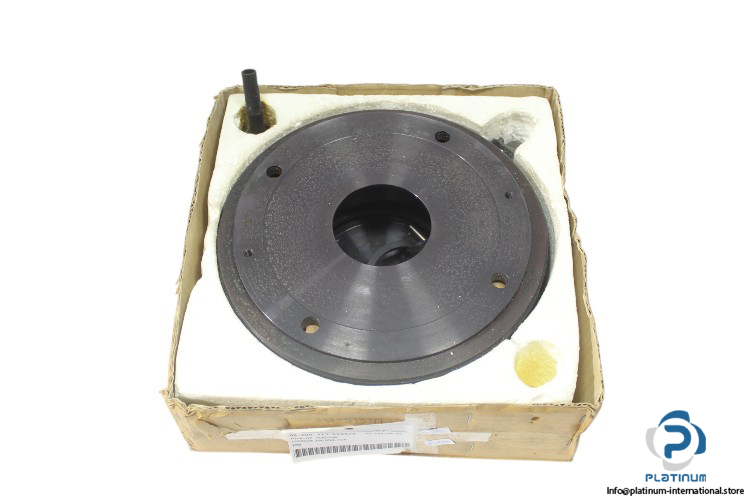

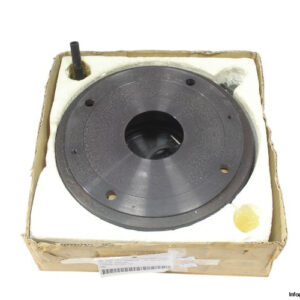

FMS LMGZ310.581558.H15 Tension Control

The FMS LMGZ310.581558.H15 Tension Control is a high-precision tension measurement device designed for industrial applications requiring accurate force monitoring. Engineered with stainless steel construction, it ensures durability, reliability, and stable performance. With a high measuring range and excellent sensitivity, this sensor provides precise tension control in demanding environments.

• Manufacturer: FMS
• Type: Tension Control
• Series: LMGZ

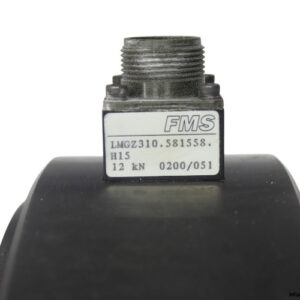

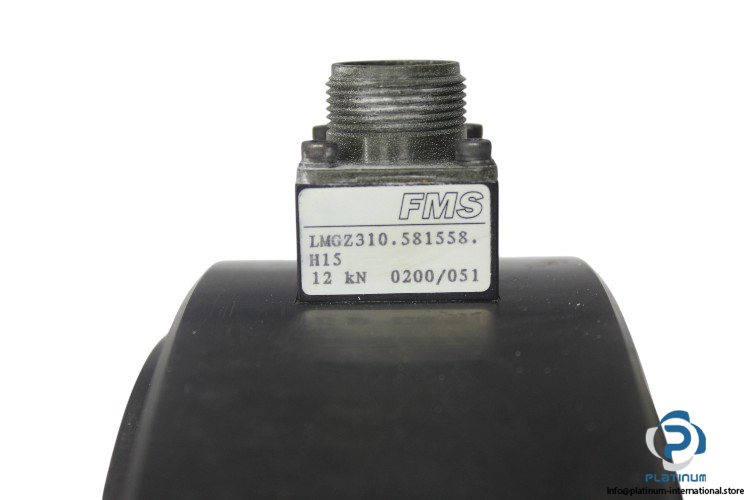

• Model: LMGZ310.581558.H15
• Ref No: 00.000.313-513473

Technical Specifications

• Sensitivity: 1.8 mV/V
• Tolerance of Sensitivity: ± 0.2 %
• Accuracy Class: ± 0.3 %
• Measuring Range: 100:1
• Temperature Coefficient: ± 0.1 %
• Temperature Range: –10 to +60 °C
• Protection Class: IP42
• Input Resistance: 350 Ω
• Power Supply: 1 to 10 VDC
• Sensor Material: Stainless Steel
• Nominal Force: 12 kN
• Dimensions (Diameter x Length x Height): 225 x 76 x 258 mm
• Port Size: G1/2
