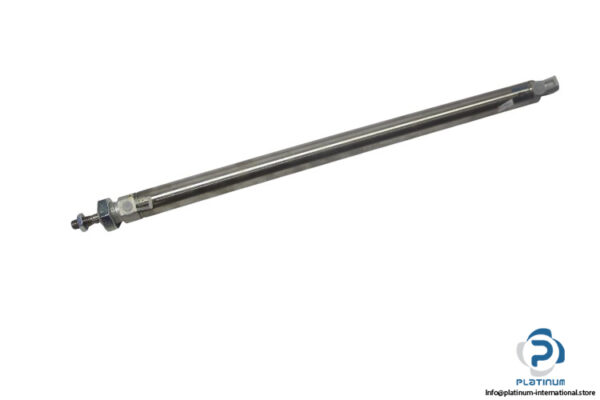

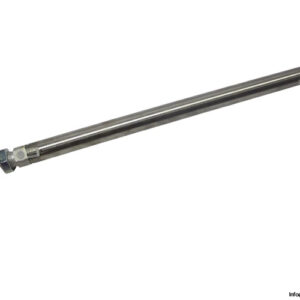

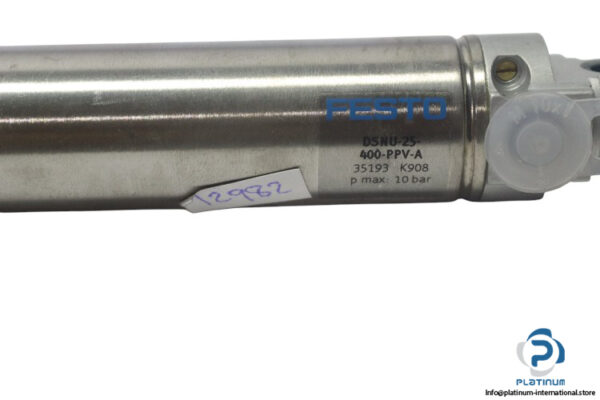

Festo DSNU-25-400-PPV-A “ ISO Cylinder
The Festo DSNU-25-400-PPV-A ISO cylinder is a high-performance double-acting pneumatic actuator designed for reliable operation in industrial systems. Featuring adjustable pneumatic cushioning at both ends and high-quality materials, it is ideal for a wide range of applications requiring precision and durability.
- Manufacturer: Festo
- Type: ISO Cylinder
- Model: DSNU-25-400-PPV-A
- Part No: 35193 K908
Technical Information:
- Operating Medium: Compressed air
- Design of Cylinder: Piston
- Cushioning: Pneumatic cushioning, adjustable at both ends
- Piston-Rod End: Male thread
- Mode of Operation: Double-acting
- Operating Pressure: 1 to 10 bar
- Piston Diameter: 25 mm
- Stroke: 400 mm
- Pneumatic Connection: G1/8
- Cover Material: Wrought aluminum alloy
- Material Seals: NBR
- Piston Rod Material: High-alloy stainless steel
- Ambient Temperature Range: -20 to 80°C
