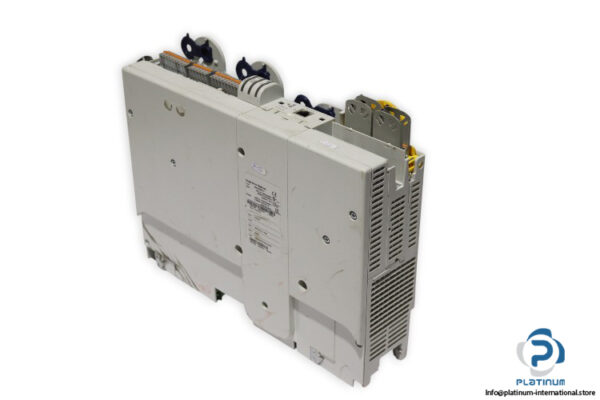

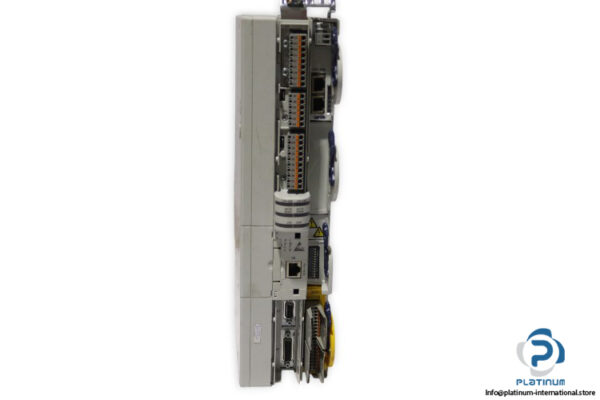

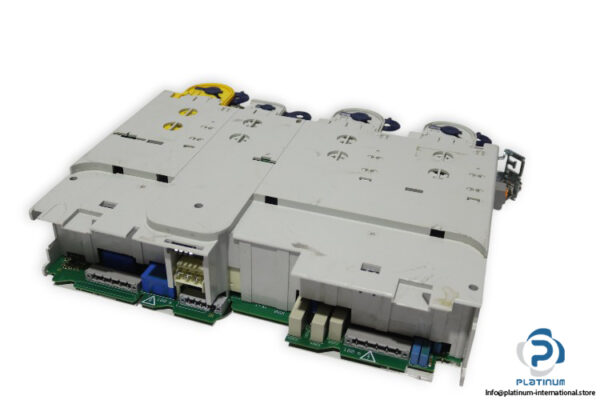

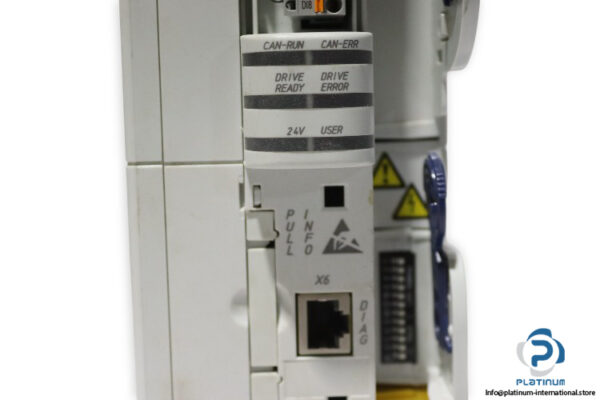

Lenze E94ASHE0074 Single Drive HighLine

The Lenze E94ASHE0074 is a high-performance single-axis controller from the HighLine series, designed for precise motor control and advanced automation applications. With robust input/output ratings, communication flexibility, and expansion slots, it delivers efficiency and reliability for industrial drive systems.

Manufacturer: Lenze
Type: Single Drive HighLine
Model: E94ASHE0074

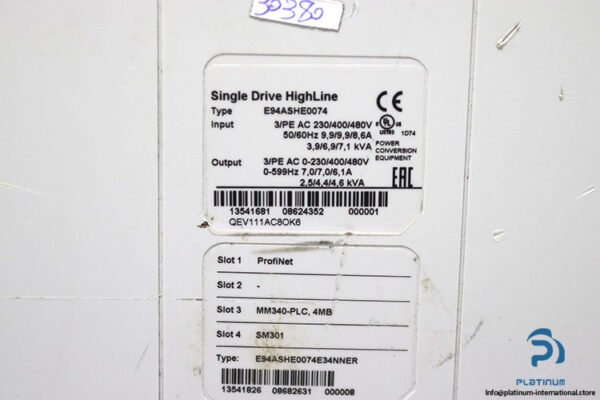

Serial No.: QEV111AC8OK6/ 08624352/ 000001/ 13541681/ 13541826 /08682631/000008
Type Code: E94ASHE0074E34NNER
Version: 1
Design: S, Single-axis controller (Single Drive)
Variant: H, HighLine
Mechanical Version: E, Installation

Technical information

• Control Voltage: 24 V
• Rated Current: 7 A
• Voltage Class: 4, 400 V / 540 V

Input

• Voltage: 3/PE AC 230/400/480 V
• Frequency: 50/60 Hz
• Current: 9.9 / 9.9 / 8.6 A
• Power: 3.9 / 6.9 / 7.1 kVA

Output

• Voltage: 3/PE AC 0 “ 230/400/480 V
• Frequency: 0 to 599 Hz
• Current: 7.0 / 7.0 / 6.1 A
• Power: 2.5 / 4.4 / 4.6 kVA

Expansion Slots

• Slot 1: ProfiNet (communication interface)
• Slot 2: Empty / Reserved
• Slot 3: MM340-PLC, 4 MB
• Slot 4: SM301
