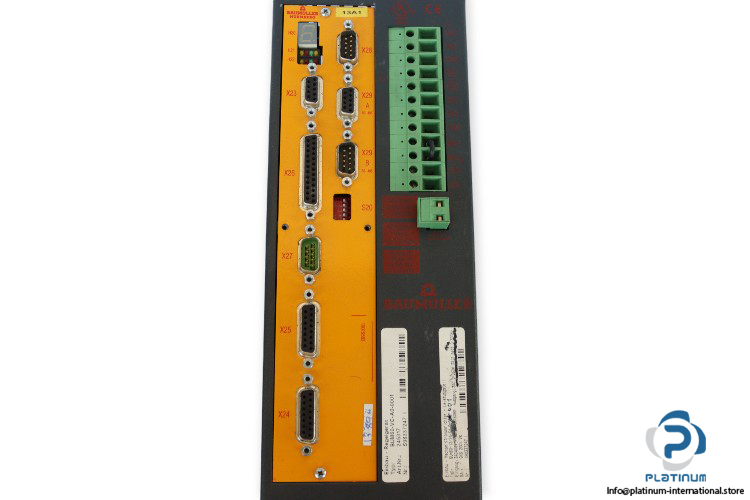

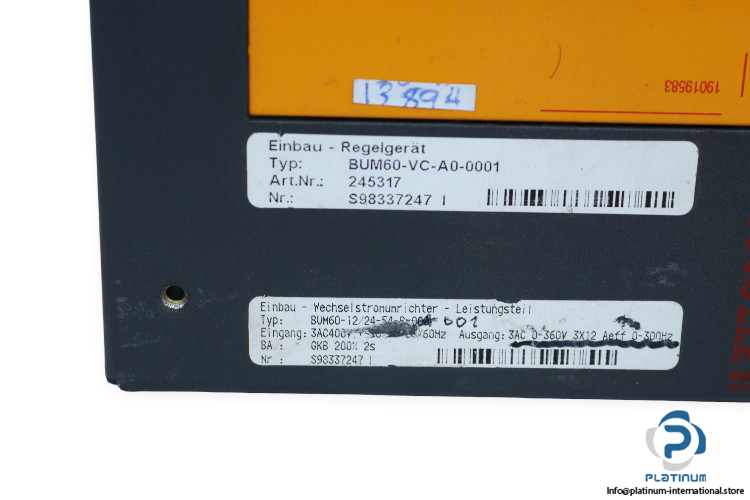

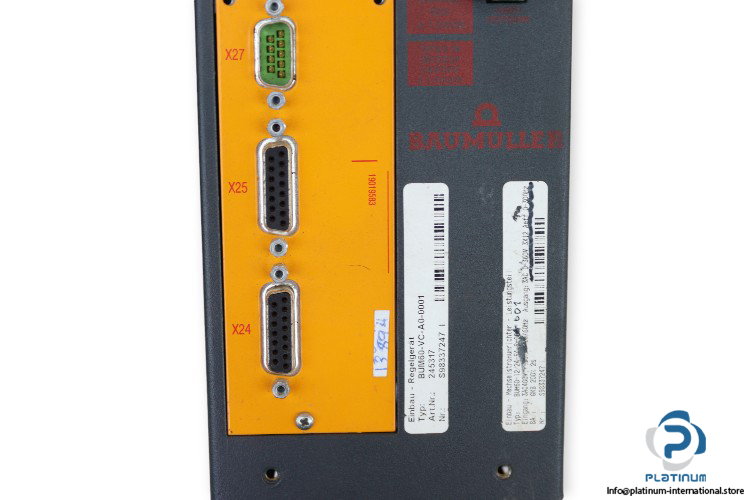

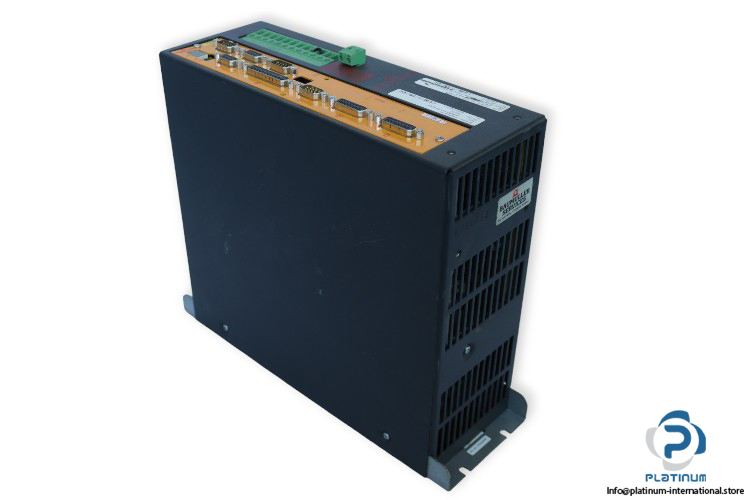

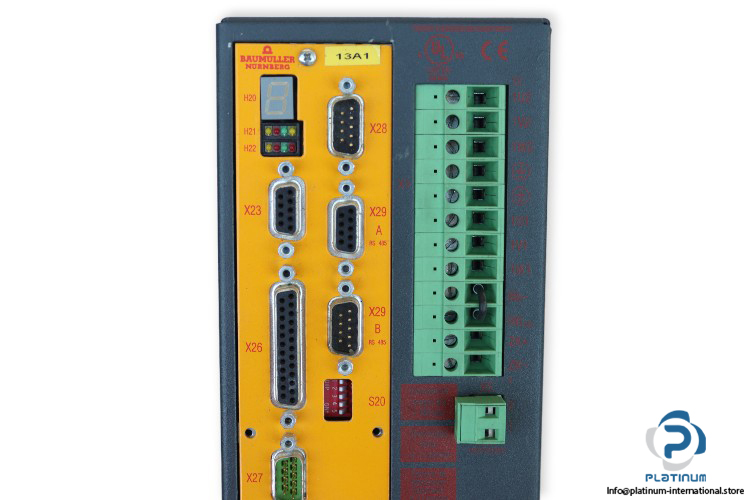

Baumuller Nurnberg BUM60-12/24-54-B-001 Power Unit Module
Used
In stock1 unitReady to ship
1 090,00$
Manufacturer:
BAUMULLER NURNBERG
Type:
Power Unit Module
Model:
BUM60-12/24-54-B-001
Alternative Model:
BUM60-VC-A0-0001
Art No:
245317
Part No.:
S98337247
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: BAUMULLER NURNBERG
Type: Power Unit Module
Model: BUM60122454B001
Alternative Model: BUM60VCA00001
Art No: 245317
Part No.: S98337247
Series: BUM60
Input:
Rated Voltage: 3-Phase 400 … 480 V AC
Rated Current: 16 A
Frequency: 50 … 60 Hz
DC Link Capacitor: 220 µF
Output:
Rated Voltage: 3-Phase 0 … 360 V AC
Rated Current: 12 … 24 Aeff
Frequency: 0 … 300 Hz
Power: 4.5 kW / 8 kVA
Power Loss: 170 W
Protection Class: IP20
Operation Temperature: 0 … 45 °C
Dimensions: 305 x 104 x 260 mm
