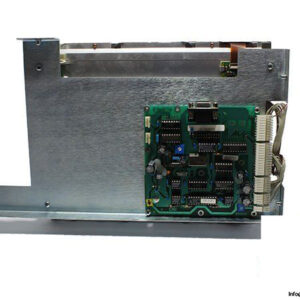

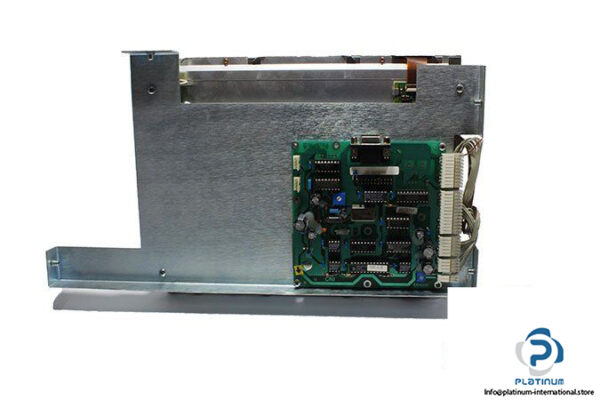

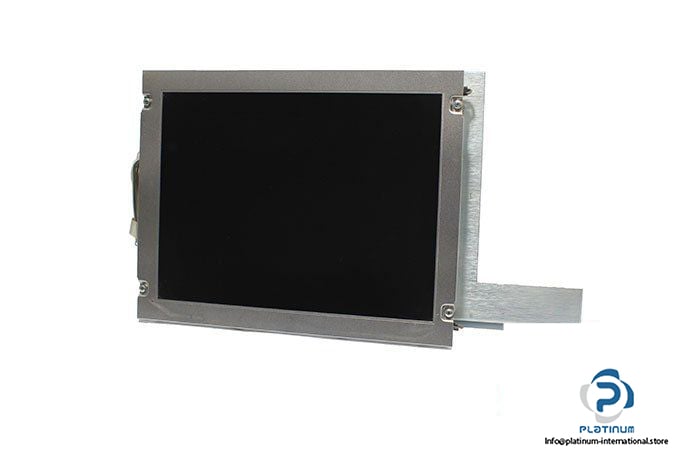

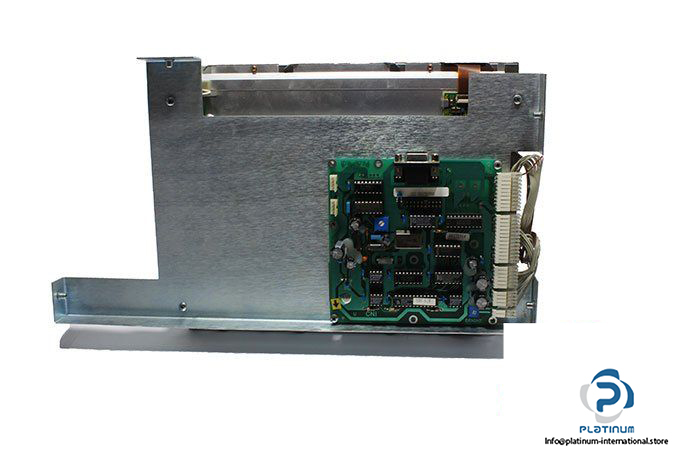

NEC NL6448AC33-15 TFT Color LCD Module

Manufacturer: NEC

Type: TFT Color LCD Module

Model: NL6448AC33-15

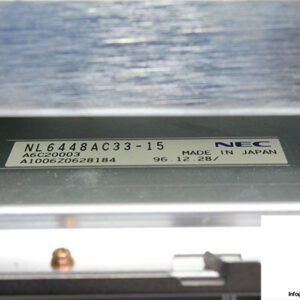

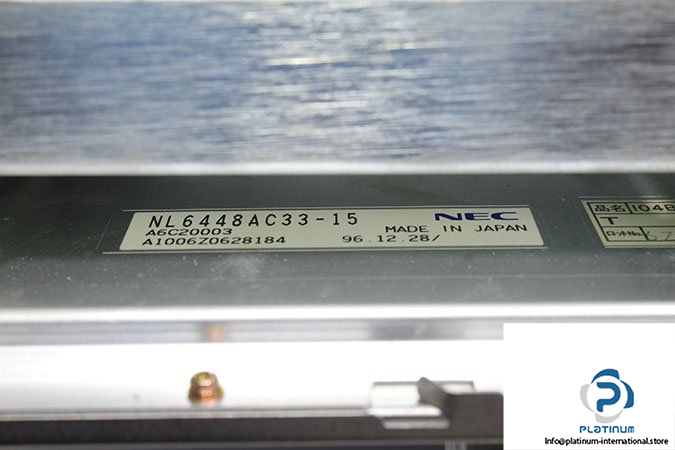

Part No.: A6C20003



Applications:

• Personal computers (PC). Word processor
• Display terminals for control system
• Monitors for process controller

Supply Voltage: 0 … 15 V, –0.3 … 6 V

Logic Signals Input Voltage: –0.3 … VCC+0.3

Analog RGB Input Voltage: –4.0 … 4.0 V

Module Size: 251.0 ± 1.0 X 196.0 ± 1.0 X 18.5 mm

Display Area: 211.2 X 158.4 mm

Number of Pixels: 640 X 480 dot

Dot Pitch: 0.11 X 0.11 mm

Pixel Pitch: 0.33 X 0.33 mm

Pixel Arrangement: RGB (Red, Green, Blue) vertical stripe

Display Colors: Full color

Operating Temperature: 0 … 50°C

Weight: 0.78 Kg
