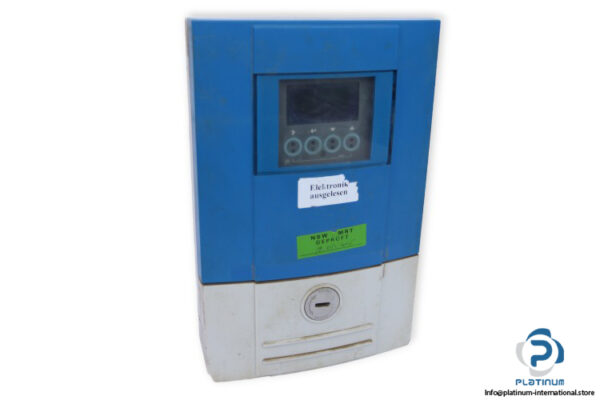

KROHNE IFC300 FLOWMETER SIGNAL CONVERTER

The KROHNE IFC300 is a high-precision flowmeter signal converter designed for reliable measurement and monitoring in industrial applications. Built with a robust wall-mounted housing, it delivers accurate performance under demanding environmental conditions.

Manufacturer: KROHNE
Type: Flowmeter Signal Converter
Model: IFC300
Part No.: CG300116AE
S/N: A05 15657

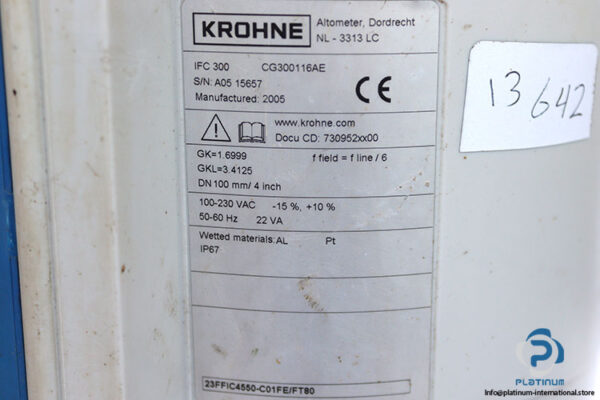

Technical Information

• Used for: Wall-mounted housing
• Rated Voltage: 100 / 230 V AC
• Frequency: 50 / 60 Hz
• Nominal Flow Rate: 84.82 m³/h
• Nominal Size: 100 mm / 4 inch
• Power Consumption: 22 VA
• Sensor Constant GK: 1.6999
• Sensor Constant GKL: 3.4125
• Ambient Temperature: -40 / +65 °C
• Protection: IP67
• Wetted Material: Aluminum
• Dimensions: 202 x 120 x 155 mm
