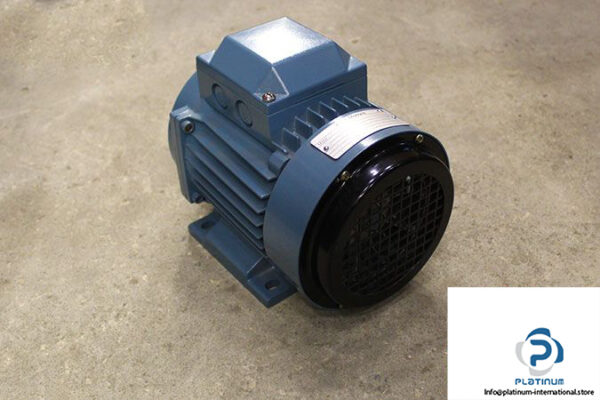

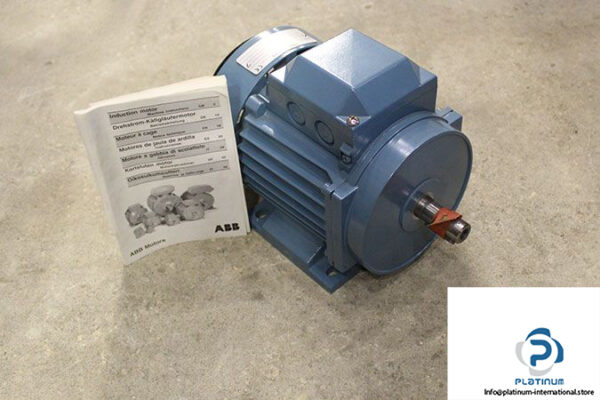

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: M2AA080BG3AA082002-ASAS1

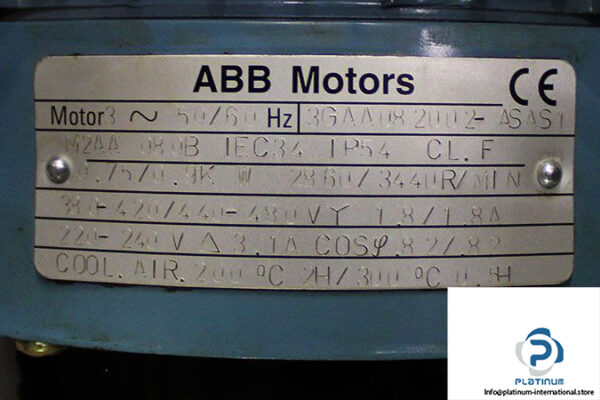

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 2860 r/min

Rated Power: 0.75 kW

Rated Current (Star): 1.8 A

Rated Current (Delta): 3.1 A

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 3440 r/min

Rated Power: 0.9 kW

Rated Current (Star): 1.8 A

Power Factor: 0.82

Shaft Diameter: 19 mm

Motor Size: 80

Number of Poles: 2

Protection Class: IP54

Insulation Class: F

Weight: 9.88 kg
