ABB M3JP 132SMB 2 3-PHASE Electric Motor

ABB M3JP 132SMB 2 3-PHASE Electric Motor

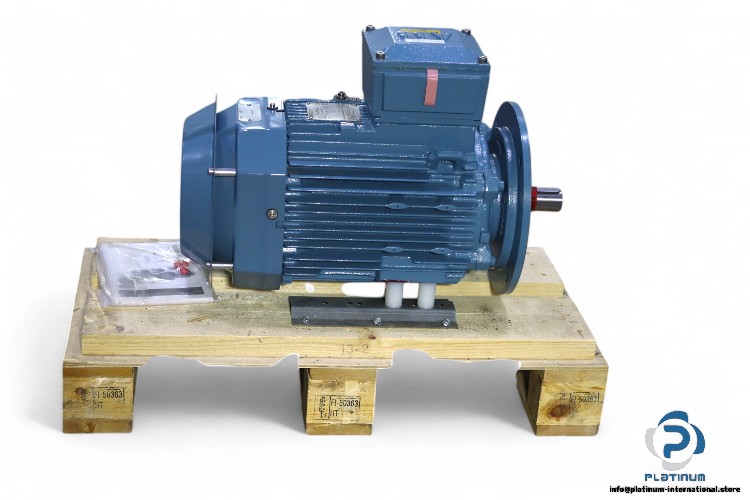

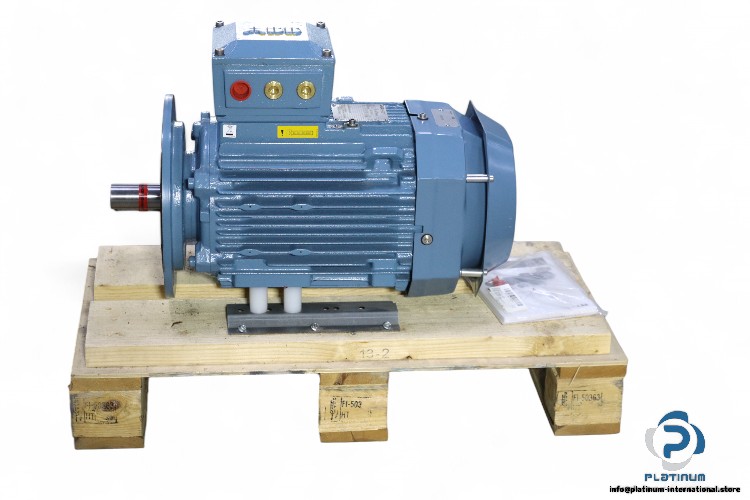

The ABB M3JP 132SMB 2 3-Phase Electric Motor is designed for high efficiency and reliable performance in industrial applications. With a rated power of 5.5 kW, 2911 RPM speed, and explosion protection (Ex d II B T4 Gb), this motor is ideal for demanding environments. It features robust construction and meets high protection standards (IP55) for enhanced safety and performance.

Manufacturer: ABB

Type: 3-PHASE Electric Motor

Model: M3JP 132SMB 2

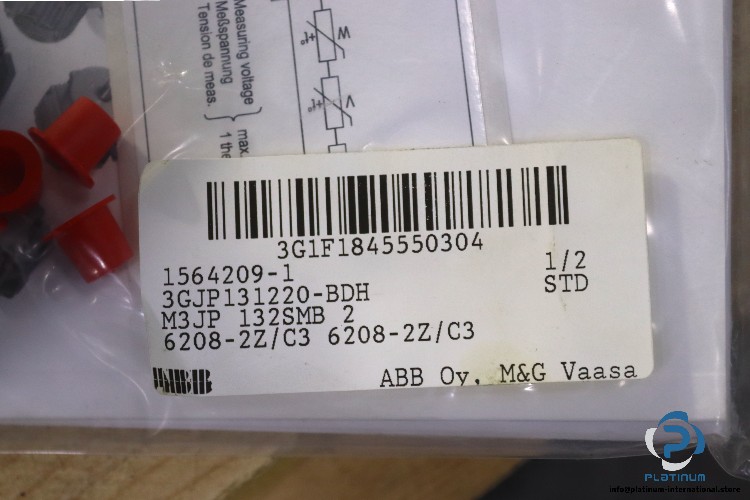

Part No.: 3GJP131220-BDH

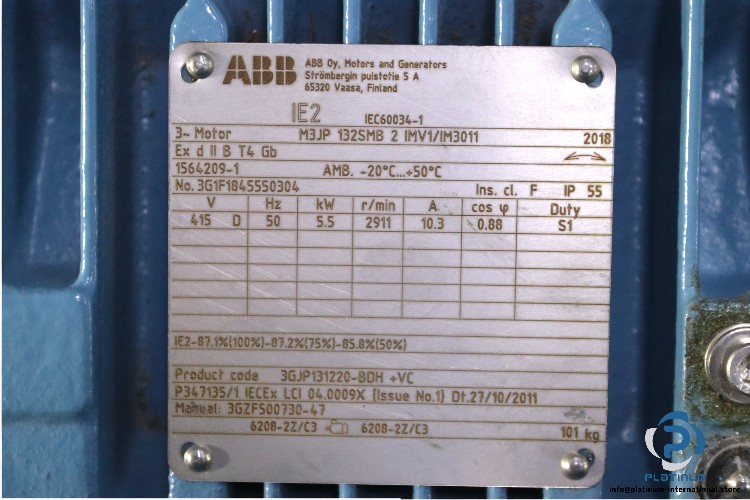

Technical Specifications

• Explosion Protection: Ex d II B T4 Gb (Ex)
• Frame Size: 132
• Rated Voltage [V]: 415D
• Rated Speed: 2911 RPM
• Rated Frequency: 50 Hz
• Rated Power: 5.5 kW
• Power Factor: 0.88
• Rated Current: 10.3 A
• Insulation Class: F
• Duty: S1
• Mounting Position: IMV1/IM3011
• Protection Class: IP55
• Ambient Temperature: -20 to 50 °C
