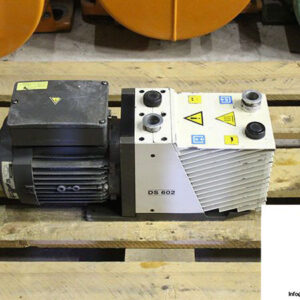

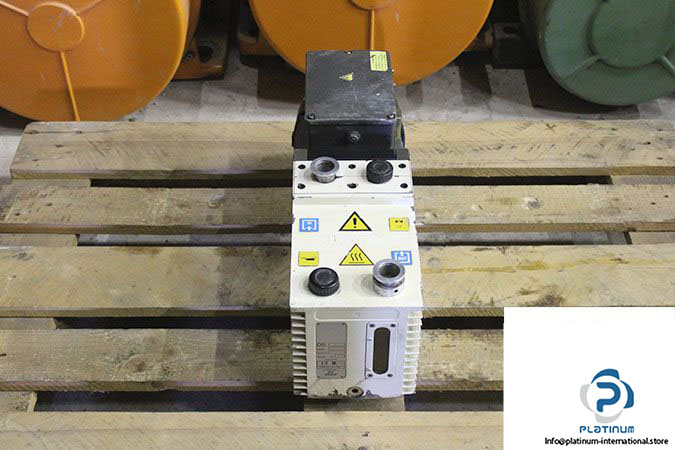

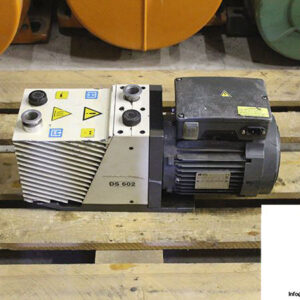

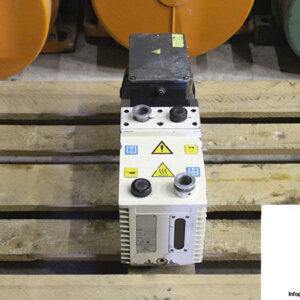

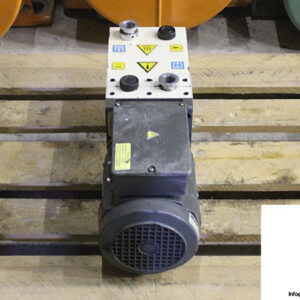

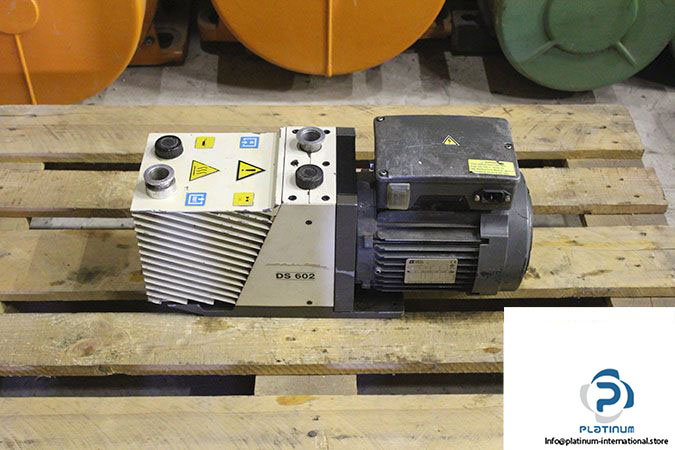

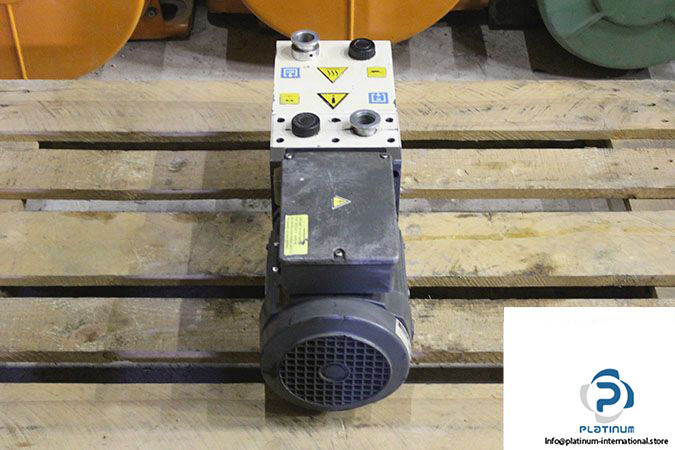

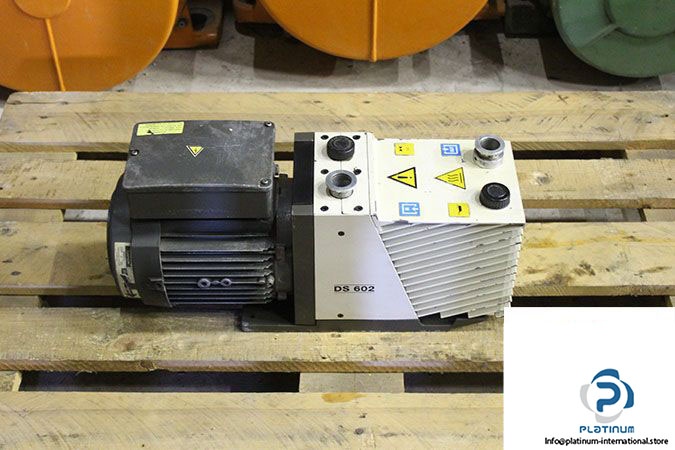

Manufacturer: Agilent Technologies / Varian

Type: Dual Stage Rotary Vane Vacuum Pump

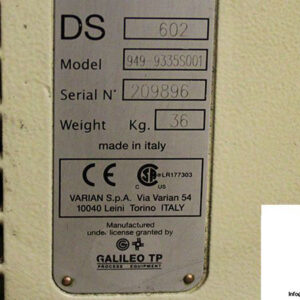

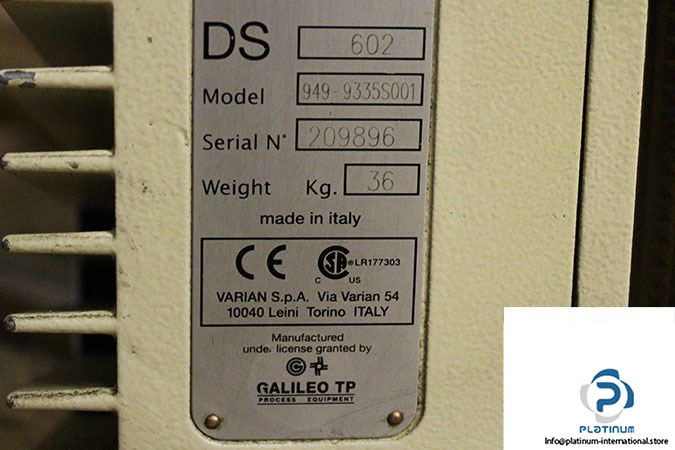

Model: DS602

Part Nr.: 949-9335S001

Ultimate Partial Pressure [mbar]: 10^-4

Ultimate Total Pressure [mbar]: 2 x 10^-3

Free Air Displacement [l/min]: 540/605

Pumping Speed at 60Hz  [cfm]: 18.3

Pumping Speed at 50Hz [m³/h]: 26

Water Vapor Tolerance [mbar]: 30

Water Vapor Capacity [g/h]: 550

Oil Capacity Min/Max [l]: 0.6/1

Motor Rating 1ph [kW]: 1.1

Nominal Rotation Speed [rpm]: 1500/1800

Inlet Flange [DN]: 25

Exhaust Flange [DN]: 25

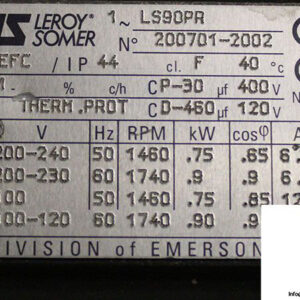

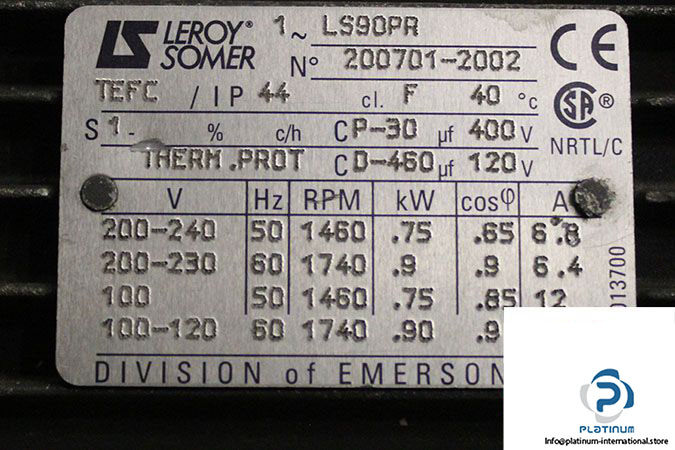

Attachment: Leroy Somer LS90PR Single Phase E-Motor

Manufacturer: Leroy Somer

Type: Single Phase E-Motor

Model: LS90PR

Rated Voltage [V]: 200-240/200-230

Rated Current [A]: 6.8/6.4

Power Factor [%]: 0.75/0.9

Rated Voltage [V]: 100/100-120

Rated Current [A]: 12/12.8

Power Factor [%]: 0.85/0.9

Rated Power [kW]: 0.75/0.9

Rated Speed [rpm]: 1460/1740

Protection Class [IP]: 44

Duty: S1 Cont.

Frequency [Hz]: 50/60

Ambient Temperature [°C]: 40

Insulation Class: F
