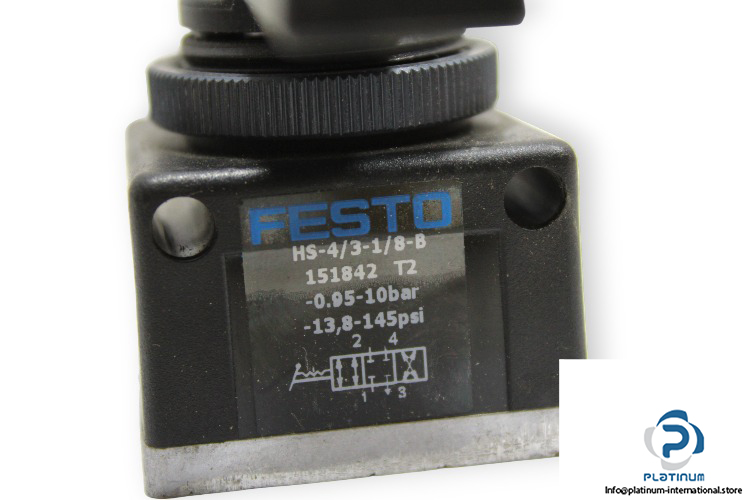

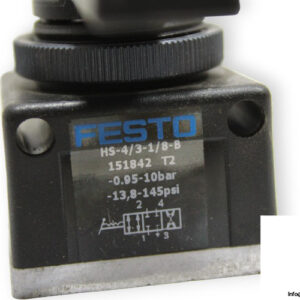

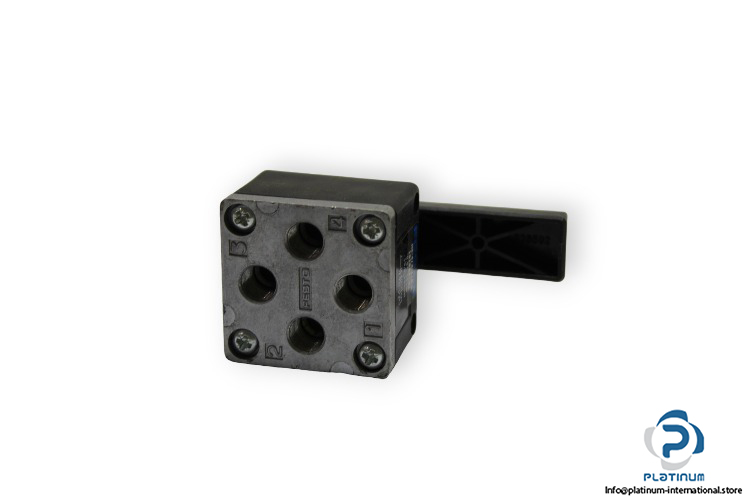

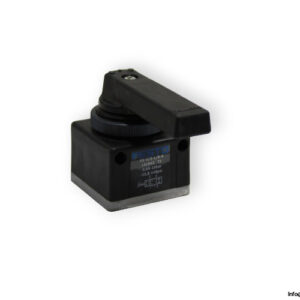

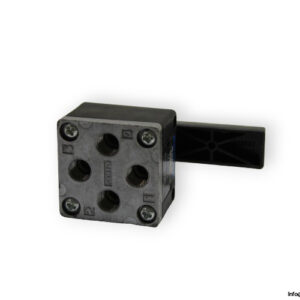

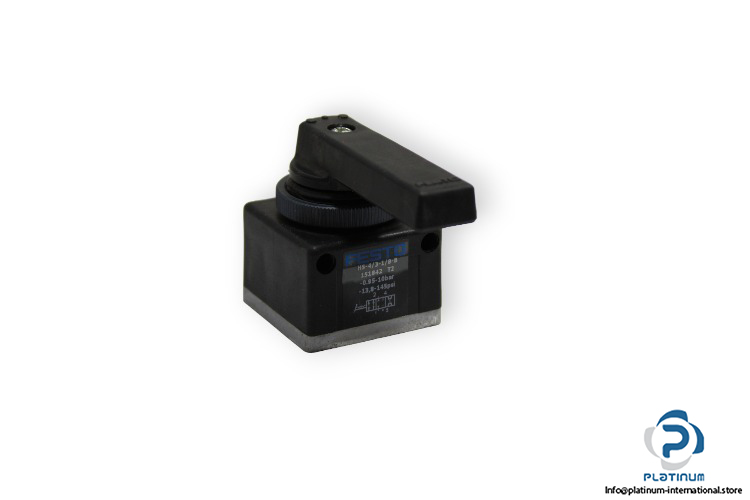

FESTO HS-4/3-1/8-B HAND LEVER VALVE

The FESTO HS-4/3-1/8-B is a manually operated hand lever valve designed with a rotary slide mechanism. With high durability and a nominal flow rate of 700 l/min, this 4/3-way valve is ideal for controlling air flow in demanding pneumatic systems.

Manufacturer: FESTO
Type: Hand Lever Valve
Model: HS-4/3-1/8-B
Part No.: 151842

Technical Information

• Fluid: Air
• Design: Rotary slide valve
• Function: 4/3 way
• Type of Actuation: Manually
• Operating Pressure: -0.95 to 10 bar
• Nominal Flow Rate: 700 l/min
• Pneumatic Connection: G1/8
• Material: Plastic
• Ambient Temperature: -20 to 60 °C
