Manufacturer: LSK
Type: Linear Guideway Block
Model: FL 15CA
Size: 15

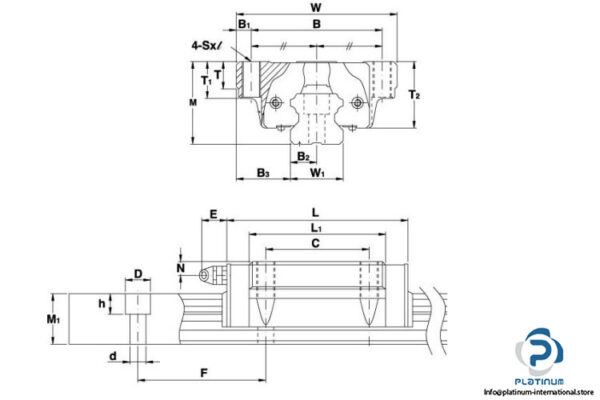

Dimensions
Total Height H: 24 mm
Block Height T2: 19.5 mm
Width W: 47 mm
Block Length L: 56.2 mm
B: 38 mm
C: 30 mm
L1: 38.2 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes
Basic Load Ratings:
Dynamic C: 850 kgf
Static C0: 1380 kgf
Other Linear Bearings

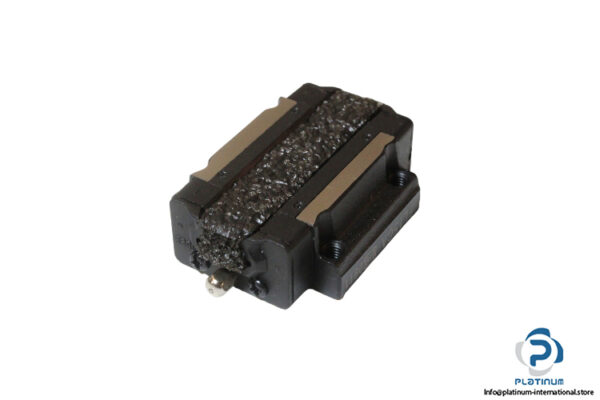

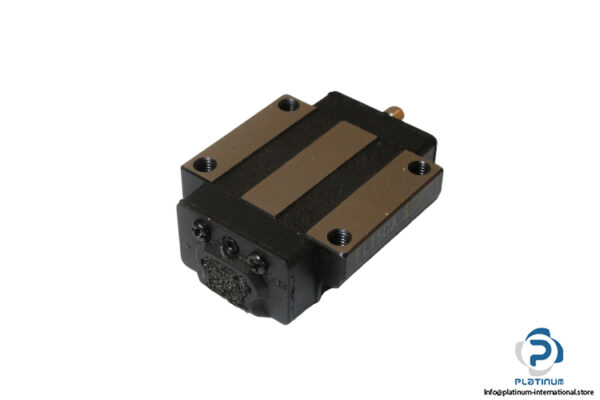

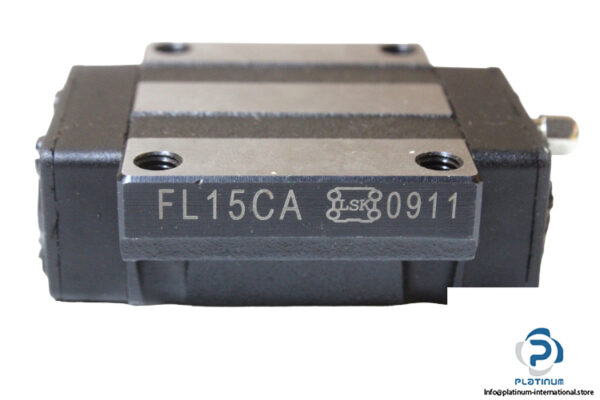

LSK FL15CA LINEAR BEARING BLOCK
In stock: 2 pcs
Very low
Hurry! Only 2 left in stock.
| Weight | 0,22 kg |
|---|
