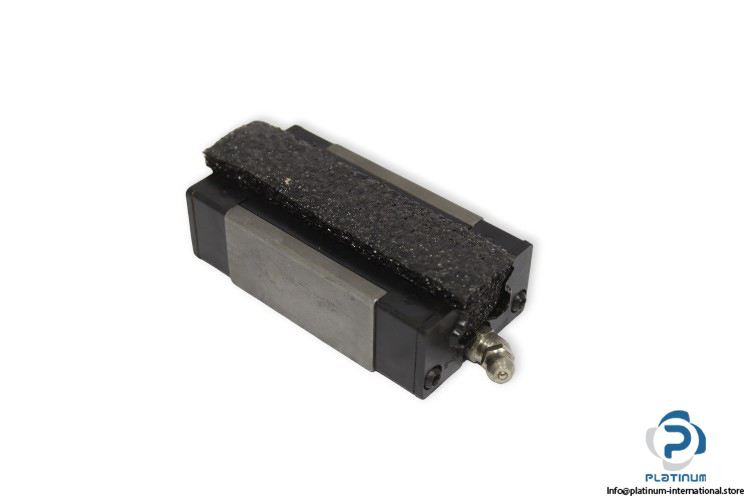

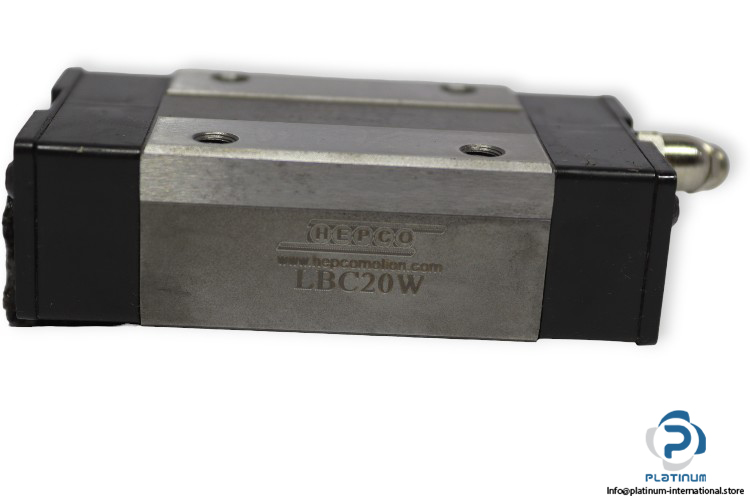

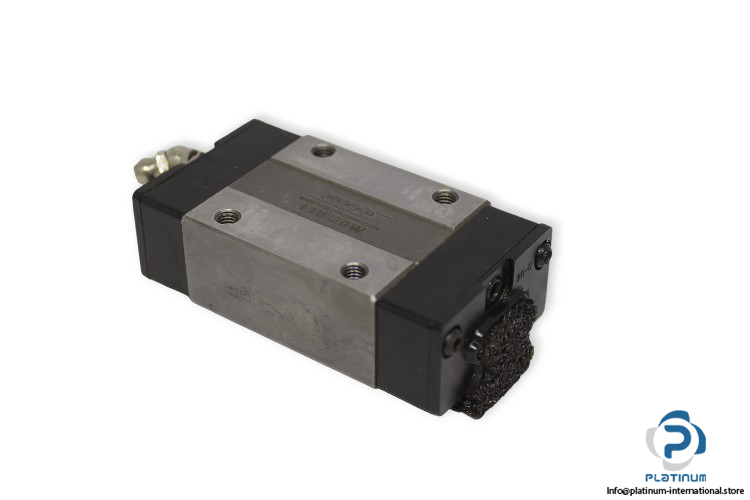

Hepco LBC20W Linear Ball Guide

Manufacturer: HEPCO
Type: Linear Ball Guide
Model: LBC20W

Block Type: Standard-without flange

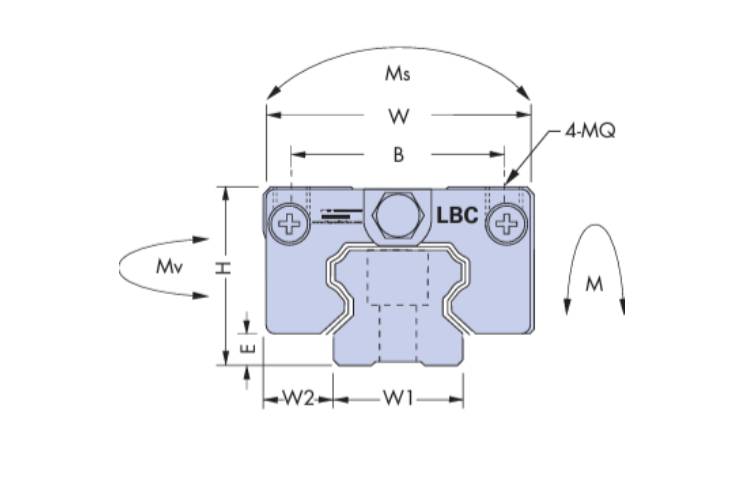

Outer dimensions:
Total Height H: 28 mm
Block Width W: 42 mm
Block Length W2: 11 mm

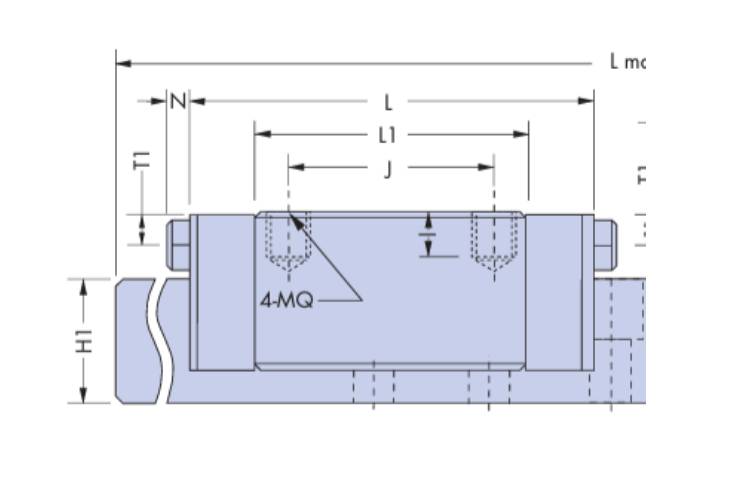

LBC block dimensions:
Height: 23 mm
B: 32 mm
J: 32 mm
L: 77.8 mm
L1: 48.8 mm
Basic Load Rating:
Dynamic C: 14500 N
Static C0: 25600 N
Mounting Dimensions:
Oil Hole: M6x1
