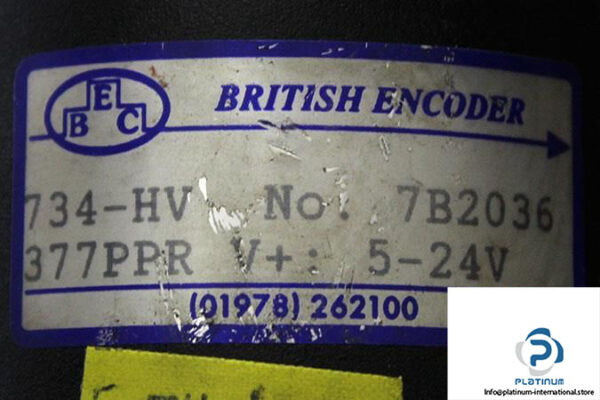

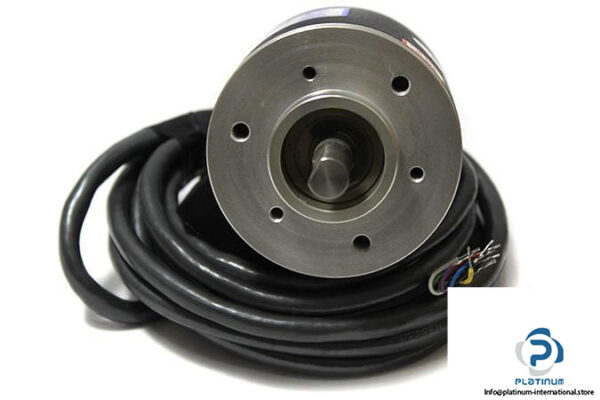

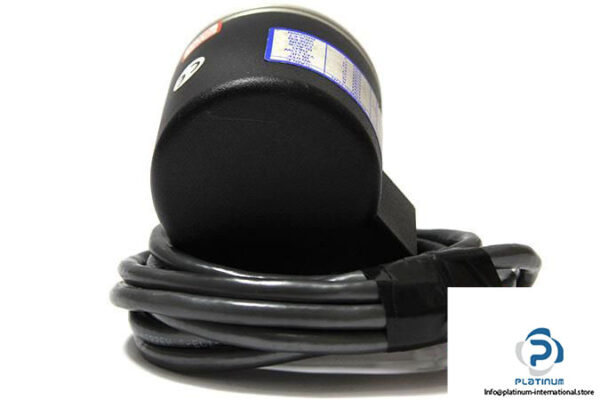

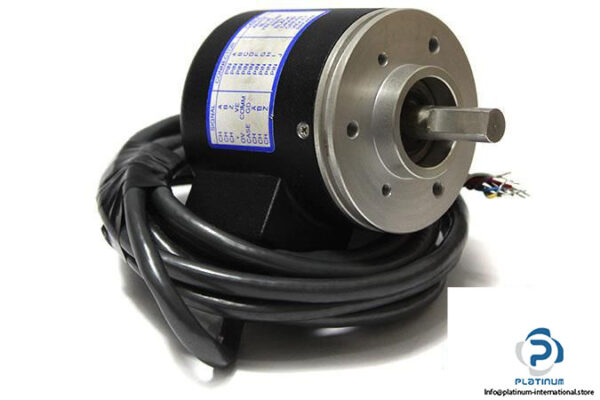

BRITISH ENCODER 734-HV INCREMENTAL ENCODER
The British Encoder 734-HV is a high-precision incremental encoder designed for accurate position and speed feedback in automation systems. With its solid shaft, high-resolution output, and differential driver circuitry, this encoder delivers reliable performance across a wide range of industrial applications.
Manufacturer: BRITISH ENCODER / BEC
Type: Incremental Encoder
Model: 734-HV
Part No.: 7B2036
Technical Information
- Shaft Type: Solid Shaft
- Shaft Diameter: 10 mm
- Resolution: 377 Pulses per Revolution (PPR)
- Voltage Supply: 5 / 24 VDC
- Max. Output Frequency: 200 kHz
- Current Consumption: 80 mA

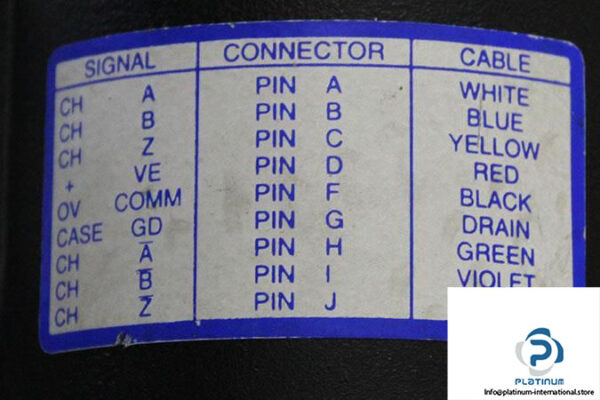

- Output Circuit: Differential Driver (RS422)
- Protection Class: IP54
