Novotechnik IP-6501-A502 Angular Potentiometer

Available on request

300,00$

ANGULAR POTENTIOMETER

Novotechnik IP6501A502 is a high-precision angular potentiometer with a sealed 6 mm stainless steel shaft, 5 kohm resistance, ±0.075% linearity, and IP65 protection, designed for accurate positioning in industrial conditions.

Manufacturer
NOVOTECHNIK
SKU
1043982
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

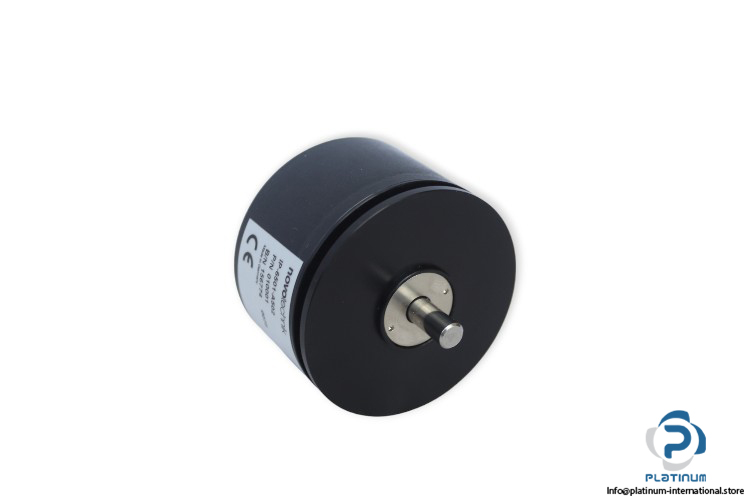

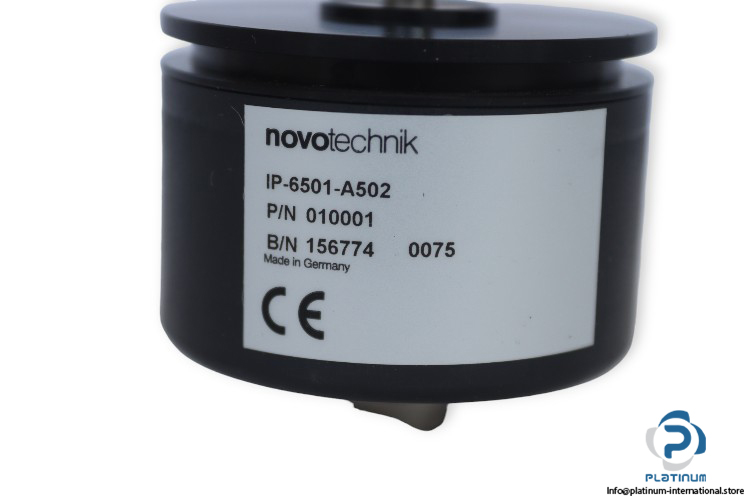

NOVOTECHNIK IP6501A502 ANGULAR POTENTIOMETER

The Novotechnik IP6501A502 is a high-precision angular potentiometer engineered for demanding industrial environments. With robust materials and excellent repeatability, it ensures accurate angular position measurement across a wide temperature range.

Manufacturer: Novotechnik

Type: Angular Potentiometer

Model: IP6501A502

Part No.: 010001

Ref No.: 156774 0075

Nominal Resistance5 kohm
Max. Permissible Applied Voltage42 V
Shaft Diameter6 mm
Shaft TypeSealed Shaft
Max. Wiper Current (Malfunction)10 mA
Case MaterialAluminum anodized, shaft passage sealed
Shaft MaterialStainless steel
BearingsStainless steel ball bearings
Resistance ElementConductive plastic
Wiper AssemblyPrecious metal multi-finger wiper
Repeatability0.002% (0.007°)
Independent Linearity±0.075%
Electrical Connections5-pin connector
Protection ClassIP 65
Temperature Range-40 / +100 °C
