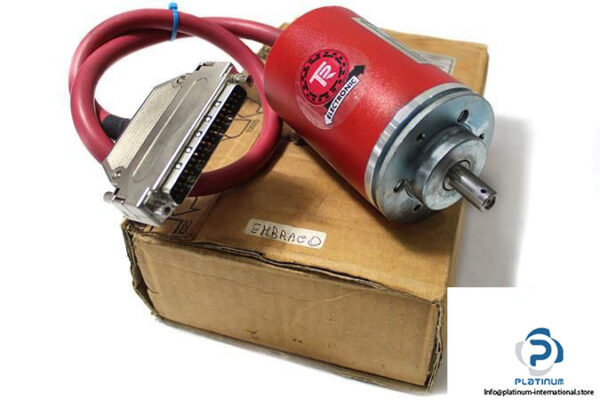

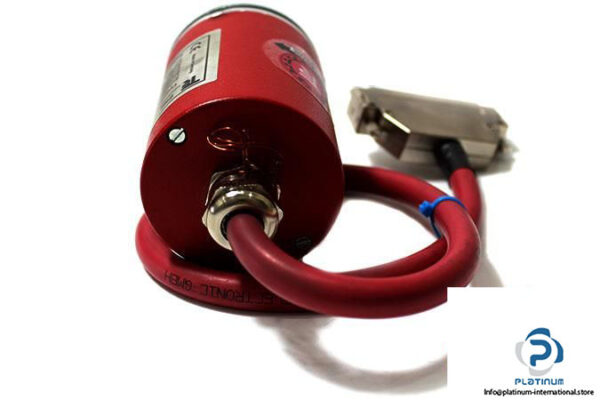

TR ELECTRONIC CE 65M ABSOLUTE ENCODER

The TR Electronic CE 65M Absolute Encoder delivers high-resolution positioning feedback and flexible interfacing for industrial automation systems. Designed for reliability in demanding environments, it ensures precise performance across a range of motion control applications.

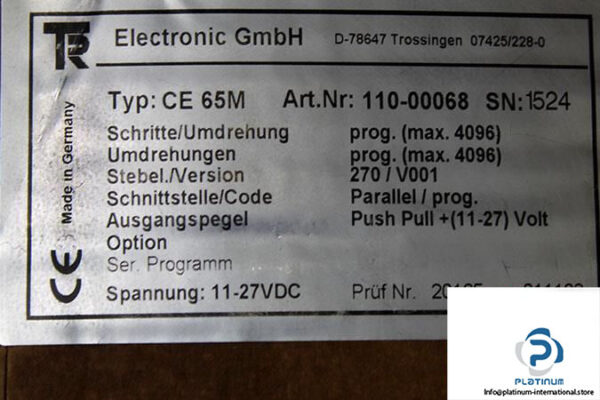

Manufacturer: TR Electronic
Type: Absolute Encoder
Model: CE 65M
Art. Nr.: 110-00068
Comas Part No.: 0.519.350.100.002

Technical Information

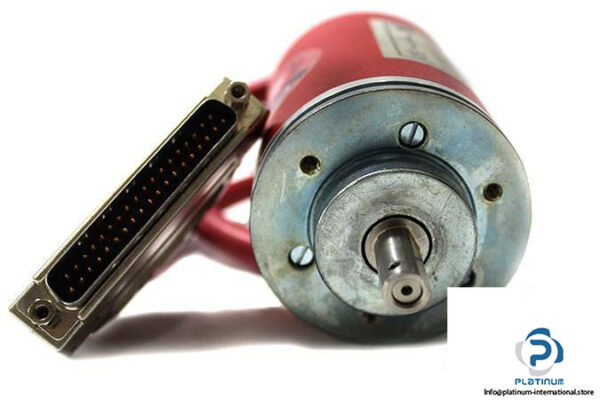

• Shaft Diameter: 10 mm
• Resolution: 4096 steps/rev (12-bit)
• Voltage Supply: 11 / 27 VDC
• Output Code: Programmable (binary, Gray)
• Baud Rate: 300 kbps net
• Encoder Interface: Two-wire remote bus for INTERBUS-S, RS422
• Data Refresh: 0.5 ms
• Temperature Range: 0 / 60 °C
