Sick AFM60B-TGRK000S05 Absolute Encoder
Used
In stock36 unitsReady to ship
ABSOLUTE ENCODER
SICK AFM60BTGRK000S05 is a 15-bit resolution absolute encoder with SSI interface, 4,096 revolutions, and robust aluminum housing. It ensures reliable position feedback in extreme industrial conditions.15-bit4.096AbsoluteAFM60BTGRK000S05Encoderindustrial-gradeInterfaceIP67-ratedPrecisionResolutionrevolutionsSickSSITemperaturetolerancewideWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

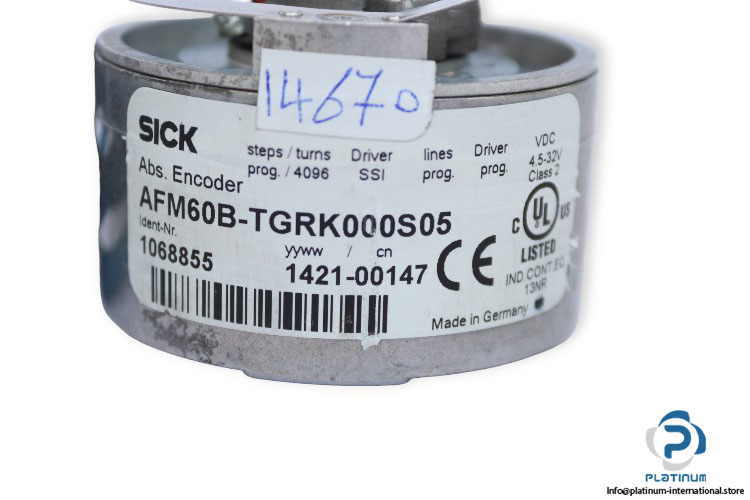

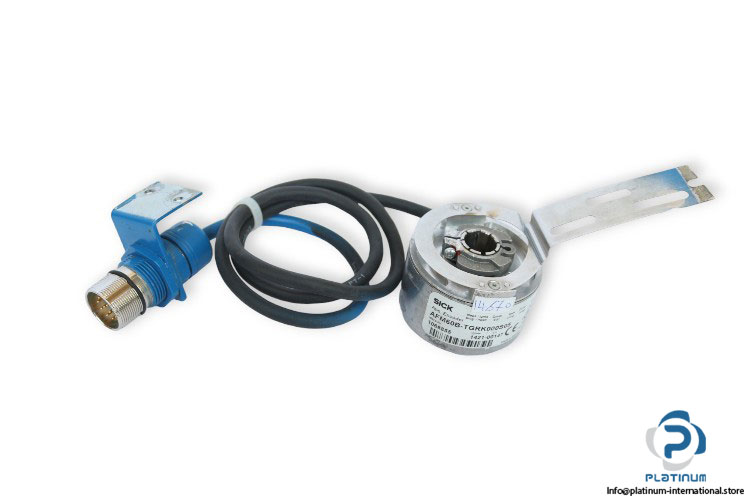

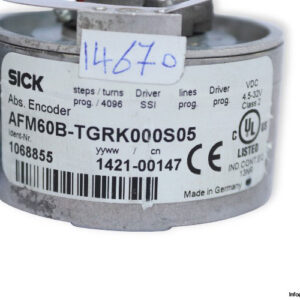

SICK AFM60BTGRK000S05 ABSOLUTE ENCODER
Engineered for high-resolution precision and reliability, the SICK AFM60BTGRK000S05 is a robust absolute encoder designed to perform in harsh industrial environments. Its compact design, versatile interface, and durable build make it ideal for complex automation systems and motion control tasks.
Manufacturer: SICK
Type: Absolute Encoder
Model: AFM60BTGRK000S05
Part No.: 1068855 1421-00147
Series: AFM60
| Number of Steps Per Revolution (Resolution Max.) | 32,768 (15 bit) |
| Number of Revolutions | 4,096 (12 bit) |
| Voltage Supply | 4.5 / 32 V DC |
| Operating Current | 30 mA |
| Power Consumption | 0.7 W |
| Communication Interface | SSI |
| Initialization Time | 50 ms |

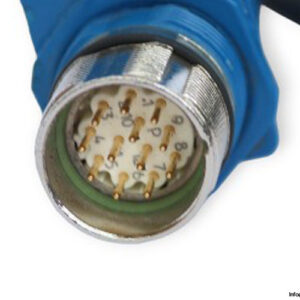

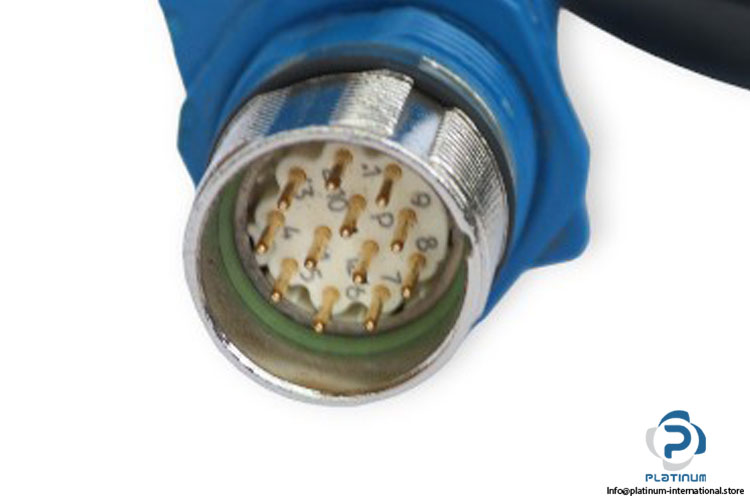

| Connector Type | Cable Connector, Male, M23, 12-Pin |
| Material | Aluminum Die Cast |
| Protection Class | IP65 / IP67 |
| Operating Temperature | -40 / 100 °C |
| Shaft Diameter | 14 mm |
| Encoder Diameter | 60 mm |
