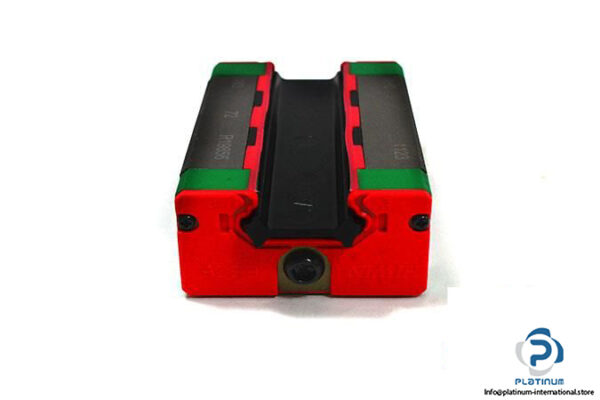

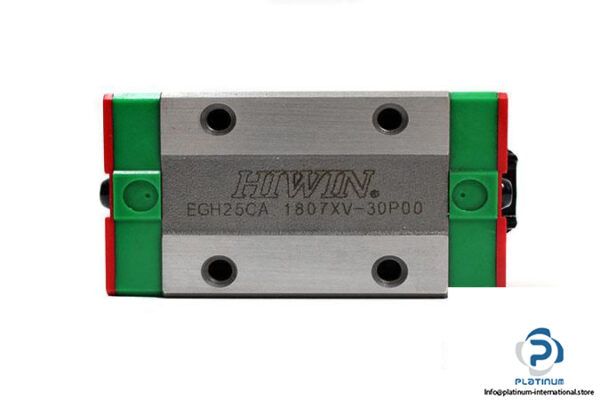

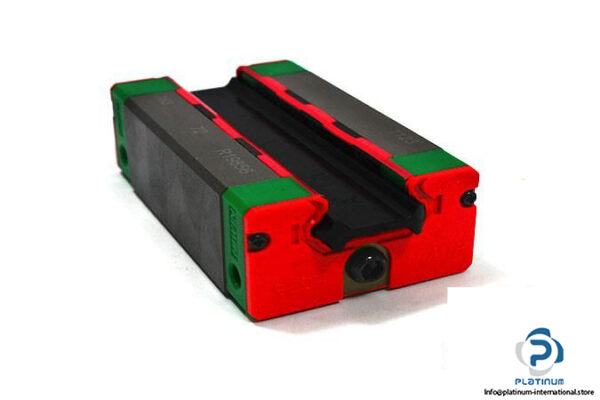

HIWIN EGH 25CA 1807XV-30P00 LINEAR GUIDEWAY BLOCK

This heavy-load linear guideway block from Hiwin delivers high rigidity and smooth linear motion in industrial automation systems. Engineered with top-mounting design and square-type configuration, it ensures precise positioning and long service life in demanding environments.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGH 25CA 1807XV-30P00

Technical Information

• Size: 25 mm
• Total Height H: 33 mm
• Block Width W: 48 mm
• Block Length L: 82.6 mm
• Block System: 26 mm
• Distances Between Holes: 35, 35 mm
• Thread Size: M6 x 9
• Basic Dynamic Load Rating: 16.27 kN
• Basic Static Load Rating: 32.40 kN
• Rail Width: 23 mm
• Rail Height: 18 mm
• Block Type: Square
• Load Type: Heavy Load
• Block Mounting Type: From Top
