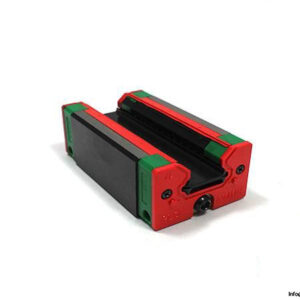

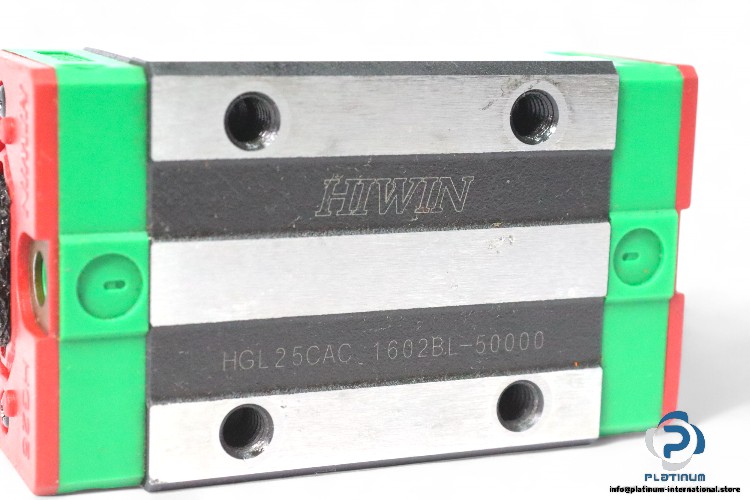

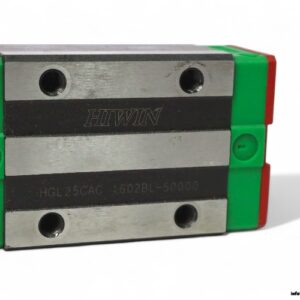

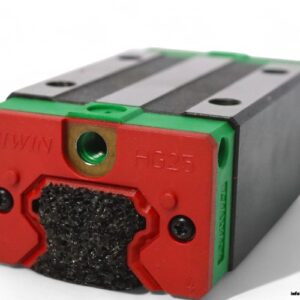

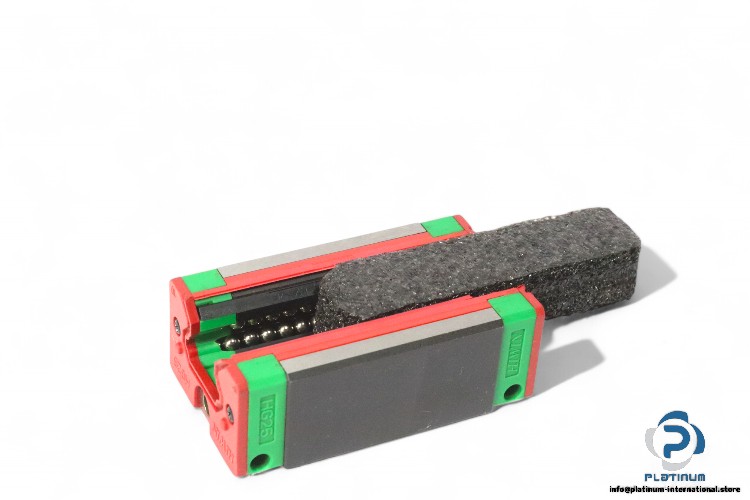

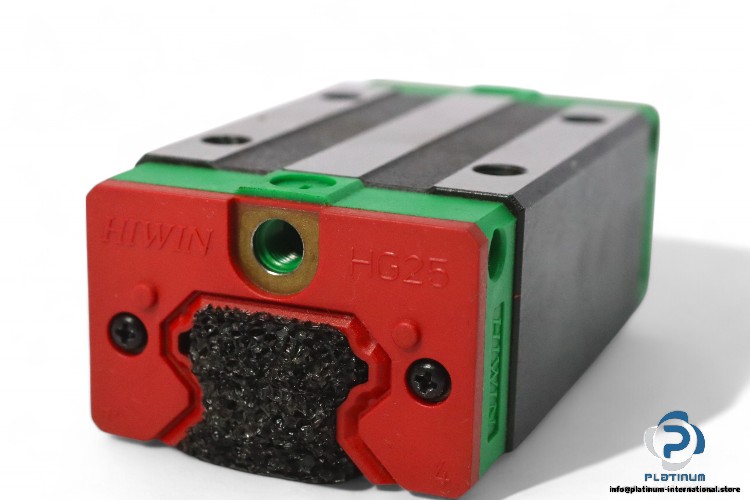

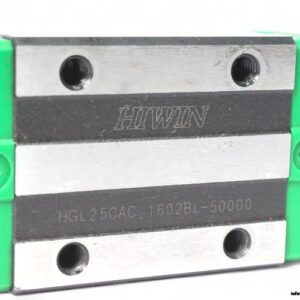

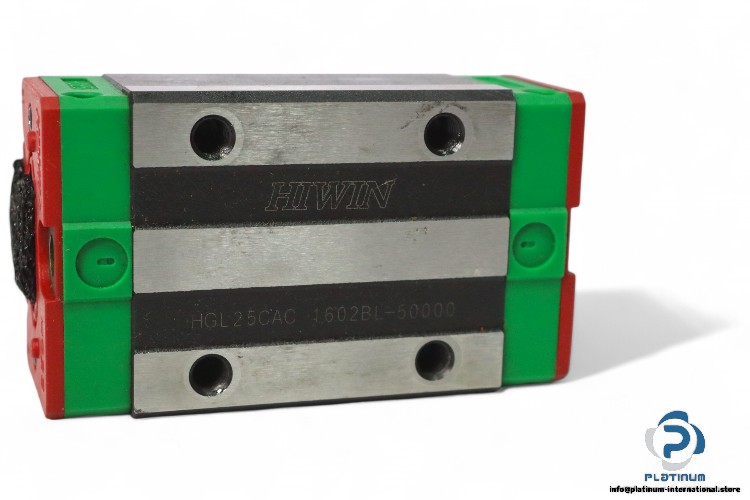

Hiwin HGL25CA Linear Guideway Block

In stock19 unitsReady to ship

74,29$

LINEAR GUIDEWAY BLOCK

Heavy-duty square-type linear block by Hiwin, model HGL 25CA, with 25 mm size and high load ratings, ideal for compact and precise motion applications.

Manufacturer
HIWIN
SKU
965166
Condition
New
Used In stock
This product is also available used
View Used Version →
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

HIWIN HGL 25CA LINEAR GUIDEWAY BLOCK

This precision-engineered linear guideway block from Hiwin is designed for heavy load applications requiring high rigidity and smooth linear motion. Featuring a square low-profile design, it is ideal for use in industrial automation, machine tools, and positioning systems where compact size and high load capacity are essential.

Manufacturer: Hiwin

Type: Linear Guideway Block

MNR: HGL 25CA

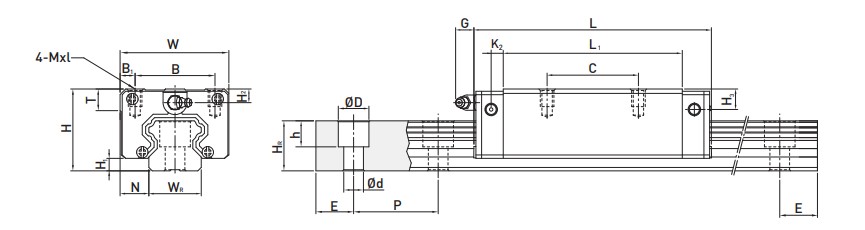

Size25 mm
Total Height (H)36 mm
Block Width (W)48 mm
Block Length (L)84 mm
Block Height30.5 mm
Distances Between Holes35 mm, 35 mm
Rail Width23 mm
Rail Height22 mm
Block TypeSquare Type (Low)
Load TypeHeavy Load
Block Mounting TypeFrom Top
Thread SizeM6x6
Basic Dynamic Load Rating (C)34.9 kN
Basic Static Load Rating (C‚)52.82 kN
