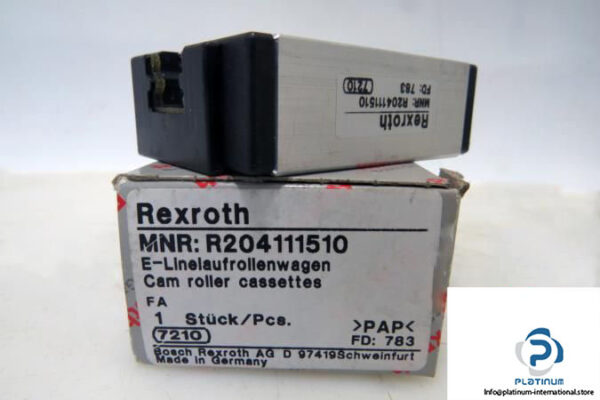

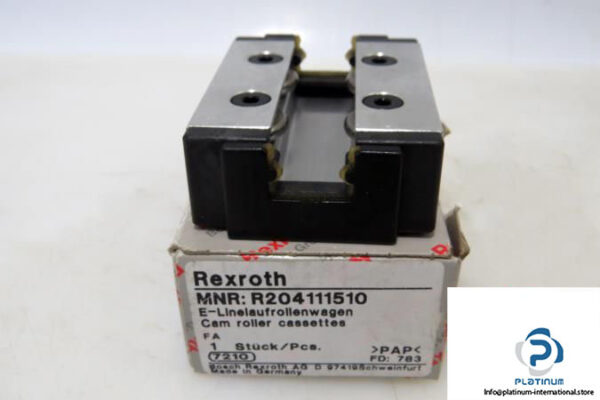

Manufacturer: REXROTH
Type: Cam Roller Runner Blocks
MNR: R2041 115 10

Size: 15 mm
Accuracy class: E
Dimensions:
AxA1xA2xA3: 47×23.5x15x16 mm
BxB1xB2: 64x51x59 mm
HxH1: 24×19.8 mm
Dynamic Load rating C: 940 N
F_y max / F_y0max: 320 N
F_z max: 120 N
Fz₀max: 200 N
Moments:
Dynamic Torsional Moment Load Capacity M_t: 7 Nm
Dynamic Torsional Moment Load Capacity M_t max: 1.1 Nm
Dynamic longitudinal moment load capacity M_L: 11.5 Nm
Dynamic longitudinal moment load capacity M_L max: 1.8 Nm
