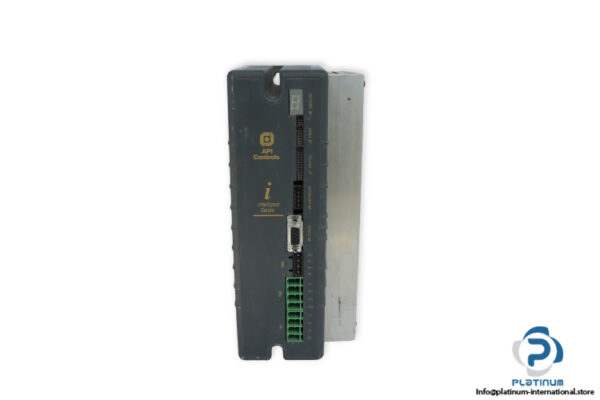

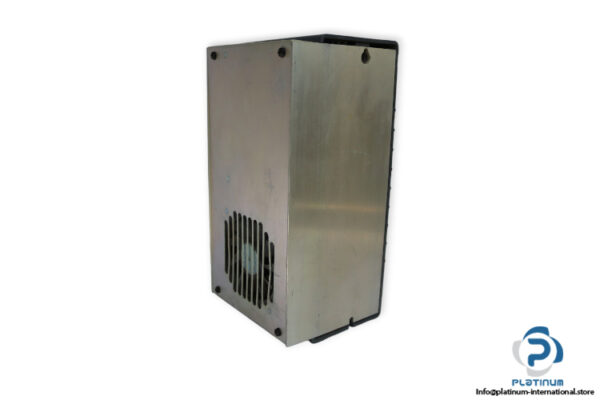

API CONTROLS PS3310IE DIGITAL SERVO DRIVE
The API Controls PS3310IE is an intelligent digital servo drive engineered for brushless DC motor applications. Designed for high-performance industrial automation, it offers versatile control, reliable feedback integration, and compact form for space-constrained environments.
Manufacturer: API Controls
Type: Digital Servo Drive

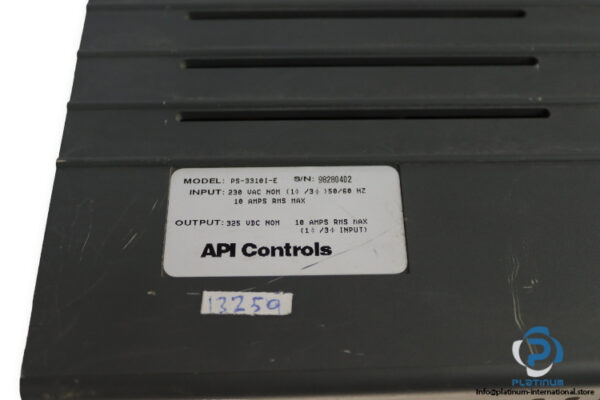

Model: PS3310IE
Serial No.: 98280402
Family: Intelligent
Technical Information
- Input Voltage: 230 V AC / 1,3 phase
- Input Current: 10 A max.
- Input Frequency: 50/60 Hz
- Output Voltage: 325 V DC
- Output Current: 10 A max.
- Feedback Device: Encoder / Hall
- Analog Inputs: 2 Differential, ±10 VDC, 10-bit Resolution
- Digital Inputs: 7 Total (ENABLE, RESET, 3 Isolated 5“30 VDC Configurable, 2 HSI3)
- Motor Types: Brushless DC
- Analog Outputs: None
- Digital Outputs: DRIVEOK, FOLDBACK, 2 Isolated (5“30 VDC, 5 mA Max)
- Dimensions: 254 x 233 x 94.5 mm
