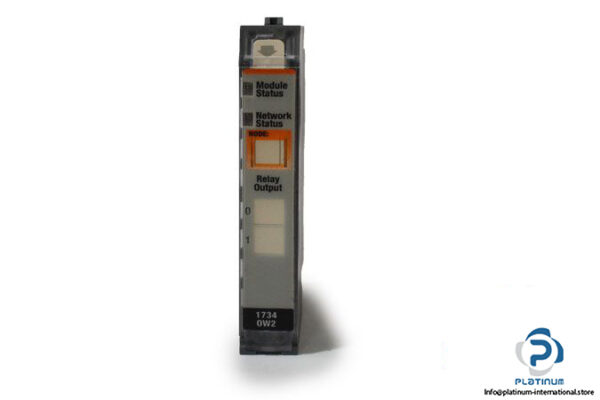

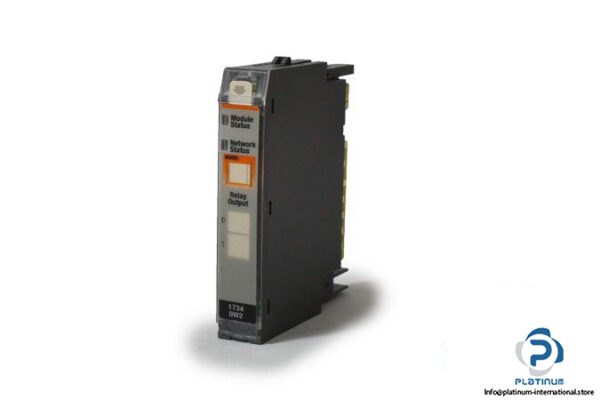

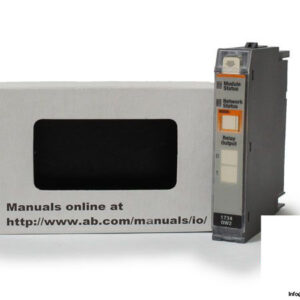

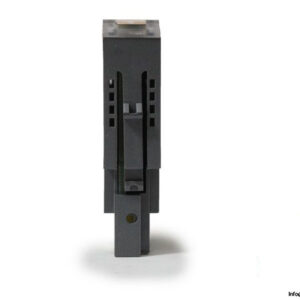

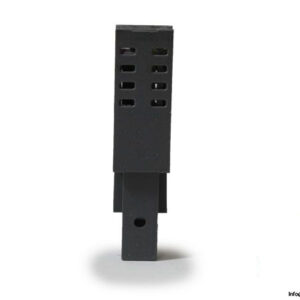

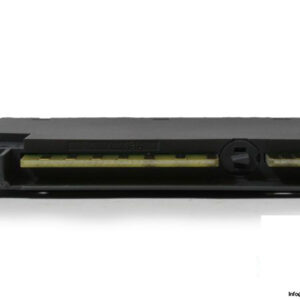

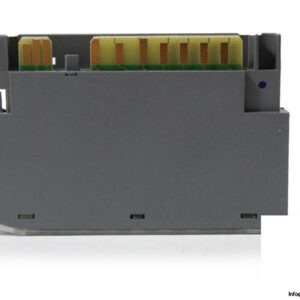

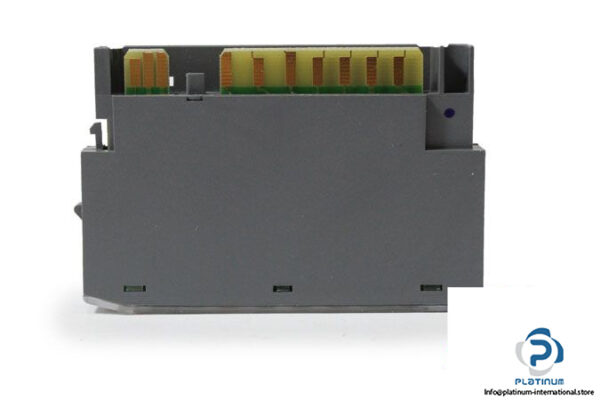

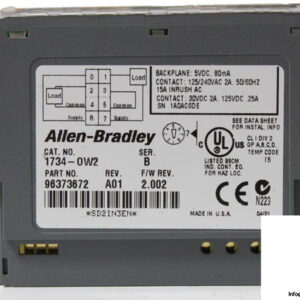

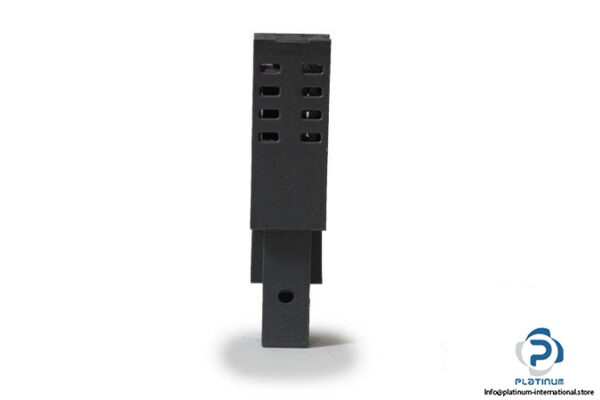

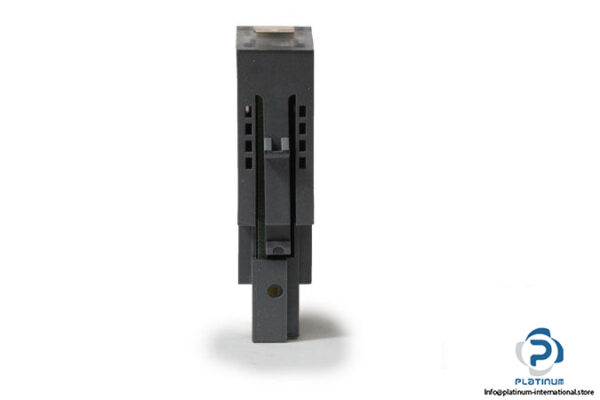

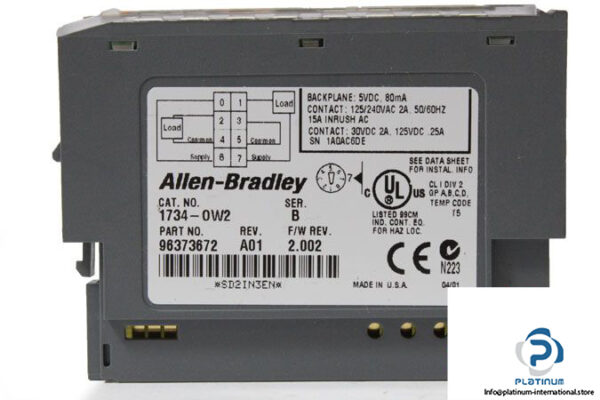

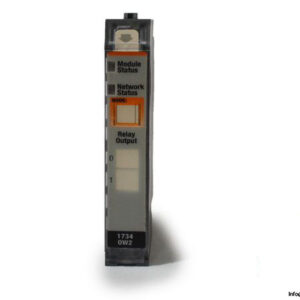

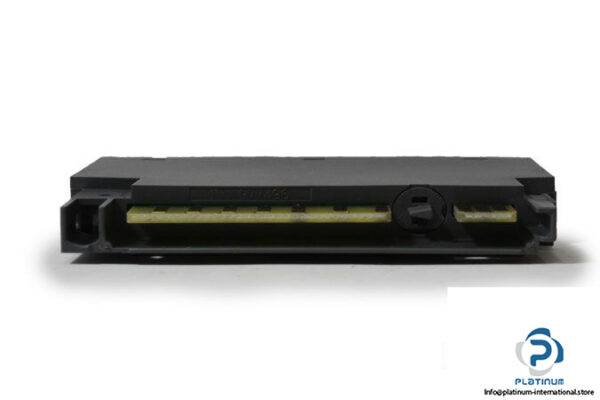

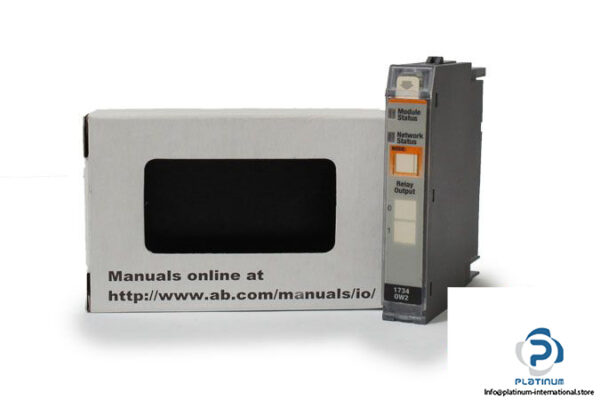

ALLEN-BRADLEY 1734-OW2 POINT I/O 2 AND 4 RELAY OUTPUT MODULE

Manufacturer: Allen-Bradley

Type: Relay Output Module

Model: 1734-OW2

Part No: 96373672

Backplane Power: 5V DC, 80 mA

Power Consumption: 0.8 W

Power Dissipation, Max: 0.5 W

Outputs Per Module: 2 Form A Isolated (Normally Open) Electromechanical Relays

Off-State Leakage Current, Max: 1.2 mA @ 240V AC, and bleed Resistor Through Snubber Circuit

Terminal Base Screw Torque: Determined by the installed terminal block

Wiring Category: 1 – on signal ports

Wire Size: 0.25…2.5 mm² (22…14 AWG) solid or stranded copper wire rated at 85 ° C (185 ° F), or greater, 1.2 mm (3/64 in.) insulation max

Vibration: 10…500 Hz

Operating Temperature: -20…55 °C

Dimensions: 75 X 11 X 56 mm

Weight: 45 g
