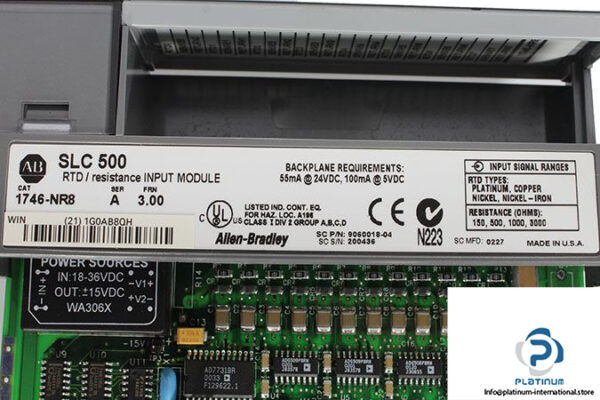

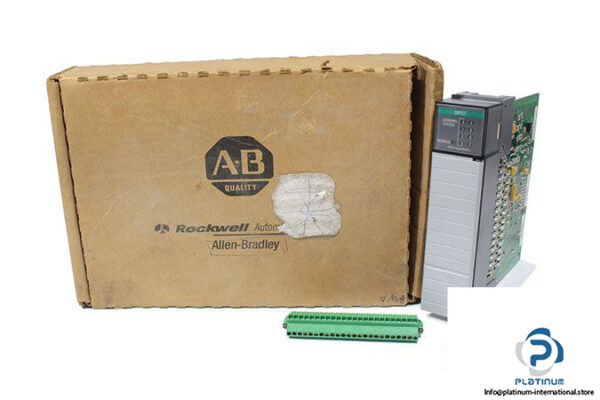

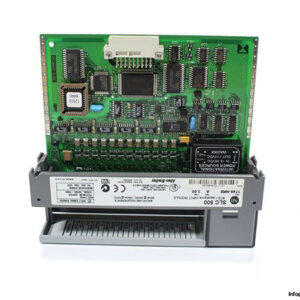

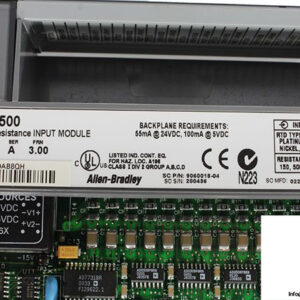

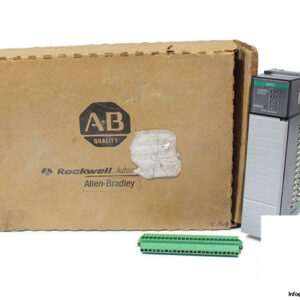

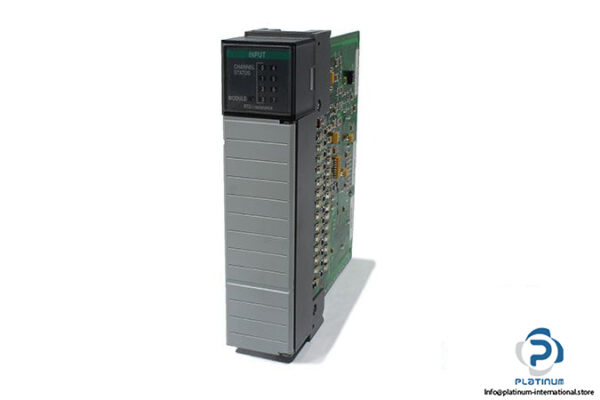

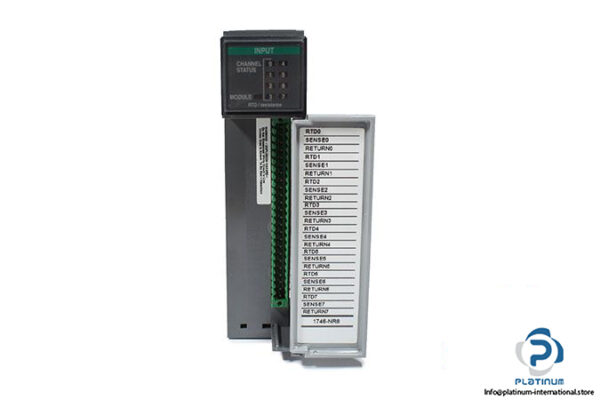

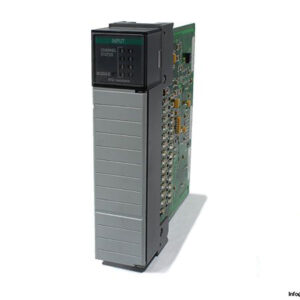

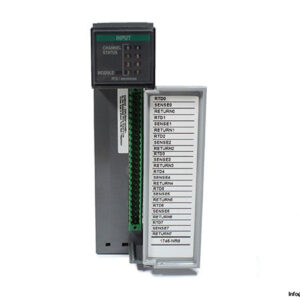

Manufacturer: Allen-Bradley

Type: Rtd/Resistance Analog Input Module

Model: 1746-NR8

Family: SLC 500

Backplane Current at 5 V, 24 V: 100 mA, 55 mA

Number of Inputs: 8

Power Consumption: 1.82 W

Open-Circuit or Short-Circuit Detection: Zero, upscale or downscale

Max. Cable Impedance: 25 Ω maximum per 308.4 m (1000 ft)

Calibration: Autocalibration at powerup and user-enabled periodic calibration

Isolation Voltage, Channel-To-Channel: ±5V

Dimensions: 34 X 130 X 140 mm
