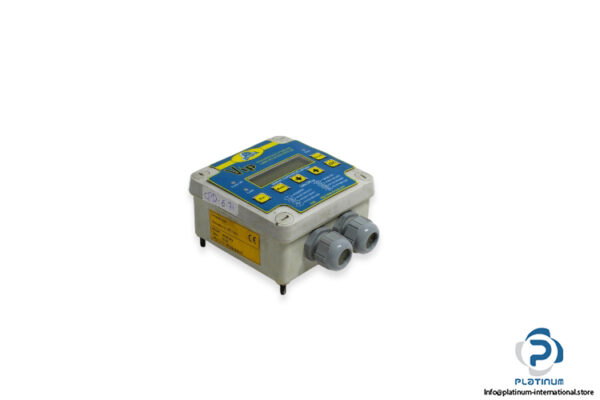

DROPSA VIP5 ADVANCED MULTI-PURPOSE LUBRICATION CONTROLLER

Manufacturer: Dropsa

Type: Advanced Multi-Purpose Lubrication Controller

Model: VIP5

Part No.: 1639142



APPLI CATIONS:

– Simple On/Off Lubrication Systems

– Single Line Injector Or Progressive Systems

– Dual Line Systems

– Simple Flow Display And Monitoring System

Power supply voltage: 110 V AC

Input current: 4 … 20 mA

Input voltage: 0 … 10 V

Frequency: 50 … 60 Hz

Operating Modes: 3 (Cycle, Pulse And Flow)

Connection: NPN, PNP

Relay contact: N.O. and N.C

Dimensions: 115.5 x 60 x 143 mm
