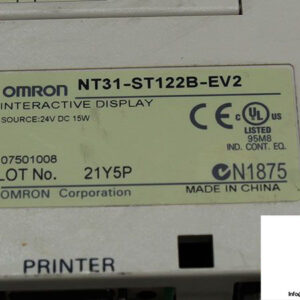

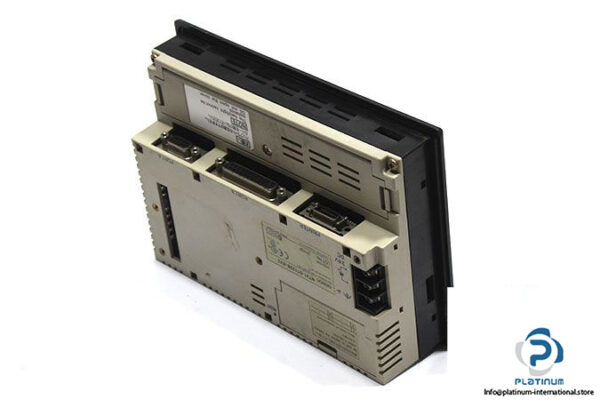

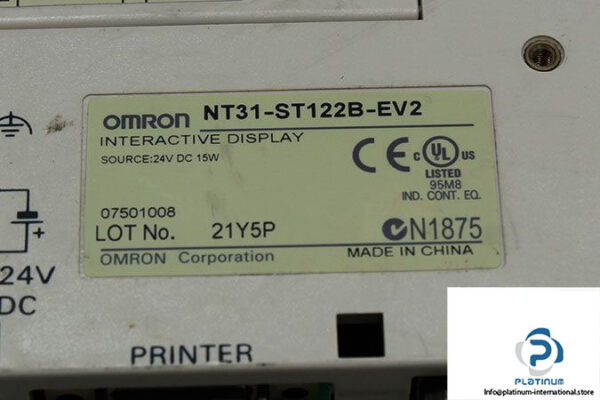

Manufacturer: Omron

Type: Interactive Display

Model: NT31-ST122B-EV2

Rated Power Supply Voltage: 24 VDC

Allowable Power Supply Voltage Range: 20.4 VDC to 26.4 VDC (24 VDC –15% to +10%)

Max. Power Consumption: 15 W

Display Device: Monochrome STN LCD (with backlight)

Number of Dots (resolution): 320 Dots Horizontally X 240 Dots Vertically

Effective Display Area: 118.2 mm Horizontally X 89.4 mm Vertically (5.7 inches)

Ambient Temperature: 0…50 °C

Dimensions: 195 x 142 x 54 mm

Protection Class: IP65

Weight: 0.765 kg
