CET LFM 50 Digital Frequency Meter
CET LFM50 Digital Frequency Meter Industrial-grade digital frequency meter with programmable time base, 5-digit display, and IP65 protection. Compatible with electromechanical contacts, amplified proximity sensors, and encoders.
CET LFM50 Digital Frequency Meter
The CET LFM50 is a high-precision digital frequency meter designed for industrial applications. It offers accurate frequency measurement with programmable time bases and supports multiple input types, including electromechanical contacts, amplified proximity sensors, and encoders.
Key Details:
Manufacturer: CET
Type: Digital Frequency Meter
Model: LFM50
With its robust design and high accuracy, the CET LFM50 is ideal for industrial environments requiring precise frequency monitoring and totalization.

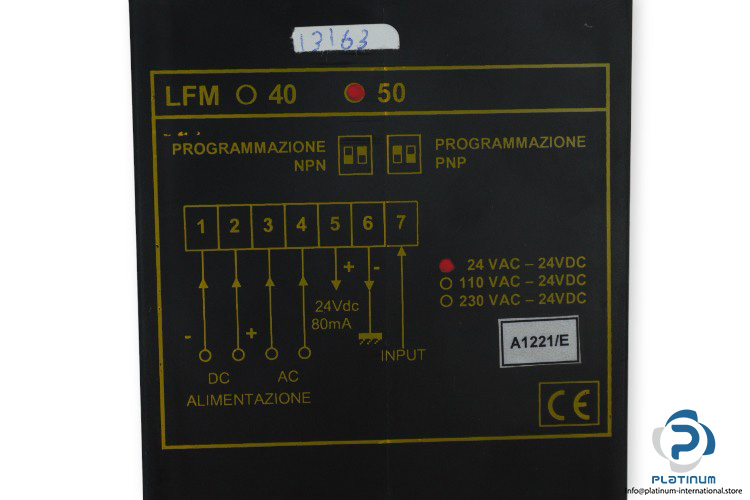

| Rated Supply Voltage | 24 V AC/DC |
| Power | 2 W, 3 VA |
| Auxiliary Input Supply | 24 V DC - 80 mA |

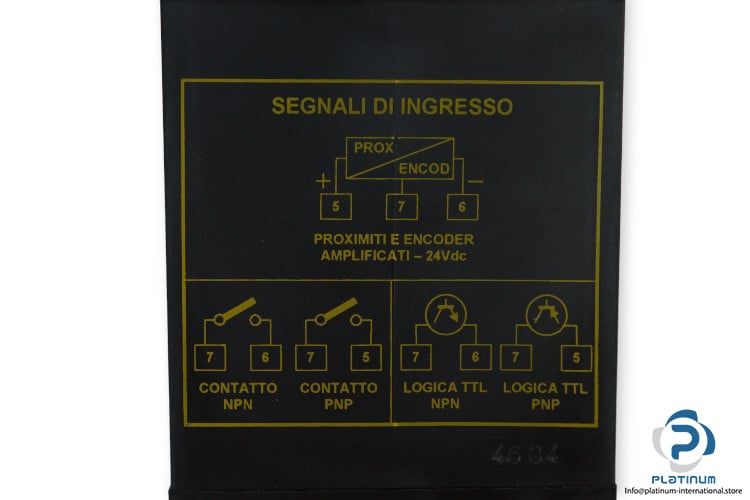

| Input Type | Suitable for electromechanical contacts, amplified proximity sensors, and encoders (NPN and PNP) |
| Time Base | Programmable between 1 / 60 / 3600 |

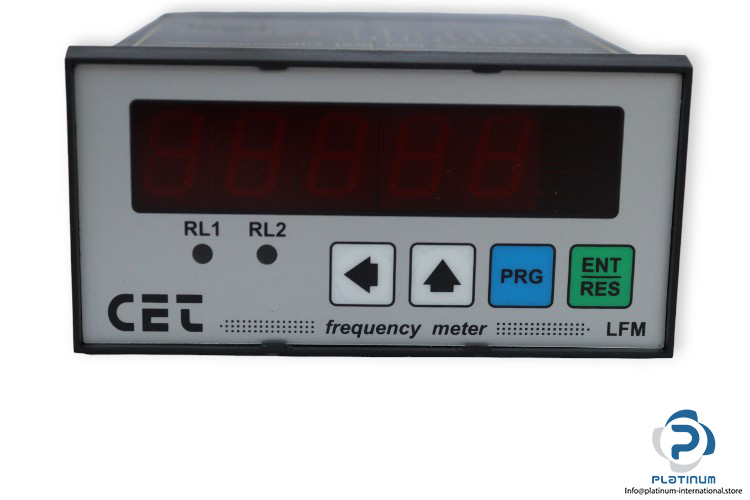

| Counter and Totalizer Visualization | 5 digits, display height 14 mm |
| Protection Class | IP65 |
| Operating Temperature | -5 to 55 °C |
| Dimensions | 96 x 48 x 115 mm |
