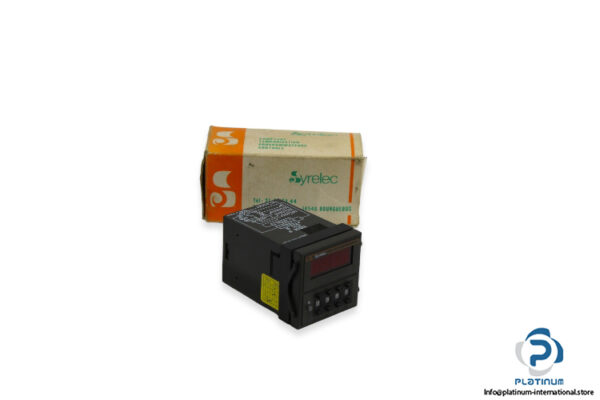

SYRELEC 11014 P UP/DOWN COUNTER

Manufacturer: Syrelec

Type: Up/Down Counter

Model: 11014 P

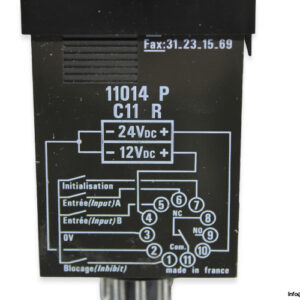

No. of pins: 11 pin plug-in

Led display digit: 4 red digits

Supply voltage: 12/24 V DC

Power consumption: 1.2 W (max) for 12 V DC, 2.4 W (max) for 24 V DC

Memory: 10 Years By EEPROM back-up of the count value

INPUT

Voltage: 0 … 1 V (low level), 4 … 30 V (high level)

Frequency: In IND mode 5 kHz (total) , in phase mode 1.2 kHz (max), In DIR mode 5 kHz (max)

RESET & LATCH

Voltage: 0 … 1 V (low level), 4 … 30 V (high level)

Contact: NPN

OUTPUT

Relay output: 3 A /250 V AC

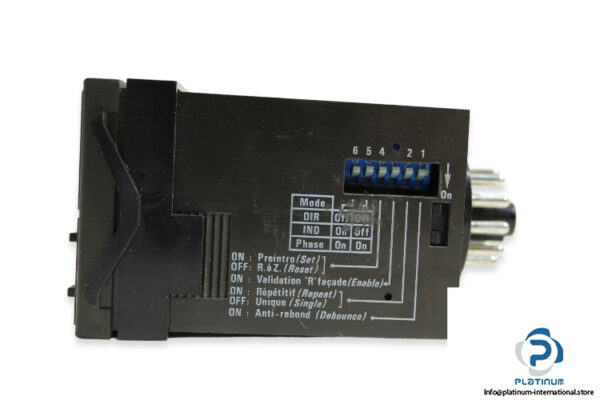

Programming: 6 dip switches selection (Repeat cycle, single cycle)

Degree of protection: IP20

Operation temperature: 0 … 50 °C

Dimensions: 48 x 48 x 79 mm
