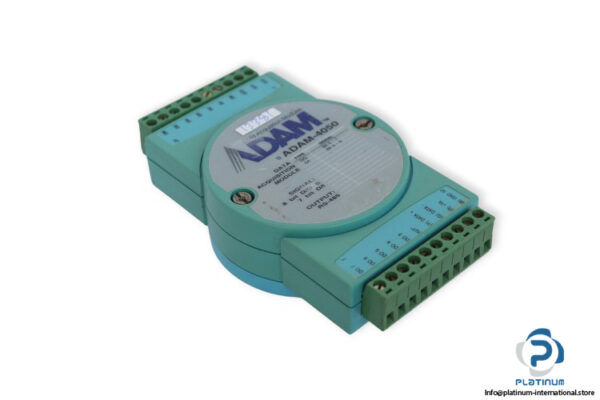

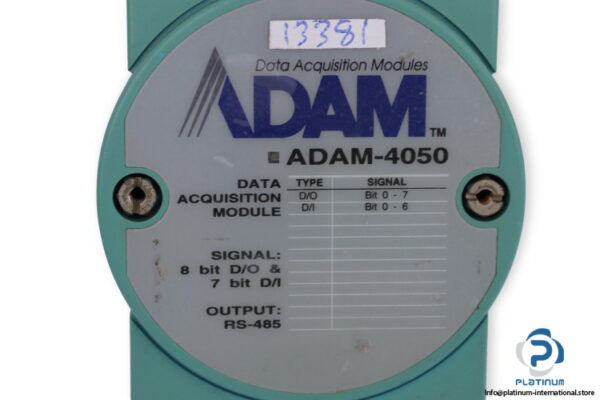

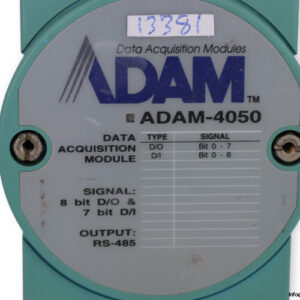

ADAM ADAM-4050 DIGITAL INPUT / OUTPUT MODULE

Manufacturer: ADAM
Type: Digital Input / Output Module
Model: ADAM4050

Series: ADAM 4000
Description: 15-Channel Digital I/O Module
Rated Input Ratings: 10 … 30 V DC, 0.5 mA
Rated Output Ratings: 0 … 30 V DC, 30 mA
Power Consumption: 0.2 / 0.4 W
No. of Digital Input Channels (DI): 7
No. of Digital Outputs Channels (DO): 8
Interface: RS-485
Supported Protocols: ASCII command, Modbus / RTU
Connection: 2 x 10-Pin Plug-In Screw Terminal
Material: ABS + PC
Temperature: -10 … 70 °C
Dimensions: 70 x 122 x 30 mm
