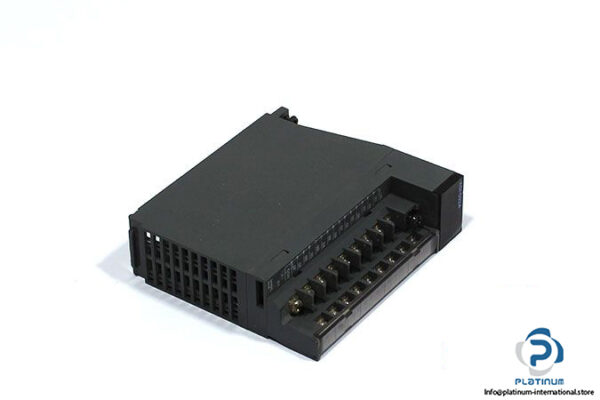

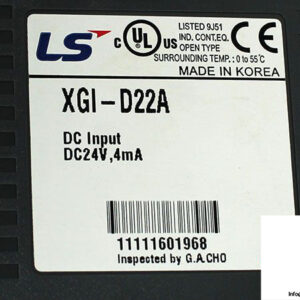

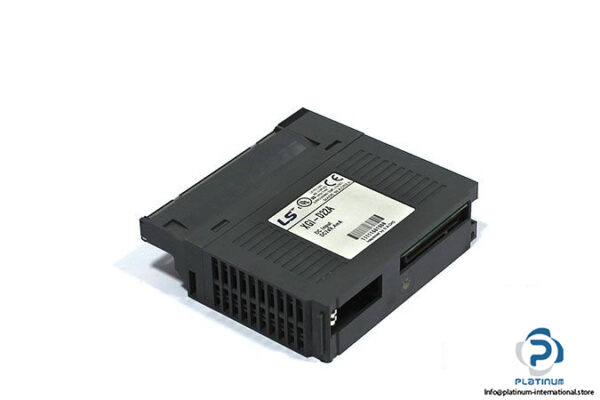

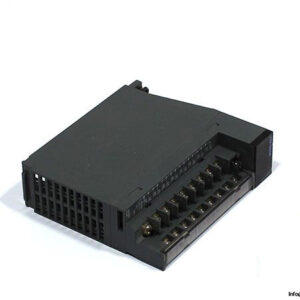

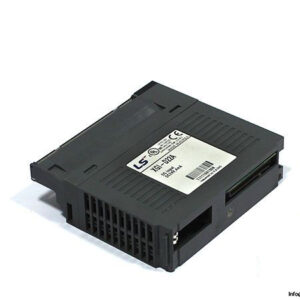

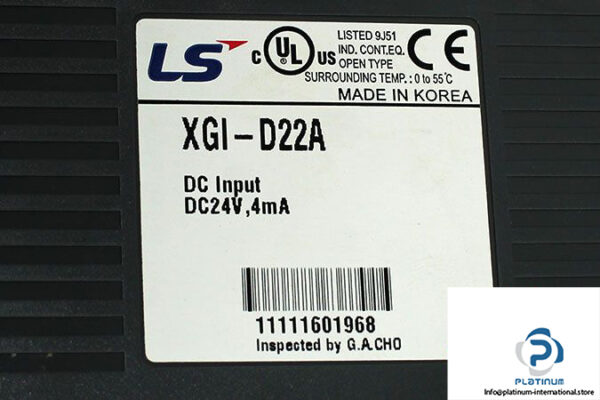

LS XGI-D22A DIGITAL INPUT MODULE

Manufacturer: LS

Type: Digital Input Module

Model: XGI-D22A

Rated Input Voltage: 24 VDC

Rated Input Current: 4 mA

Input Resistance: 5.6 kΩ

Current Consumption: 30 mA

External Connection Method: 18 Point Terminal Strip Connector (M3 X 6 Screws)

Operation Display: LED On with Input On

Input Point: 16 Points

Insulation Method: Photo Coupler Insulation

Dimensions: 90 x 98 x 26 mm

Weight: 0.10 kg
