Description

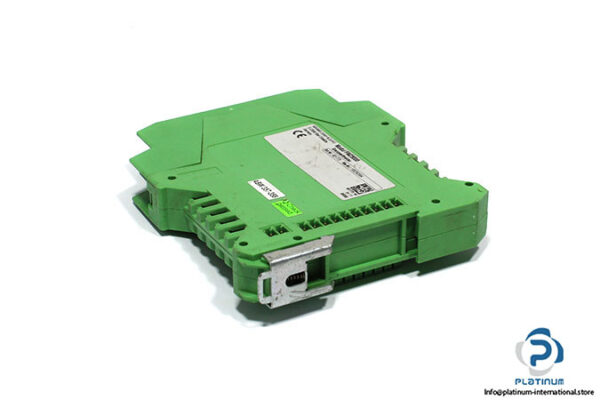

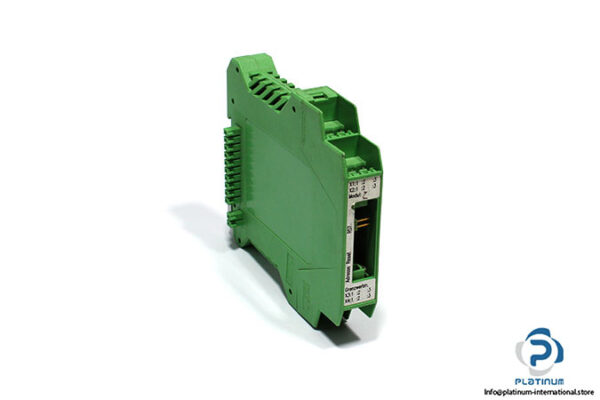

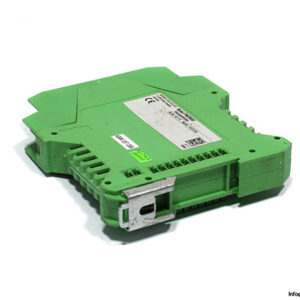

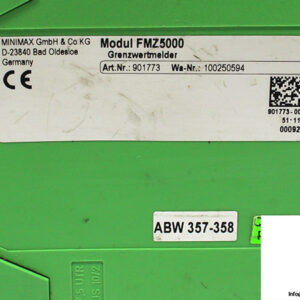

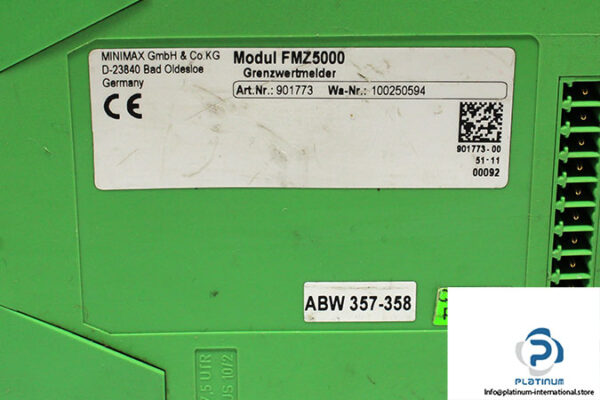

MINIMAX FMZ 5000 Conventional Detector Module
The MINIMAX FMZ 5000 is a reliable and compact conventional detector module designed for professional fire detection systems. Engineered with durable materials and DIN rail mounting compatibility, it supports stable operation across a wide voltage range and varying current loads.
Manufacturer: MINIMAX
Type: Conventional Detector Module
Model: FMZ 5000
Art. No.: 901773
Technical Data:
- Operating Voltage: 19 to 29V DC
- Current: 2 mA “ 50 mA DC
- Line Voltage: 9 V “ 20 V DC
- Alarm Current: 5 mA “ 80 mA DC
- Ambient Temperature: -5 °C to +40 °C
- Protection Class: IP20
- Housing: Polyamide PA6.6
- Mounting: Rail 35 DIN 46277
- Dimensions: 115 x 100 x 17.5 mm
