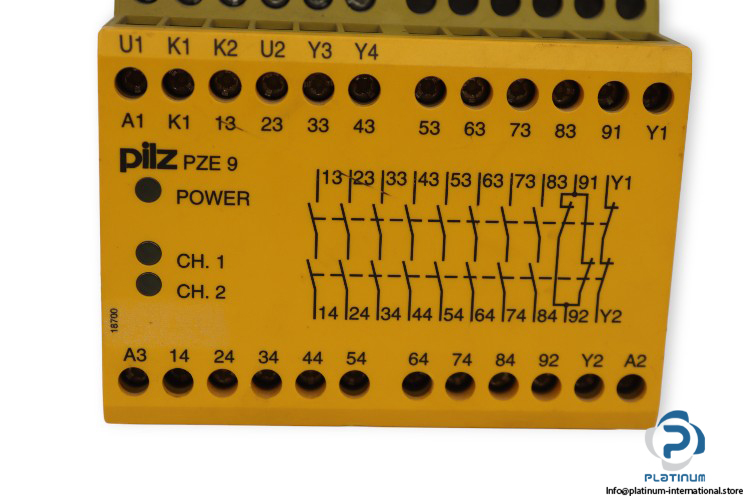

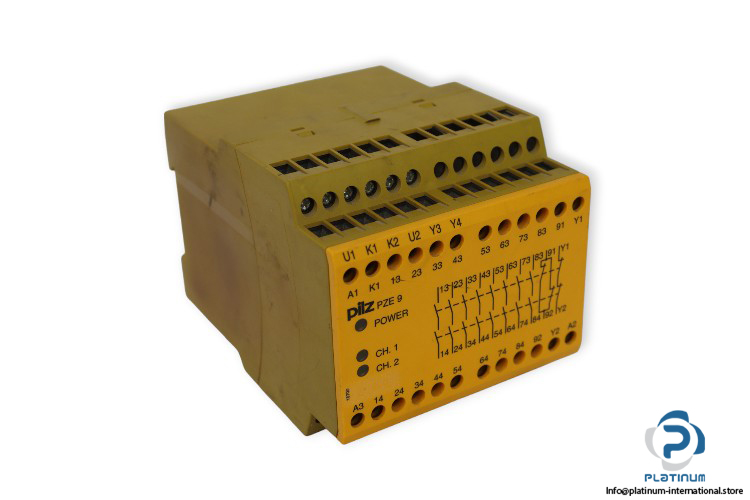

Pilz PZE 9 24VDC 8N/O 1N/C Contact Expansion Module
Used
Manufacturer: Pilz
Type: Contact expansion module
Model: PZE924VDC8N/O1N/C

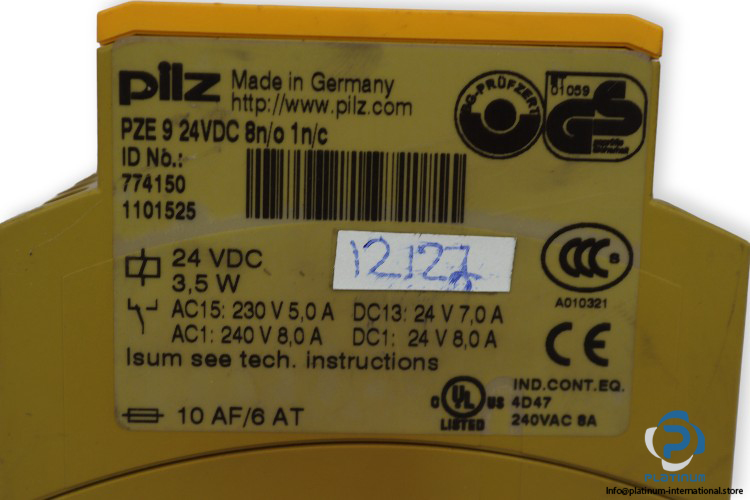

ID No.: 774150 1101525
Supply Voltage: 24 V DC
Power Consumption: 3.5 W
Number of inputs: 2
Contact Configuration: 8 NO, 1 NC
Contact Rating: 230 V AC,5 A/ 240 V AC,8 A/ 24 V DC, 7/8 A
Fuse: 10 AF/6 AT
Connection Terminal: Screw Terminal
Standards: EN 60204-1;EN 62061;EN ISO 13849-1;VDE 0113-1
Terminal Style: Fixed
Type of electric plug connection: Screw connection
Operating Temperature: -10 … 55 °C
Dimensions: 87 X 90 X 121 mm
