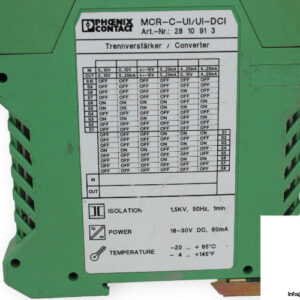

PHOENIX CONTACT MCR-C-UI/UI-DCI SIGNAL CONDITIONER
Availability: 1 in stock
Manufacture: Phoenix Contact
Type: Signal Conditioner
Model: MCRCUIUIDCI
Art No.: 28 10 91 3
Manufacture: Phoenix Contact
Type: Signal Conditioner
Model: MCRCUIUIDCI
Art No.: 28 10 91 3
Supply Voltage Range: 18 … 30 V DC
Max. Current Consumption: 60 Ma
Maximum power dissipation for nominal condition: 900 mW
Analog Input/Output: 0/4 … 20 mA, 0 … 10 V
Degree of protection: IP20
Number of Channels: 1 Channel
Connection Method: Pluggable screw connection
Housing Material: Polyamide PA non-reinforced
Mounting Type: DIN rail mounting
Ambient Temperature: -20 … 65 °C
Dimensions: 114,5 x 99 x 17,5 mm
| Weight | 0,11 kg |
|---|---|
| Condition | Used |
| Manufacturer | Phoenix Contact |
| Type of Product | Signal Conditioner |
| Shelf No. | 240420 |
| Model | MCR-C-UI/UI-DCI |
| Art No. | 28 10 91 3 |
| Nominal Voltage [DC] | 24 V |
| Dimensions [mm] | 114,5 x 99 x 17,5 |
